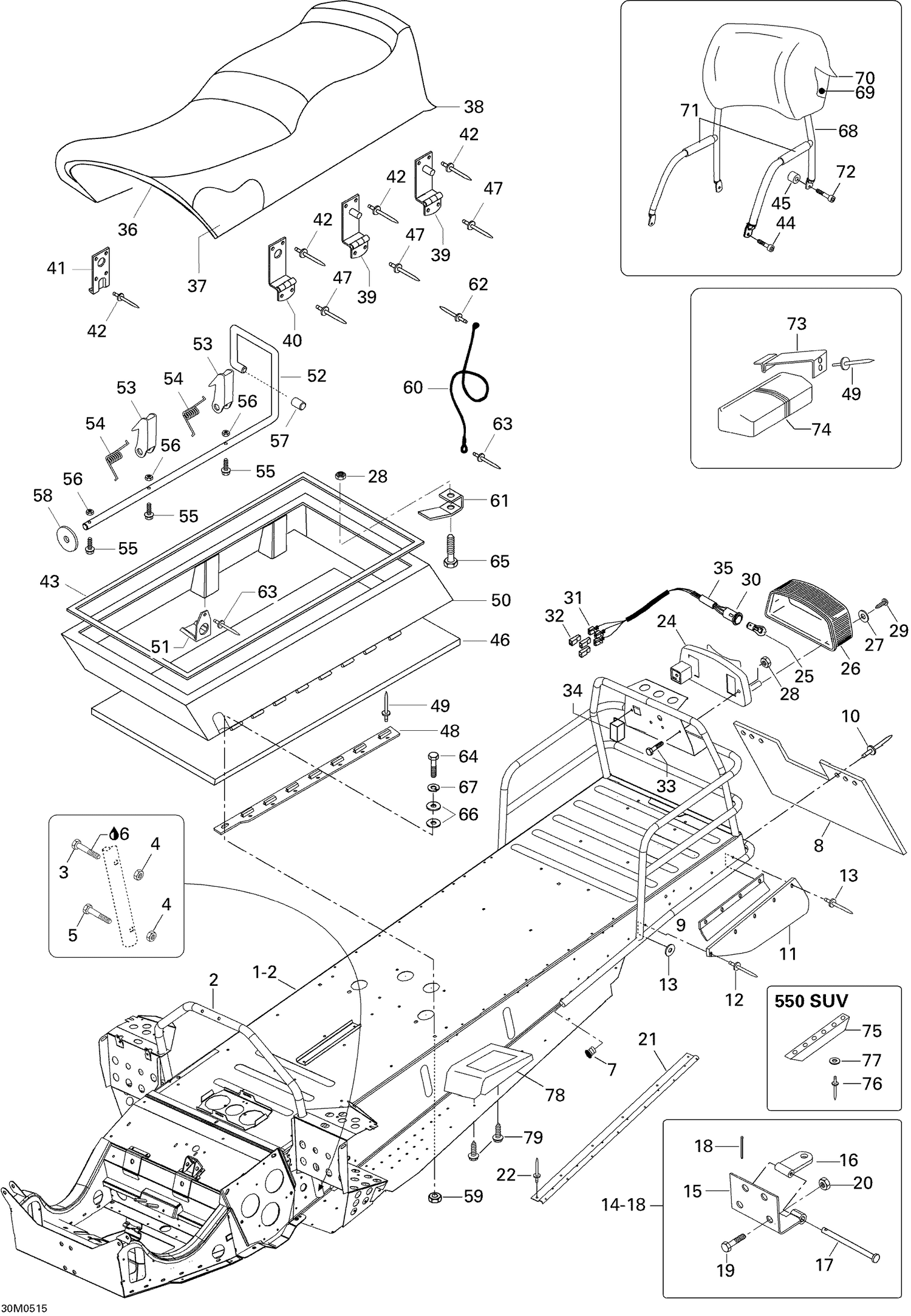

| Ref | Part Number | Description |
|---|
| 2 |
605150258 |
HANDLE SUPPORT - Call your local BRP dealership |
| 3 |
207063044 |
Hex. Screw M6 X 30 |
| 4 |
232061414 |
Hex. Nut M6 |
| 5 |
207064044 |
Hex. Screw M6 X 40 |
| 6 |
293800060 |
Loctite 243, 10 ml |
| 7 |
M28136 |
PLUG - Call your local BRP dealership |
| 8 |
538629 |
Snow guard This part replaces M538629. |
| 9 |
M5340532 |
Support |
| 10 |
M36036 |
Black, Rivet |
| 11 |
5142828 |
Side Snowguard This part replaces M5142828. |
| 12 |
M36097 |
RIVET - Call your local BRP dealership |
| 13 |
20037 |
Washer This part replaces M20037. |
| 15 |
5344151 |
Fitting Plate This part replaces M5344151. |
| 16 |
548745 |
TONGUE WELD - Call your local BRP dealership This part replaces M548745. |
| 17 |
560309200 |
PIN-RETAINER - Call your local BRP dealership |
| 18 |
41031 |
Cotter Pin This part replaces M41031. |
| 19 |
40336 |
HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336. |
| 20 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 21 |
605348881 |
ANTISLIPERRY RUNNING BAND - Call your local BRP dealership |
| 22 |
M36010 |
Rivet |
| 24 |
510004061 |
LIGHT HOUSING - Call your local BRP dealership |
| 25 |
520000758 |
Bulb This part replaces 410504100. |
| 26 |
414513700 |
Lens |
| 27 |
414516400 |
Washer - Call your local BRP dealership |
| 28 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
| 29 |
209632540 |
Phillips Tapping Screw M3.9 X 25 This part replaces 414516300. |
| 30 |
515175852 |
Adapter |
| 31 |
409010600 |
FEMALE TERMINAL - Call your local BRP dealership This part replaces M42178. |
| 32 |
409010400 |
Female Terminal Housing, 1 Circuit This part replaces M42179. |
| 33 |
207063044 |
Hex. Screw M6 X 30 |
| 34 |
M5345713 |
Adaptor |
| 35 |
M39023 |
Housing |
| 36 |
M519394 |
Sub Seat |
| 37 |
605148623 |
Foam Seat |
| 38 |
605153063 |
COVER - Call your local BRP dealership This part replaces 605149043. |
| 39 |
M549874 |
HINGE - Call your local BRP dealership |
| 40 |
M5440581 |
HINGE - Call your local BRP dealership |
| 41 |
M549732 |
Lock Plate |
| 42 |
M36071 |
Rivet |
| 43 |
M5440059 |
SEALING STRIP PROFIL - Call your local BRP dealership |
| 44 |
M40388 |
SCREW-SOCKET - Call your local BRP dealership |
| 45 |
M5440665 |
Spacer |
| 47 |
M36489 |
Rivet |
| 48 |
M5144028 |
LH Support |
| 48 |
M5144029 |
RH Support |
| 49 |
36108 |
Rivet This part replaces M36083. |
| 50 |
M5142066 |
Welded Seat Base Weld |
| 51 |
M5443661 |
Support |
| 52 |
M5344987 |
Pivot Pin |
| 53 |
605451589 |
CAM LOCK - Call your local BRP dealership |
| 54 |
M5444439 |
SPRING - Call your local BRP dealership |
| 55 |
M40144 |
Screw M4 X 16 |
| 56 |
232541414 |
Elastic Stop Nut M4 |
| 57 |
M28019 |
Cap |
| 58 |
234081410 |
Flat Washer 8 mm |
| 59 |
M33066 |
NUT M6 - Call your local BRP dealership |
| 61 |
XXX |
Not Available As Spare Parts |
| 62 |
M36038 |
Rivet |
| 64 |
M40052 |
Socket Head Screw M6 X 20 |
| 65 |
XXX |
Not Available As Spare Parts |
| 66 |
234062410 |
Flat Washer 6 mm This part replaces M20009. |
| 67 |
234161471 |
Lock Washer M6, Black |
| 68 |
M5245664 |
Backrest |
| 69 |
M539399 |
Backrest Foam |
| 70 |
5340917 |
COVER-BACKREST - Call your local BRP dealership This part replaces M5340917. |
| 71 |
415050300 |
RH Grip, 250 mm |
| 72 |
M40389 |
Allen Screw |
| 73 |
M5344443 |
SPRING-HOLDER - Call your local BRP dealership |
| 74 |
605350525 |
TOOL KIT - Call your local BRP dealership This part replaces 605350523. |
| 75 |
XXX |
Not Available As Spare Parts |
| 76 |
XXX |
Not Available As Spare Parts |
| 77 |
XXX |
Not Available As Spare Parts |
