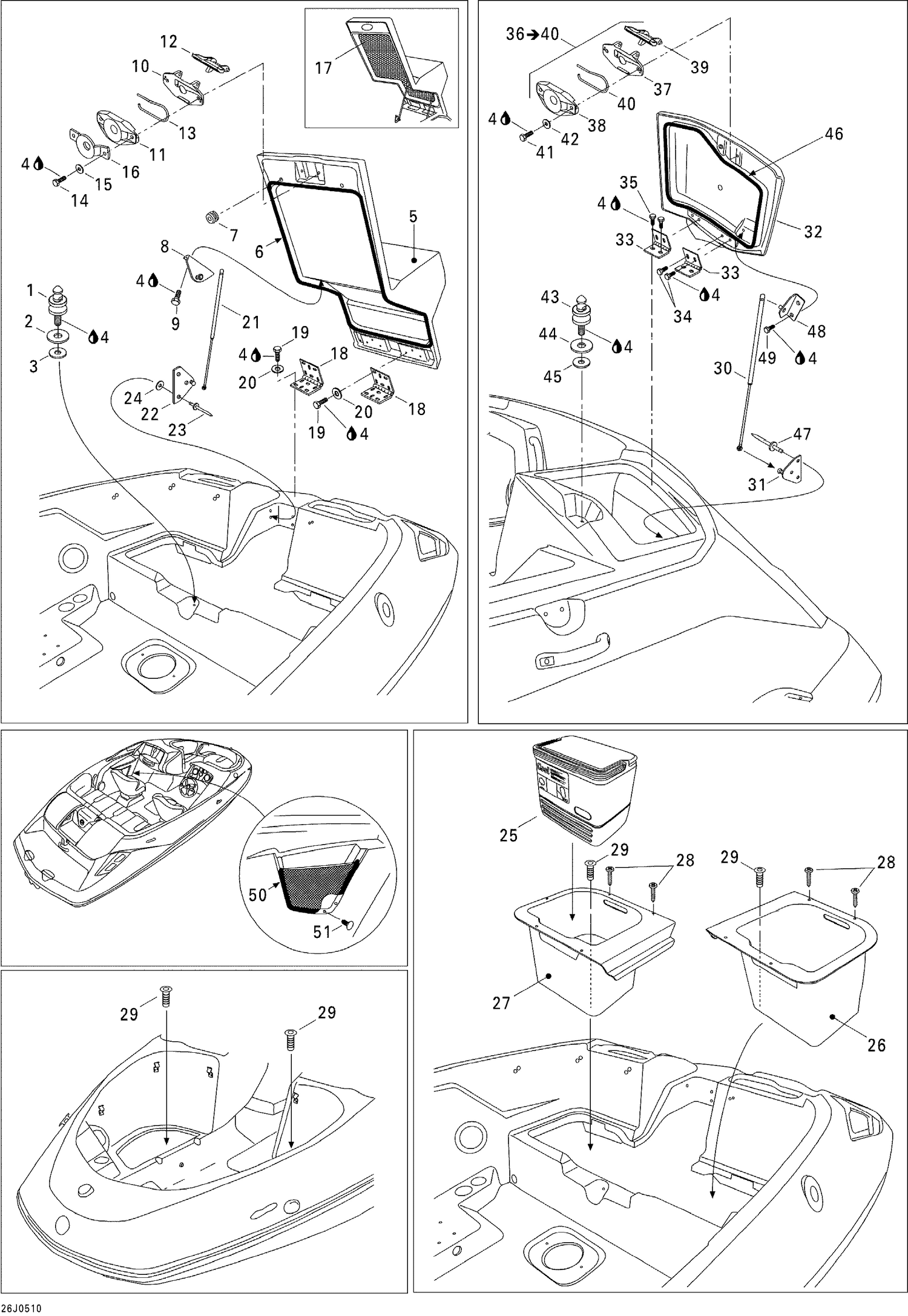

| Ref | Part Number | Description |
|---|
| 1 |
291001420 |
Latch Stud |
| 2 |
234002600 |
Flat Washer 10 mm, Stainless |
| 3 |
291000628 |
RUBBER WASHER - Call your local BRP dealership |
| 4 |
293800060 |
Loctite 243, 10 ml |
| 5 |
204072246 |
Engine Cover |
| 6 |
219704365 |
Was 293200017 Neoprene Seal |
| 7 |
293720017 |
GROMMET - Call your local BRP dealership |
| 8 |
204071699 |
Angled Shock Bracket |
| 9 |
207151660 |
HEX. SCREW M5 X 16 - Call your local BRP dealership |
| 10 |
269700109 |
Latch Ass'y This part replaces 269700076. |
| 11 |
269700109 |
Latch Ass'y This part replaces 269000015. |
| 12 |
269700109 |
Latch Ass'y This part replaces 269700077. |
| 13 |
269700017 |
Latch Spring |
| 14 |
207162560 |
Hex. Screw M6 X 25 |
| 15 |
234061600 |
Stainless Flat Washer M6 |
| 16 |
204070952 |
LATCH PROTECTOR - Call your local BRP dealership |
| 17 |
291003867 |
FOAM - ACOUSTIC - Call your local BRP dealership This part replaces 204072083. |
| 18 |
204070127 |
HINGE ASS'Y - Call your local BRP dealership |
| 19 |
207162560 |
Hex. Screw M6 X 25 |
| 20 |
234061600 |
Stainless Flat Washer M6 |
| 21 |
204071959 |
GAS SHOCK - Call your local BRP dealership |
| 22 |
204071673 |
Shock Bracket |
| 23 |
293150201 |
RIVET_POP 3/16 - Call your local BRP dealership This part replaces 204130014. |
| 24 |
234051600 |
Flat Washer M5, Stainless |
| 28 |
204100049 |
PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership |
| 29 |
204071783 |
DRAIN FITTING - Call your local BRP dealership |
| 30 |
204072218 |
GAS SHOCK - Call your local BRP dealership |
| 31 |
204072219 |
RH SHOCK BRACKET - Call your local BRP dealership |
| 31 |
204072220 |
LH SHOCK BRACKET - Call your local BRP dealership |
| 33 |
204612769 |
SUNDECK HINGE - Call your local BRP dealership |
| 34 |
207161260 |
Hex. Cap Screw M6 X 12 |
| 35 |
207161660 |
Hex. Screw M6 X 16 |
| 37 |
269700109 |
Latch Ass'y This part replaces 269700076. |
| 38 |
269700109 |
Latch Ass'y This part replaces 269000015. |
| 39 |
269700109 |
Latch Ass'y This part replaces 269700077. |
| 40 |
269700017 |
Latch Spring |
| 41 |
207162560 |
Hex. Screw M6 X 25 |
| 42 |
234061600 |
Stainless Flat Washer M6 |
| 43 |
291001420 |
Latch Stud |
| 44 |
234002600 |
Flat Washer 10 mm, Stainless |
| 45 |
291000628 |
RUBBER WASHER - Call your local BRP dealership |
| 46 |
219704368 |
Seal Tray 1000Mm Long |
| 47 |
293150043 |
Pop Rivet 3/16" |
| 48 |
204071699 |
Angled Shock Bracket |
| 49 |
207151660 |
HEX. SCREW M5 X 16 - Call your local BRP dealership |
| 50 |
204072210 |
Storage Net |
