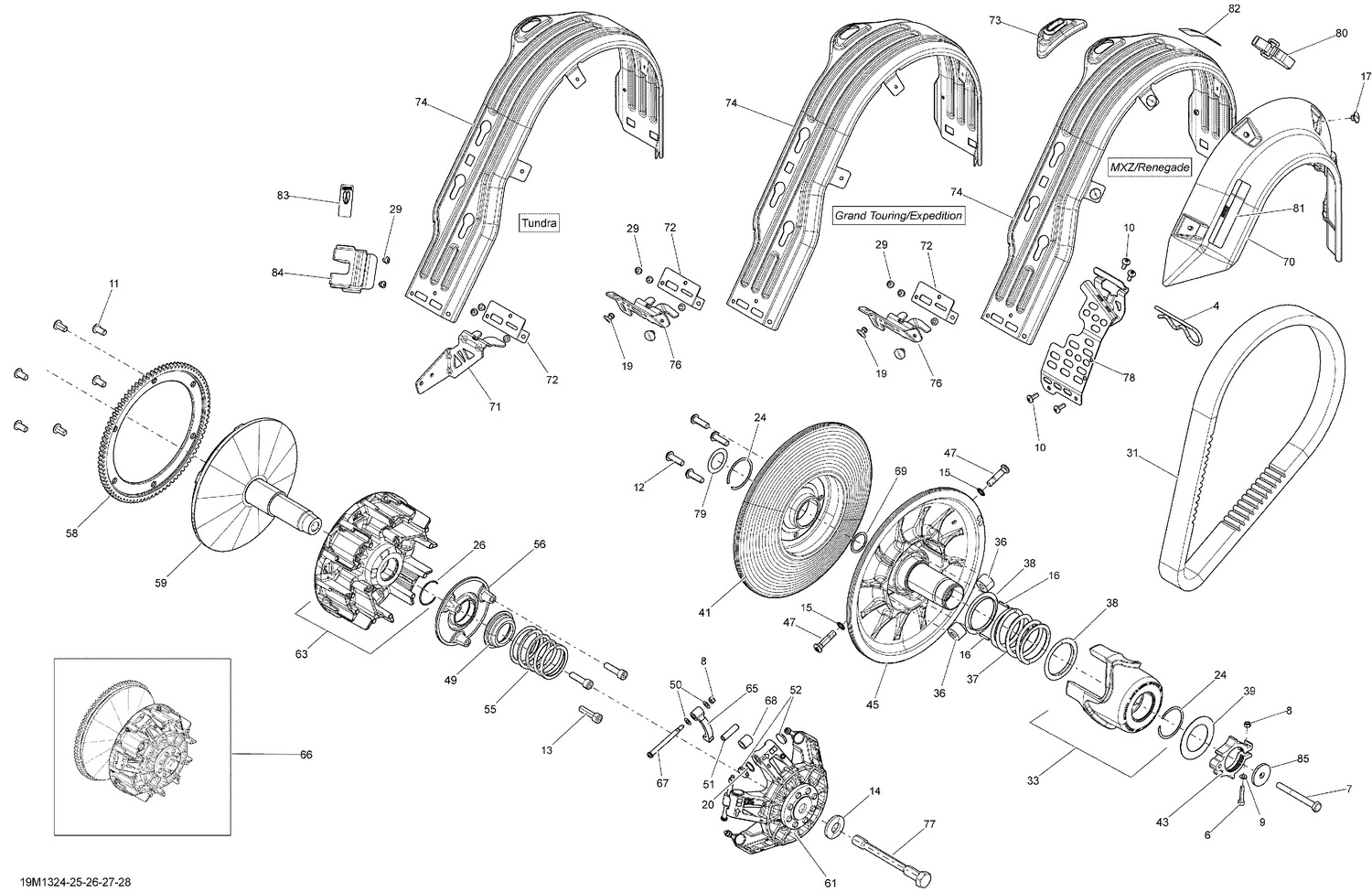

05- Pulley System
Parts (54)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 114045200 | Hair Pin |
| 6 | 205052544 | Socket Screw M5 X 25 |
| 7 | 207287544 | Hex. Cap Screw M8 X 75 |
| 8 | 232551414 | Elastic Stop Nut M5 |
| 9 | 234051410 | Flat Washer M5 |
| 10 | 250000742 | Torx Screw M5 X 14 This part replaces 250000145. |
| 11 | 250000751 | Torx Screw M8 X 16 This part replaces 250000243. |
| 12 | 250000283 | Torx Screw M8 X 25, Scotch Grip |
| 13 | 250000473 | SCREW-SOCKET HEAD S.GRIP - Call your local BRP dealership |
| 14 | 250200006 | Spring Washer 14 mm |
| 15 | 250200009 | Lock Washer 8 mm |
| 16 | 250400061 | Spring Pin M3 X 18 |
| 17 | 293150103 | Pop Rivet 3/16" |
| 19 | 293150104 | Pop Rivet 3/16" |
| 20 | 293300145 | O-ring |
| 24 | 293370049 | Circlip |
| 26 | 293370065 | Circlip |
| 29 | 390909200 | Avex Rivet |
| 31 | 414860700 | Drive Belt |
| 33 | 417127319 | Cam Ass'y This part replaces 417127109. |
| 36 | 417127016 | Pulley Roller |
| 37 | 417127061 | Spring |
| 38 | 417127116 | Swivel Abutment |
| 39 | 417127155 | Washer |
| 41 | 417127366 | Slider Flange Ass'y This part replaces 417127231. |
| 43 | 415129604 | Calibration Ass'y |
| 45 | 417127392 | Fixe Flange Ass'y This part replaces 417127334. |
| 47 | 417127259 | Pivot Stud |
| 49 | 417223155 | SPRING SEAT - Call your local BRP dealership |
| 50 | 417223255 | Thrust Washer |
| 51 | 417223257 | Roller Axle |
| 52 | 417223919 | Slider Shoe This part replaces 417223269. |
| 55 | 417223315 | Spring Clutch |
| 56 | 417223615 | Slider Adaptor Ass'y |
| 58 | 417223476 | Crown Gear Launch |
| 59 | 417223534 | Fixe Flange Ass'y |
| 61 | 417223778 | GOVERNOR CUP ASS'Y - Call your local BRP dealership This part replaces 417223565. |
| 63 | 417223606 | Slider Flange Ass'y |
| 65 | 417223605 | RAMP 730 - Call your local BRP dealership |
| 66 | Not | Available As Spare Part - Drive Pulley |
| 67 | 417223694 | Ramp Axle |
| 68 | 417223767 | Roller |
| 69 | 417300265 | Spacer |
| 70 | 417300356 | Side Protector |
| 71 | 417300374 | Front Belt Guard Bracket |
| 72 | 417300380 | Reinforcement |
| 73 | 417300381 | Guide |
| 74 | 417300382 | Belt Guard |
| 76 | 417300386 | Front Belt Guard Bracket |
| 77 | 417300407 | DRIVE BOLT PULLEY - Call your local BRP dealership |
| 78 | 417300448 | BELT GUARD BRACKET - Call your local BRP dealership This part replaces 417300446. |
| 79 | 504112000 | Shim |
| 81 | 516005503 | Decal English |
| 82 | 516005509 | Safety Belt Guard Decal |
