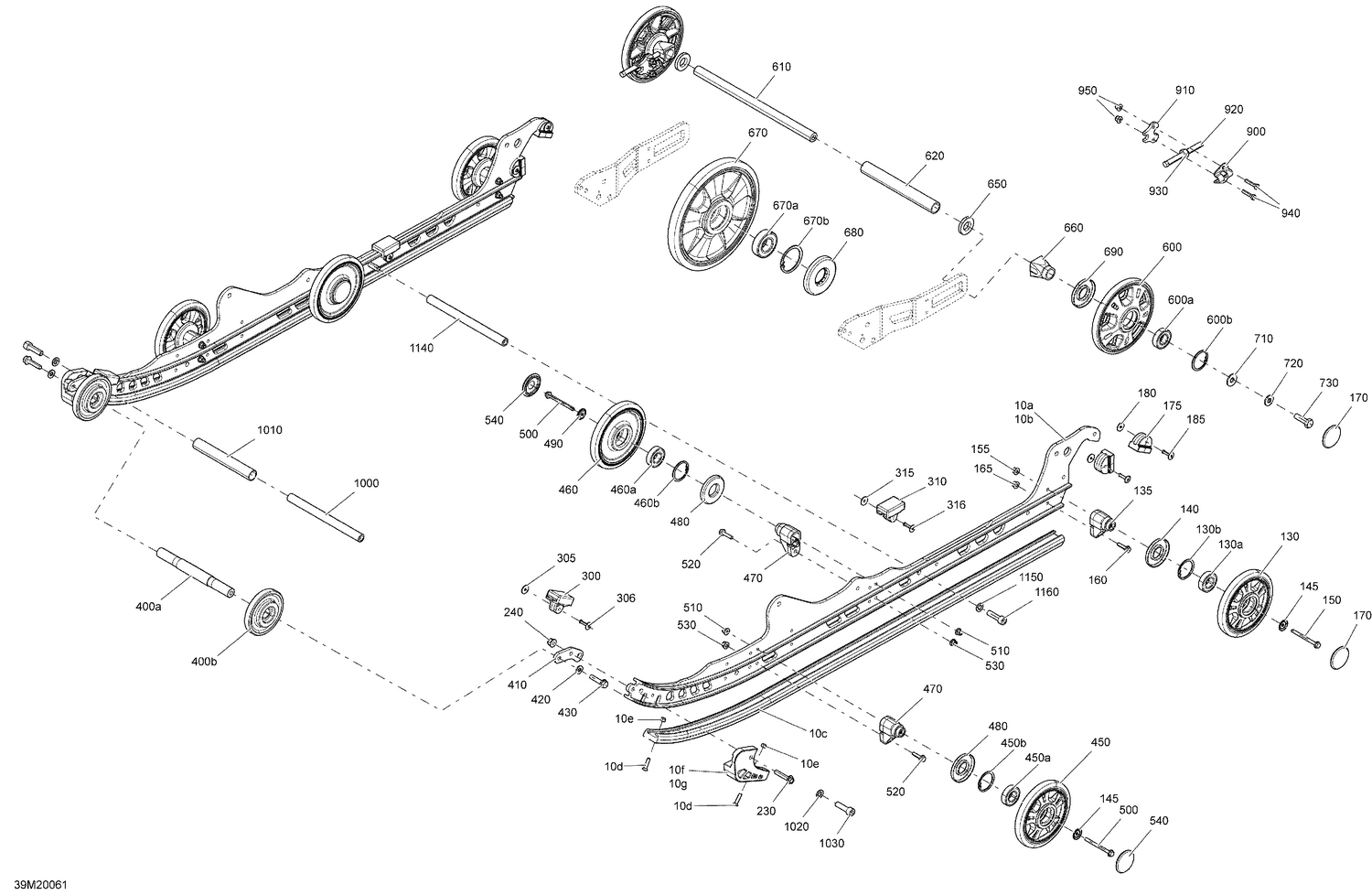

08- Suspension, Rear - Upper Section
Parts (69)
| Ref | Part Number | Description |
|---|---|---|
| 10b | 503193723 | Runner |
| 10c | 503192618 | Black Slider, 154" |
| 10d | 208562531 | Phillips Screw M6 X 25 |
| 10e | 232561414 | Elastic Stop Nut M6 |
| 10f | 503192609 | LH Protector |
| 10g | 503192610 | RH Protector |
| 130a | 503190396 | Ball Bearing |
| 130b | 415129371 | Retaining Ring |
| 135 | 503193894 | Casted Support |
| 140 | 503190434 | Labyrinth Seal |
| 145 | 503191820 | Wheel Cup M6 |
| 150 | 250000944 | Hex. Flange Screw M6 X 70 |
| 155 | 233261466 | Hex. Flange Elastic Nut M6 |
| 160 | 250000945 | Hex. Flange Screw M6 X 25 |
| 165 | 233261466 | Hex. Flange Elastic Nut M6 |
| 170 | 503192771 | Black, Wheel Cap |
| 175 | 503191291 | Rubber Stopper |
| 180 | 503191273 | Washer |
| 185 | 293150224 | Pop Rivet 3/16 |
| 230 | 207684044 | Hex. Flange Screw M8 X 40 |
| 240 | 233281466 | Elastic Flange Nut M8 |
| 300 | 503190576 | Rubber Stopper |
| 305 | 503191273 | Washer |
| 306 | 293150224 | Pop Rivet 3/16 |
| 310 | 503190576 | Rubber Stopper |
| 315 | 503191273 | Washer |
| 316 | 293150224 | Pop Rivet 3/16 |
| 400a | 503192644 | Front Wheel Axle |
| 400b | 503192611 | Black, Wheel Ass'y, 100 mm |
| 410 | 503192612 | Plate |
| 420 | 503192494 | Washer |
| 430 | 250000986 | Hex. Flange Screw M8 X 35 |
| 450a | 503190396 | Ball Bearing |
| 450b | 415129371 | Retaining Ring |
| 460a | 503190396 | Ball Bearing |
| 460b | 415129371 | Retaining Ring |
| 470 | 503193894 | Casted Support |
| 480 | 503190434 | Labyrinth Seal |
| 490 | 503191820 | Wheel Cup M6 |
| 500 | 250000944 | Hex. Flange Screw M6 X 70 |
| 510 | 233261466 | Hex. Flange Elastic Nut M6 |
| 520 | 250000945 | Hex. Flange Screw M6 X 25 |
| 530 | 233261466 | Hex. Flange Elastic Nut M6 |
| 540 | 503192771 | Black, Wheel Cap |
| 600a | 503190396 | Ball Bearing |
| 600b | 415129371 | Retaining Ring |
| 610 | 503190429 | Rear Axle |
| 620 | 503193052 | Spacer |
| 650 | 503190432 | Washer |
| 660 | 503190428 | Rear Wheel Spacer |
| 670a | 503190396 | Ball Bearing |
| 670b | 415129371 | Retaining Ring |
| 680 | 503190682 | Labyrinth Seal |
| 690 | 503190434 | Labyrinth Seal |
| 710 | 503191910 | Washer |
| 720 | 234201474 | Conical Spring Washer 10 mm |
| 730 | 250000817 | Hex Screw With Nilon Patch, M10 X 35 |
| 900 | 503192583 | Tensioner |
| 910 | 503193250 | Spacer |
| 920 | 230100054 | Hex Screw M10 x 100 |
| 930 | 233601466 | Elastic Locking Nut M10 |
| 940 | 207063054 | Hex. Cap Screw M6 X 30 |
| 950 | 233261466 | Hex. Flange Elastic Nut M6 |
| 1000 | 503192613 | Axle Strap |
| 1010 | 503196943 | Spacer This part replaces 503192678. |
| 1020 | 503192496 | Washer |
| 1030 | 205503554 | Socket Head Screw M10 X 35 |
| 1140 | 503191260 | Axle Strap |
| 1150 | 503192496 | Washer |
