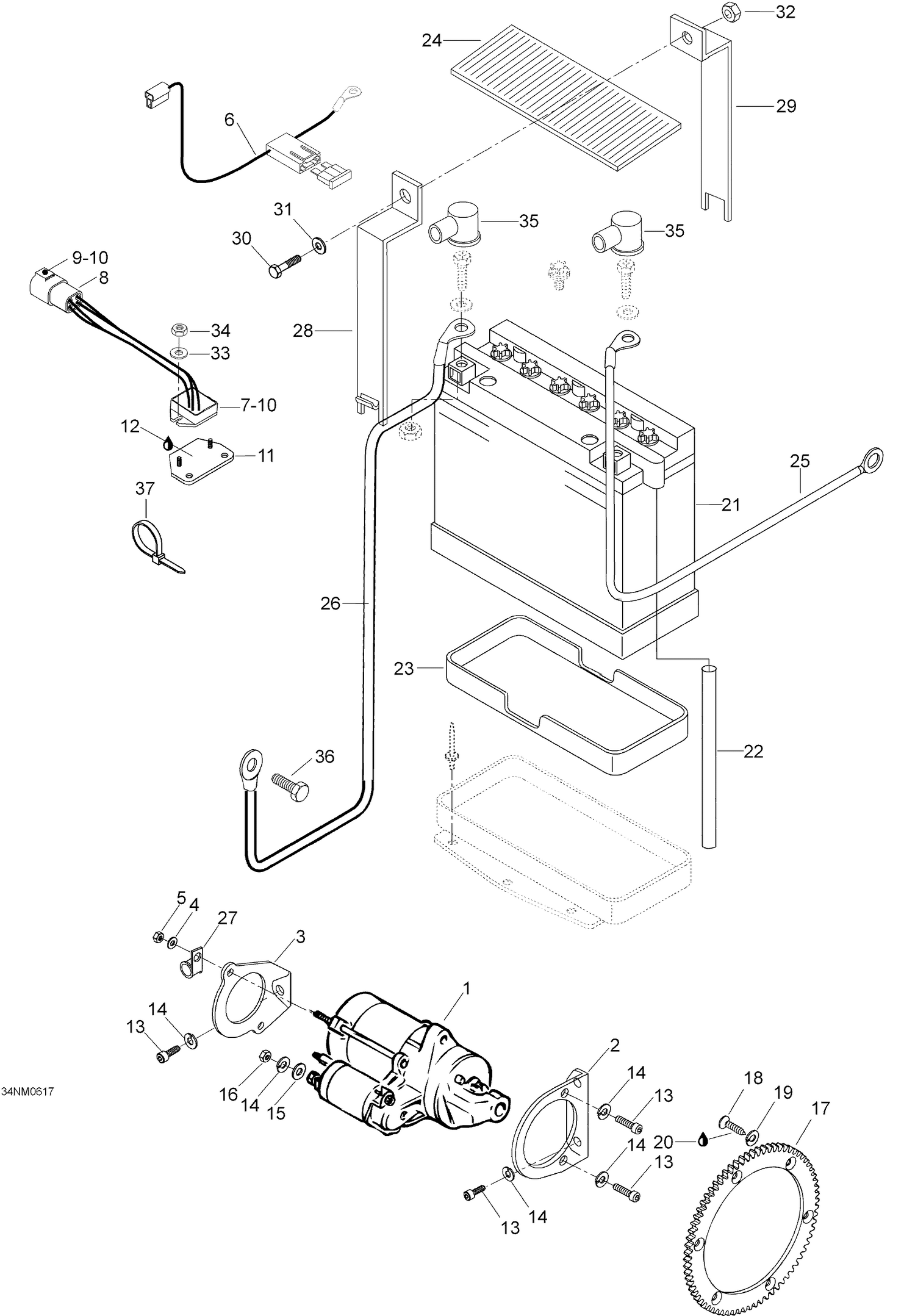

| Ref | Part Number | Description |
|---|
| 1 |
410212400 |
ELECTRIC STARTER ASSY - Call your local BRP dealership |
| 2 |
M5346654 |
Starter Bracket |
| 3 |
M5346655 |
Mag Starter Bracket |
| 4 |
20008 |
Washer 5,3 mm This part replaces M20008. |
| 5 |
232551414 |
Elastic Stop Nut M5 |
| 6 |
M5346695 |
Fuse Holder |
| 8 |
278001477 |
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership |
| 9 |
515175568 |
Male Terminal |
| 10 |
278001478 |
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 11 |
605351360 |
REGULATOR BRACKET - Call your local BRP dealership |
| 12 |
413707500 |
Grease Tube Lmz, 400 G |
| 13 |
205082044 |
Socket Head Screw M8 X 20 |
| 14 |
234181401 |
Lock Washer 8 mm |
| 15 |
234081410 |
Flat Washer 8 mm This part replaces M20004. |
| 16 |
M33003 |
NUT - Call your local BRP dealership |
| 18 |
236281684 |
Hex. Screw M8 X 16 |
| 19 |
M20078 |
WASHER - Call your local BRP dealership |
| 20 |
219701421 |
Instant Gasket This part replaces 219700363. |
| 21 |
42215 |
BATTERY YUASA 12N14-3A - Call your local BRP dealership This part replaces M42215. |
| 22 |
M39055 |
Tube |
| 23 |
M5346659 |
Battery Seat |
| 24 |
M5446666 |
Battery Carpet |
| 25 |
605349434 |
BATTERY WIRE - Call your local BRP dealership |
| 26 |
M549887 |
Ground Wire |
| 27 |
M27092 |
CLIP - Call your local BRP dealership |
| 28 |
M5446682 |
Steel Strip |
| 29 |
M5446694 |
Steel Strip |
| 30 |
207063044 |
Hex. Screw M6 X 30 |
| 31 |
234061410 |
Flat Washer 6 mm |
| 32 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
| 33 |
234062410 |
Flat Washer 6 mm This part replaces M20009. |
| 34 |
232561414 |
Elastic Stop Nut M6 |
| 35 |
570151000 |
Protection Cap |
| 36 |
M40327 |
SCREW-M6X12 - Call your local BRP dealership |
