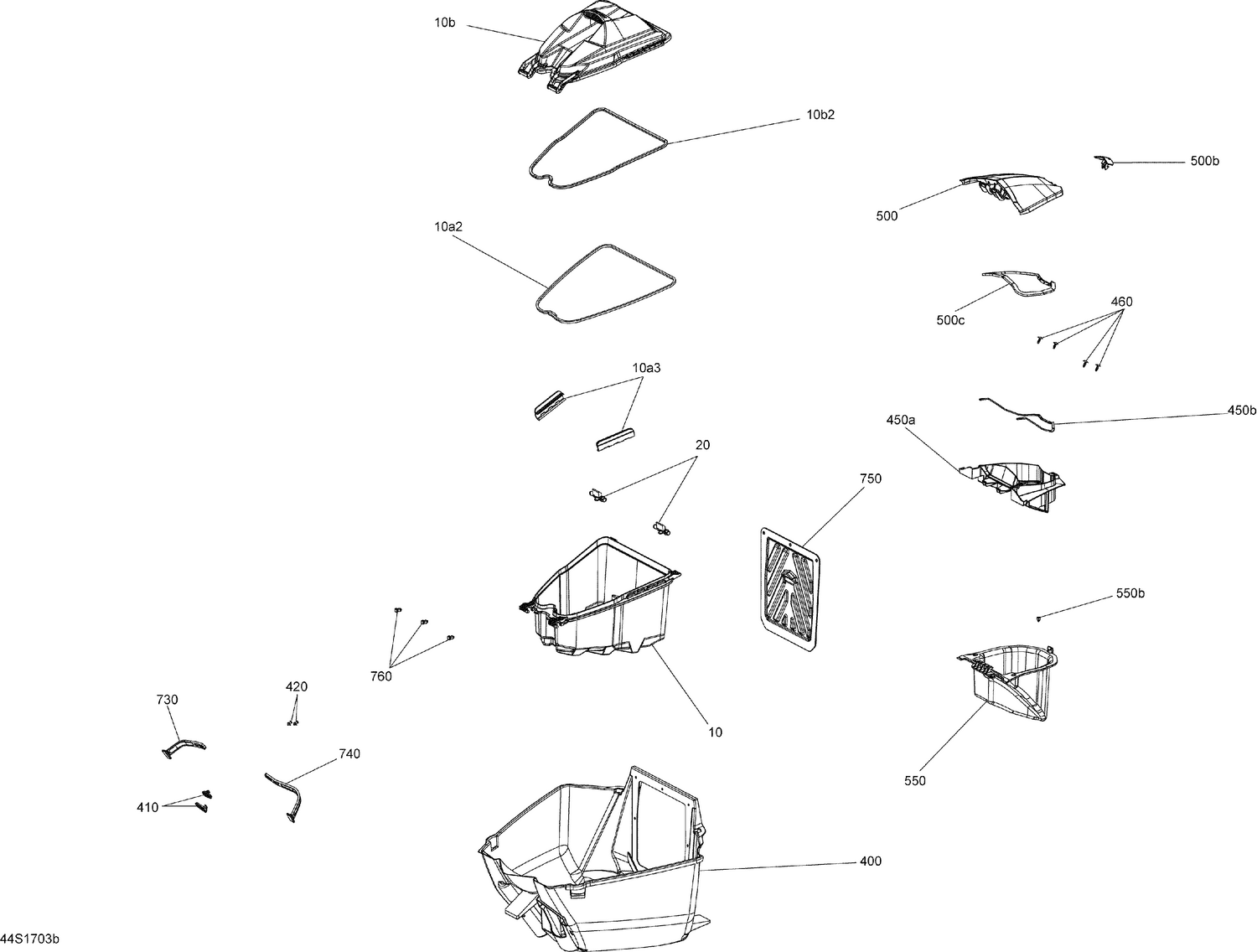

09- Storage Compartments - All Models
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 10a2 | 219704374 | Gasket 1000Mm Long |
| 10a3 | 269501609 | Clip |
| 10b | 264000120 | Storage Bin Cover Ass'y |
| 10b2 | 293250210 | NEOPRENE SEAL - Call your local BRP dealership |
| 20 | 264000024 | Latch |
| 400 | Not | Available As Spare Part - Not Available |
| 410 | 269500521 | Hook |
| 420 | 293150027 | Avdel Rivet |
| 450a | 264000112 | GLOVE BOX EXT. - Call your local BRP dealership |
| 450b | 219704381 | SEAL 1000MM LONG - Call your local BRP dealership |
| 460 | 293730011 | Black, Dart |
| 500b | 264000164 | Black, Latch This part replaces 264000091. |
| 500c | 293250367 | GASKET - Call your local BRP dealership |
| 550b | 293830005 | Rubber Bumper |
| 730 | 269502417 | Strap This part replaces 269500408. |
| 740 | 269502145 | Strap |
| 750 | 264000114 | DOOR COMPARTMENT - Call your local BRP dealership |
