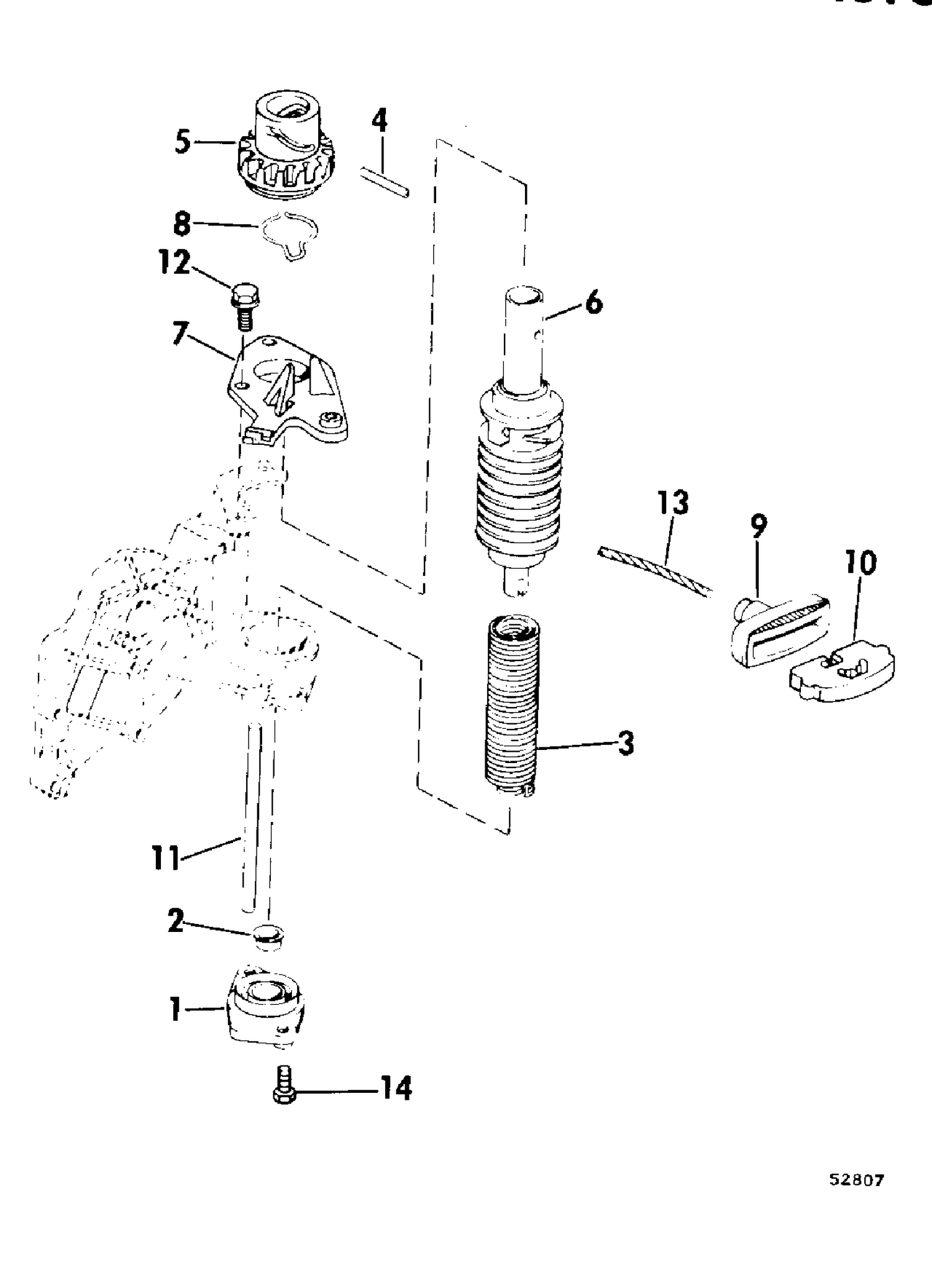

REWIND STARTER
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0314501 | PLATE, Spring retainer |
| 2 | 0311259 | BUSHING |
| 3 | 0314500 | MAIN SPRING |
| 4 | 0309686 | ROLL PIN |
| 5 | 0318447 | PINION |
| 6 | 0387509 | SPOOL This part replaces 0386568. |
| 7 | 0318379 | BEARING HEAD |
| 8 | 0309736 | SPRING |
| 9 | 0321019 | HANDLE |
| 10 | 0389713 | ANCHOR, Rope to handle This part replaces 0320430. |
| 11 | 0311284 | GUIDE, Rope |
| 12 | 0318468 | SCRAEW, Latch to handle |
| 0386569 | 0386569 | REWIND STARTER ASSY |
