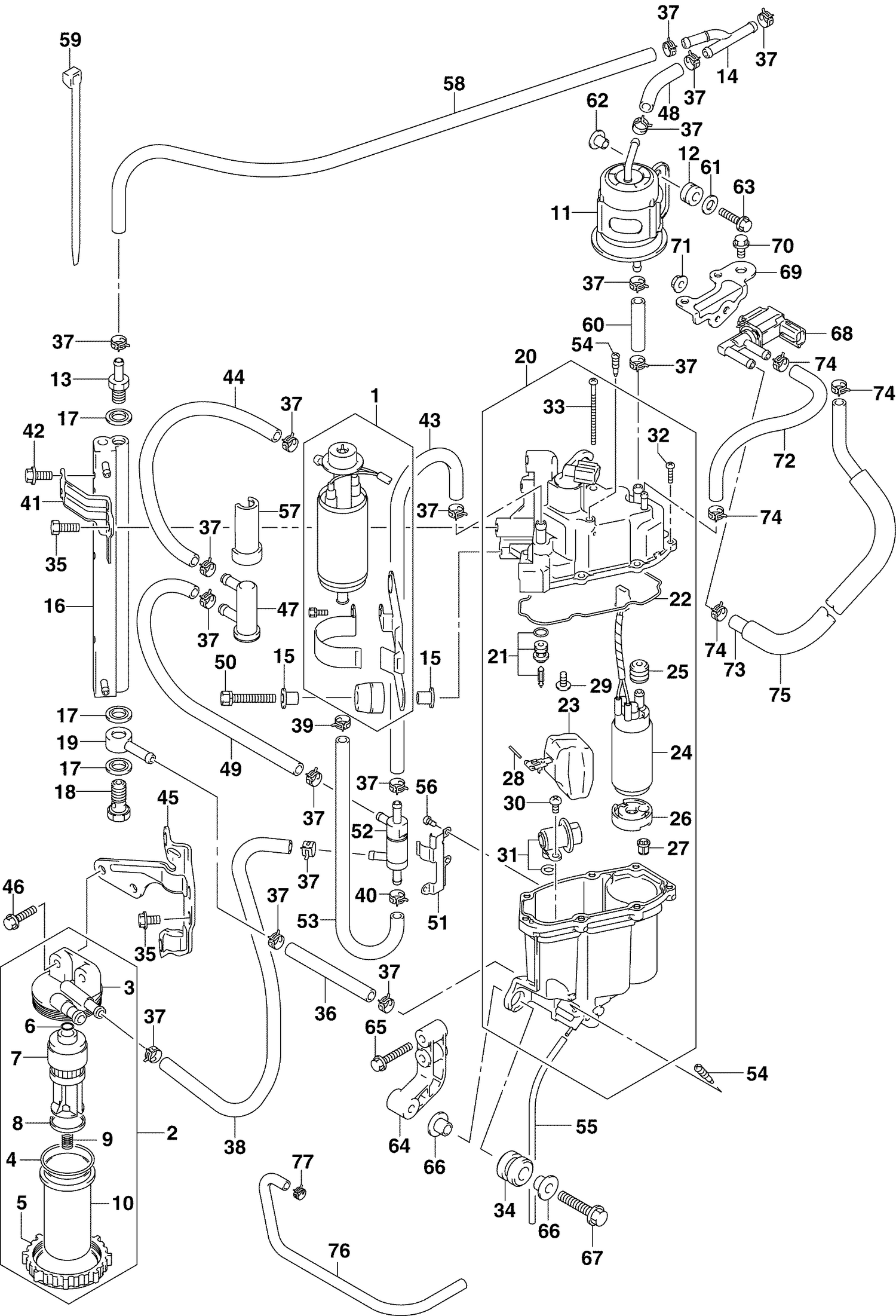

| Ref | Part Number | Description |
|---|
| 1 |
5035394 |
PUMP ASSY, FUEL (Low Pressure) |
| 2 |
5034984 |
FILTER, FUEL (Low Pressure) |
| 11 |
5034985 |
FILTER, FUEL (EPI) |
| 12 |
5030555 |
CUSHION |
| 13 |
5033538 |
UNION, FUEL HOSE |
| 14 |
5035016 |
UNION,3 WAY |
| 15 |
5030471 |
SPACER |
| 16 |
5035015 |
COOLER, FUEL |
| 17 |
5030466 |
GASKET |
| 18 |
5030567 |
BOLT |
| 19 |
5030569 |
UNION |
| 20 |
5036636 |
SEPARATOR Assy,. This part replaces 5034986. |
| 22 |
5034987 |
Gasket |
| 34 |
5034837 |
CUSHION, FUEL VAPOR SEPARATOR |
| 35 |
5035004 |
BOLT, COOLER BRACKET |
| 37 |
5030579 |
CLAMP |
| 38 |
5034993 |
HOSE, FUEL (Low Pressure) |
| 39 |
5035009 |
CLIP |
| 40 |
5035008 |
CLIP |
| 41 |
5035001 |
BRACKET, FUEL COOLER |
| 42 |
5035633 |
BOLT, FUEL COOLER |
| 43 |
5034992 |
HOSE, FUEL (High Pressure) |
| 44 |
5034989 |
HOSE, FUEL (High Pressure) |
| 45 |
5035002 |
BRACKET, FUEL FILTER |
| 47 |
5034995 |
FILTER, FUEL (Low Pressure) |
| 49 |
5034991 |
HOSE, FUEL (High Pressure) |
| 50 |
5034172 |
BOLT |
| 51 |
5035003 |
BRACKET, CHECK VALVE |
| 52 |
5034997 |
VALVE, CHECK |
| 53 |
5034994 |
HOSE, FUEL (Low Pressure) |
| 56 |
5035642 |
SCREW |
| 57 |
5034996 |
COVER, FUEL FILTER |
| 59 |
5034998 |
CLAMP, FUEL FILTER |
| 62 |
5030471 |
SPACER |
| 64 |
5035000 |
BRACKET, VAPOR SEPARATOR |
| 66 |
5031866 |
WASHER |
| 68 |
5035411 |
VALVE ASSY, EVAP PURGE |
| 69 |
5035057 |
BRACKET, PURGE VALVE |
| 71 |
5030018 |
NUT |
| 74 |
5031278 |
CLAMP |
| 75 |
5032235 |
PROTECTOR (280mm) |
| 76 |
5035006 |
BRACKET, Throttle cable |
