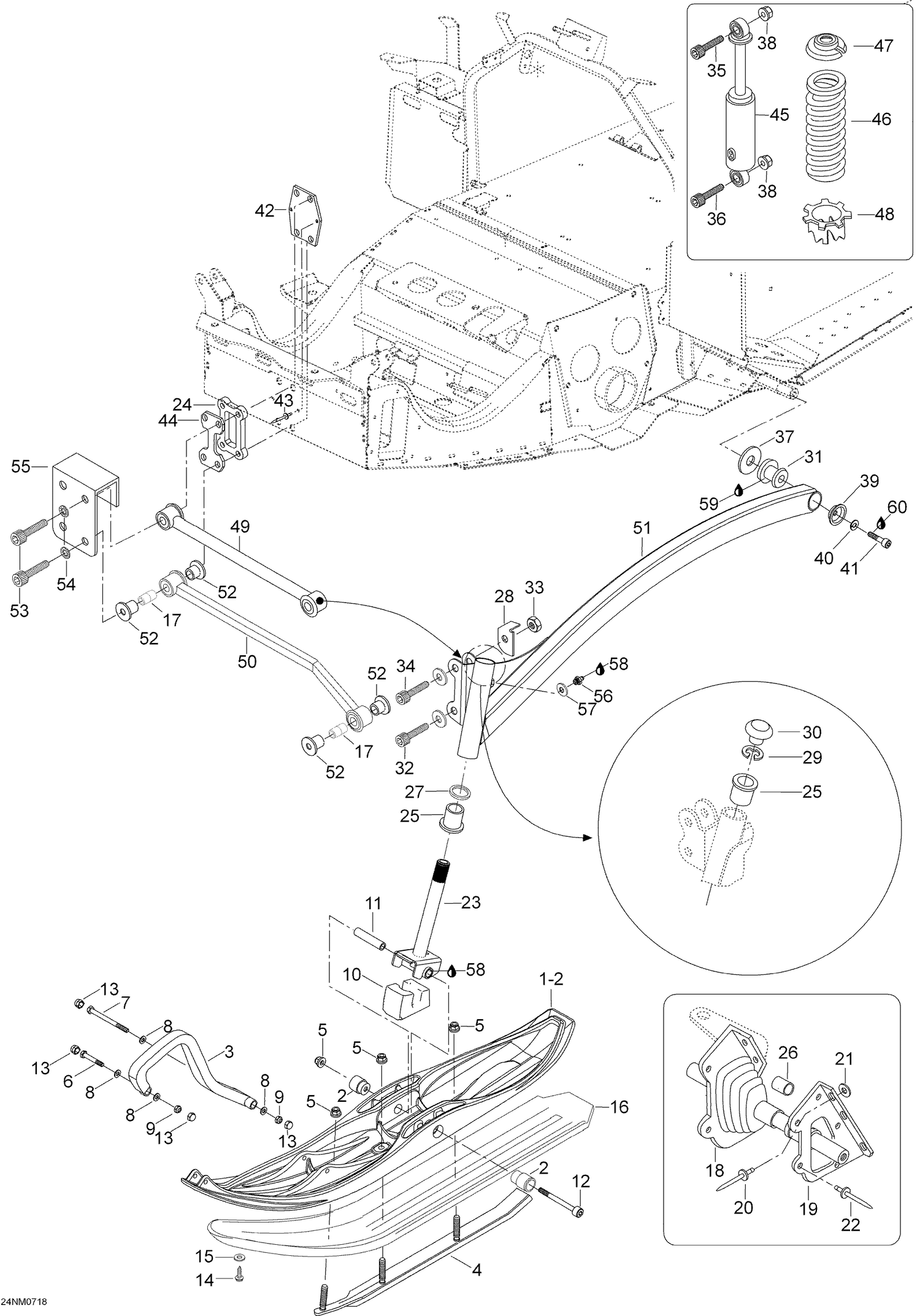

| Ref | Part Number | Description |
|---|
| 2 |
605348392 |
Sleeve |
| 3 |
505070963 |
Handle, black |
| 5 |
33074 |
NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership |
| 6 |
40009 |
Hex. screw M8 x 50 |
| 7 |
207089044 |
Hex. Screw M8 x 90 This part replaces 40264. |
| 8 |
234081410 |
Flat Washer 8 mm This part replaces 20004. |
| 9 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 10 |
605348458 |
SKI STOPPER - Call your local BRP dealership |
| 11 |
506133300 |
Sleeve |
| 12 |
40225 |
Socket head screw M10 x 140 |
| 13 |
28056 |
Cover |
| 14 |
40901 |
Screw 5 x 20 |
| 15 |
20037 |
Washer A4,3 |
| 16 |
605153964 |
Ski liner |
| 17 |
605450024 |
BUSHING - Call your local BRP dealership |
| 18 |
570024800 |
R.H. Tie rod cap |
| 18 |
570024900 |
LH TIE ROD CAP - Call your local BRP dealership |
| 19 |
605350119 |
LH COVER PLATE - Call your local BRP dealership |
| 19 |
605350120 |
RH COVER PLATE - Call your local BRP dealership |
| 20 |
36037 |
Rivet |
| 21 |
20008 |
Washer A5,3 |
| 22 |
36009 |
Rivet |
| 23 |
506151234 |
Ski leg |
| 24 |
605350191 |
Spacer plate |
| 25 |
505070003 |
Cushion |
| 26 |
572036500 |
BUSHING - Call your local BRP dealership |
| 27 |
505070004 |
WASHER - Call your local BRP dealership |
| 28 |
605448861 |
R.H. Limiter |
| 28 |
605448862 |
L.H. Limiter |
| 29 |
371910400 |
CIRCLIP - Call your local BRP dealership |
| 30 |
572091300 |
Cap |
| 31 |
570062200 |
DAMPER - Call your local BRP dealership |
| 32 |
40371 |
Socket head screw M12 x 55 |
| 33 |
232521414 |
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership This part replaces 33013. |
| 34 |
40306 |
SOCKET HEAD SCREW M12 X 60 - Call your local BRP dealership |
| 35 |
40837 |
Allen Screw M10x55 DIN 912 (1=10pcs) - Call your local BRP dealership |
| 36 |
40136 |
Allen screw M10 x 50 (1=10pcs) - Call your local BRP dealership |
| 37 |
503146700 |
WASHER - Call your local BRP dealership |
| 38 |
33012 |
Elastic stop nut. M10 |
| 39 |
705007171 |
Cup This part replaces 506115800. |
| 40 |
20014 |
Lock washer A8 |
| 41 |
40810 |
Socket head screw M8 x 20 |
| 42 |
605353972 |
PLATE - Call your local BRP dealership |
| 43 |
36005 |
Rivet |
| 44 |
605450900 |
MIDDLE PLATE - Call your local BRP dealership |
| 45 |
23122 |
Shock |
| 46 |
250143 |
Spring - Call your local BRP dealership |
| 47 |
230076 |
Spring stopper |
| 48 |
230078 |
Adjusting Cam |
| 49 |
605350022 |
UPPER ARM ASSY - Call your local BRP dealership |
| 50 |
605252224 |
LOWER ARM - Call your local BRP dealership |
| 51 |
605251767 |
R.H. Swing arm |
| 51 |
605251768 |
L.H. Swing arm |
| 52 |
506149100 |
CUSHION - Call your local BRP dealership |
| 53 |
205027544 |
SCREW-SOCKET HD.DIN.912 - Call your local BRP dealership This part replaces 40370. |
| 54 |
20074 |
Lock washer |
| 55 |
605350192 |
PLATE - Call your local BRP dealership |
| 56 |
34011 |
Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership |
| 57 |
20003 |
Washer A6,4 |
| 58 |
413711500 |
SYNTHETIC GREASE - Call your local BRP dealership |
| 59 |
293550030 |
Grease, Super Lube This part replaces 293550014. |
