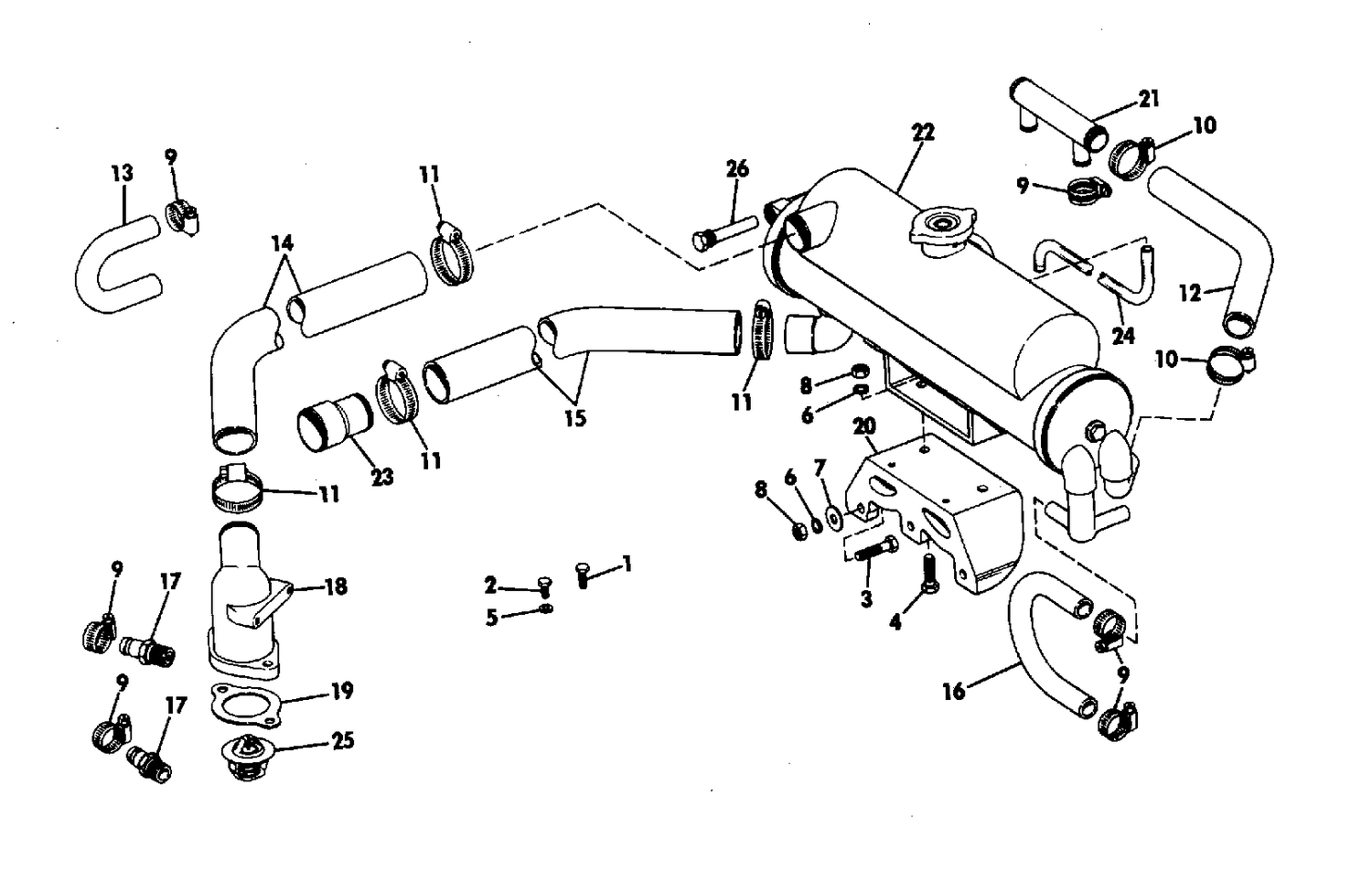

| Ref | Part Number | Description |
|---|
| 1 |
CAPSCREW, |
Hex hd., 1/4-20 x 3/4inch long |
| 2 |
CAPSCREW, |
Hex hd., 1/4-20 x 1/2inch long |
| 3 |
CAPSCREW, |
Hex hd., 3/8 x 1-1/2inch long |
| 4 |
CAPSCREW, |
Hex hd., 3/8 x 1-1/4inch long |
| 9 |
CLAMP, |
Hose, #10 |
| 10 |
CLAMP, |
Hose, #16 |
| 11 |
CLAMP, |
Hose, #24 |
| 12 |
HOSE, |
Flex., 1inch I.D. 12-1/4inch long |
| 13 |
HOSE, |
Flex., 5/8inch I.D. 8inch long |
| 14 |
HOSE, |
Flex., 1-1/2inch I.D. 30inch long |
| 15 |
HOSE, |
Flex., 1-1/2inch I.D. 18-1/2inch long |
| 16 |
HOSE, |
Flex., 5/8inch I.D. 9inch long |
| 17 |
NIPPLE, |
Hose connector |
| 18 |
047-022 |
HOUSING, Thermostat |
| 19 |
079-035 |
GASKET, Thermostat housing |
| 20 |
044-015 |
BRACKET, Mounting, AL - 18 |
| 21 |
072-005 |
HEADER ASSY, Water pump |
| 22 |
HEAT |
EXCHANGER ASSY., OMC 418-6 |
| 23 |
ADAPTER, |
Hose, 1-1/2inch O.D. to 1-3/4inch O. D. |
| 24 |
HOSE, |
Clear plastic |
| 25 |
072-019 |
THERMOSTAT, 160 deg f |
| 26 |
076-007 |
ANODE (INSTALLED IN HEAD EXCHANGER) |
