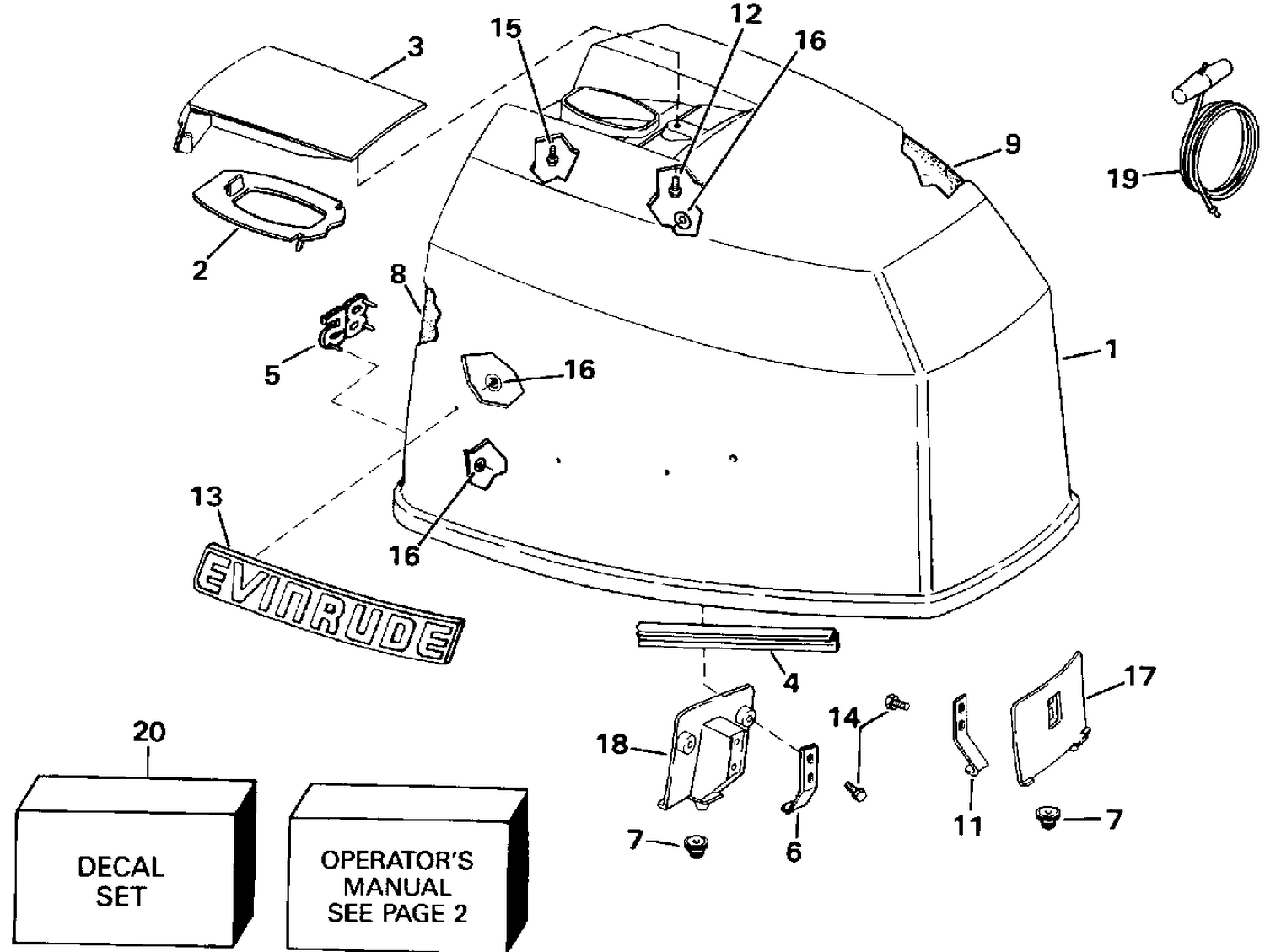

ENGINE COVER - EVINRUDE
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0284106 | ENGINE COVER ASSY. |
| 4 | 0329548 | SEAL |
| 5 | 0211824 | APPLIQUE, Front & rear |
| 8 | 0341534 | SOUND BLANKET, Side This part replaces 0208509. |
| 9 | 0208510 | SOUND BLANKET, Top |
| 11 | 0323175 | HOOK , Motor Cover, Front |
| 13 | 0211688 | APPLIQUE, Evinrude This part replaces 0211749. |
| 17 | 0336991 | BRACKET, Locating, front |
| 18 | 0336992 | BRACKET, Locating, rear |
| 19 | 0378347 | CORDE DE LANCEUR |
