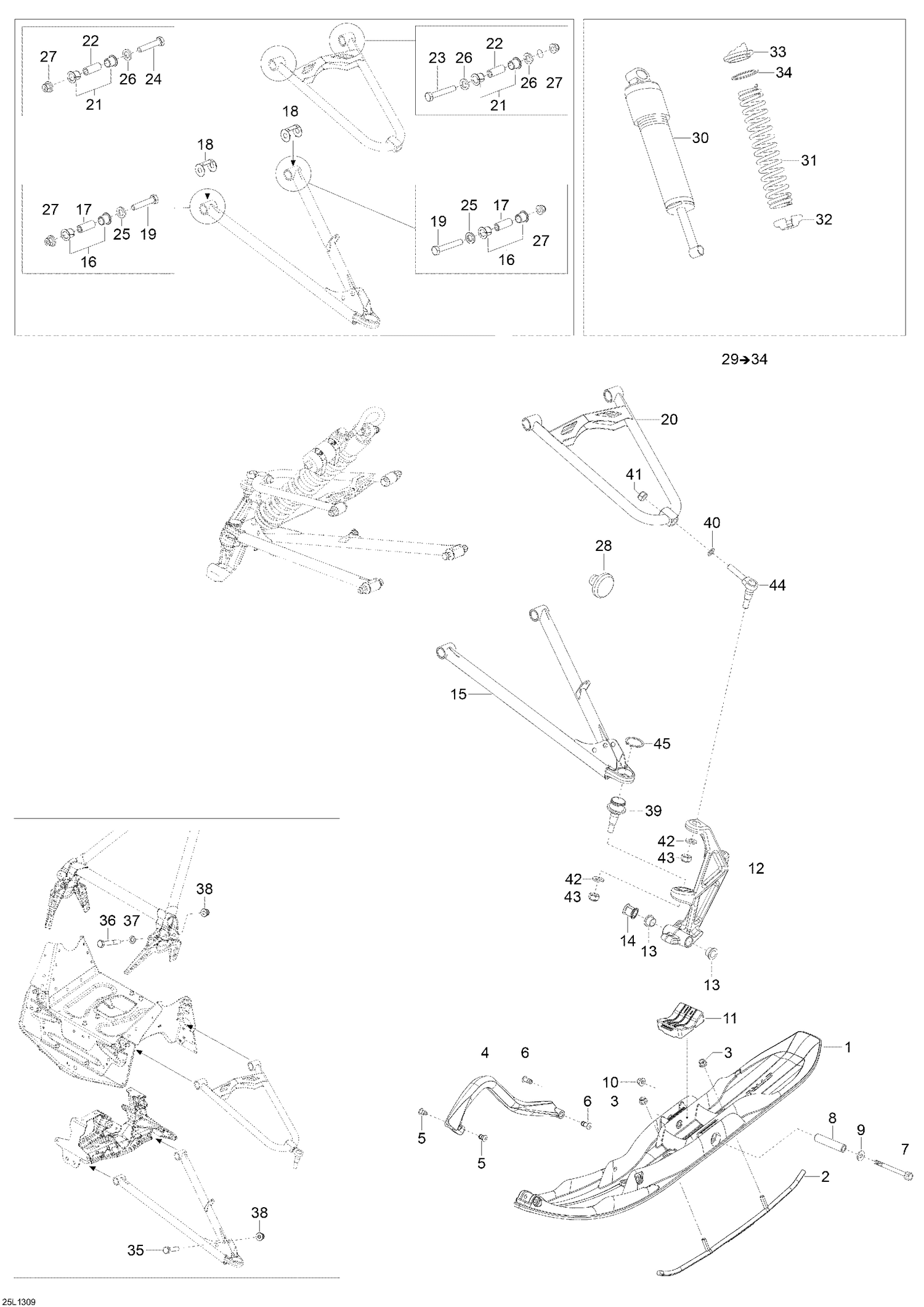

07- Front Suspension And Ski
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 505072673 | PLASTIC SKI - Call your local BRP dealership |
| 2 | 860202822 | Round Carbide Runner Kit This part replaces 605352643. |
| 3 | 233201414 | Hex. Flanged Elastic Nut M10 |
| 4 | 505072102 | Handle (White) |
| 5 | 505071812 | Retainer 17mm long |
| 6 | 505072133 | Retainer 23mm Long |
| 7 | 250000703 | Hex. Screw M10 X 130 This part replaces 230003044. |
| 8 | 506133300 | Ski Axle |
| 9 | 732900049 | Washer |
| 10 | 233201414 | Hex. Flanged Elastic Nut M10 |
| 11 | 505072561 | RUBBER DAMPER - Call your local BRP dealership |
| 12 | 505073011 | Ski Leg LH |
| 12 | 505073012 | Ski Leg RH |
| 13 | 505072690 | Leg Bushing |
| 14 | 505071999 | Spacer |
| 15 | 505072497 | Lower Arm RH |
| 15 | 505072498 | Lower Arm LH |
| 16 | 503191766 | Cushion |
| 17 | 505072401 | Aluminum Bushing |
| 18 | 505072634 | Wear Plate |
| 19 | 250001024 | Screw Hex. M10 X 70 This part replaces 250000291. |
| 20 | 505072375 | Upper Arm |
| 21 | 505072250 | Bushing |
| 22 | 505072143 | Bushing |
| 23 | 250001023 | Screw Hex. M10 X 60 This part replaces 250000290. |
| 24 | 250001022 | Screw Hex. M10 X 50 This part replaces 250000289. |
| 25 | 503189564 | Washer |
| 26 | 505072392 | Washer |
| 27 | 250100165 | Hex. Flanged Elastic Nut M10 This part replaces 250100088. |
| 28 | 572091300 | Cap |
| 30 | 505073342 | Front Shock (EUR) This part replaces 505072821. |
| 31 | 505072882 | Spring |
| 32 | 706200881 | Spring Stopper |
| 33 | 505073625 | Adjustment Cam This part replaces 505070150. |
| 34 | 503191872 | Spring Guide |
| 35 | 207005544 | Hex. Cap Screw M10 x 55 |
| 36 | 207006544 | Hex. Cap Screw M10 x 65 |
| 37 | 503189564 | Washer |
| 38 | 233201414 | Hex. Flanged Elastic Nut M10 |
| 39 | 505073636 | Ball Joint This part replaces 505072682. |
| 40 | 503189276 | Washer |
| 41 | 250100089 | Nut M12 |
| 42 | 234021410 | Flat Washer |
| 43 | 250100089 | Nut M12 |
| 44 | 505072257 | Upper Ball Joint |
