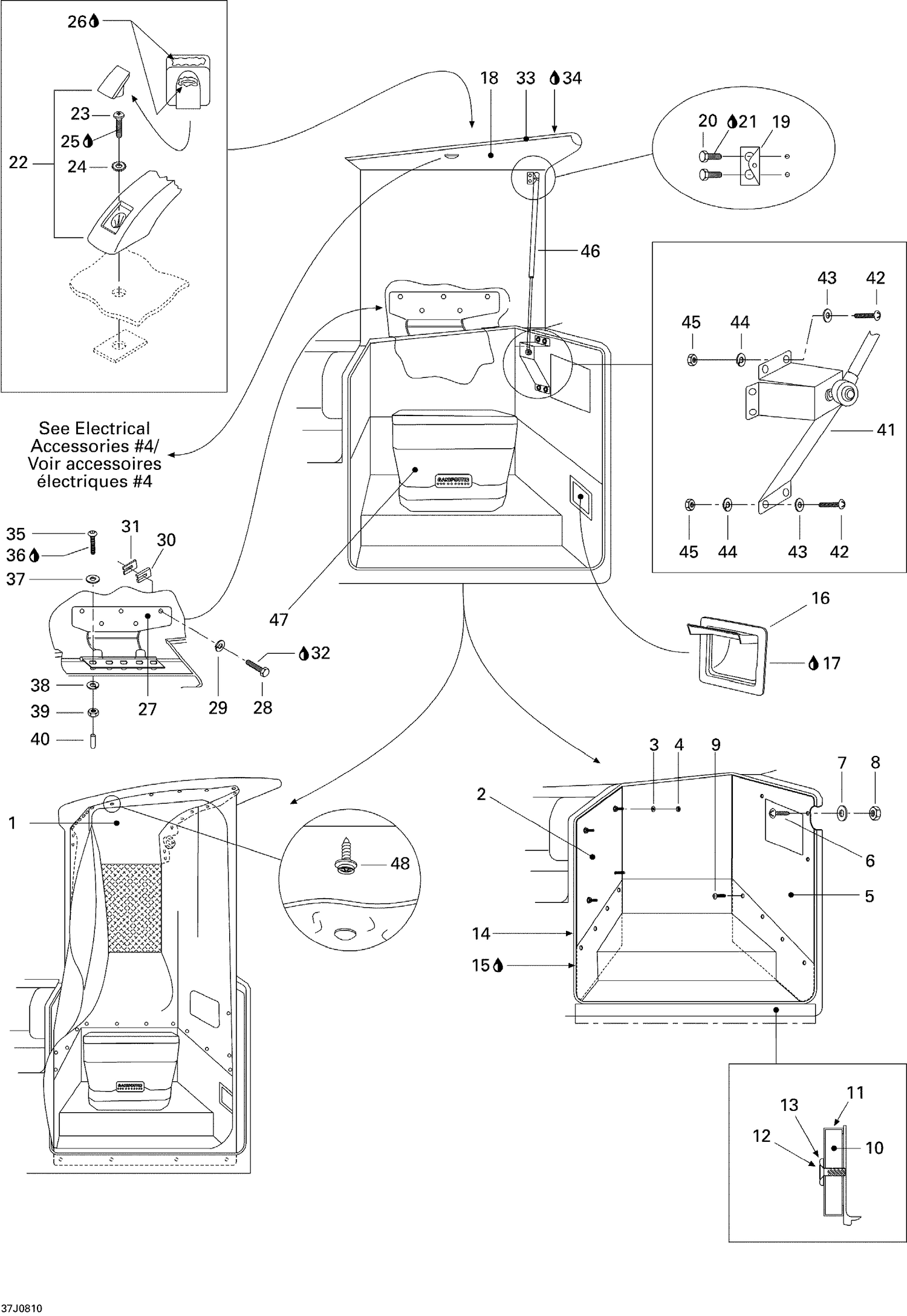

| Ref | Part Number | Description |
|---|
| 1 |
204070764 |
Headliner, Toilet Door |
| 2 |
204071028 |
PLASTIC FORM, FRONT BULKHEAD - Call your local BRP dealership |
| 3 |
234062600 |
Flat Washer M6, Stainless |
| 4 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 5 |
204070776 |
PLASTIC FORM, REAR BULKHEAD - Call your local BRP dealership |
| 6 |
208663060 |
PHILLIPS SCREW M6 X 30 - Call your local BRP dealership |
| 7 |
234062600 |
Flat Washer M6, Stainless |
| 8 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 9 |
209642560 |
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership |
| 10 |
204070779 |
LOWER DOOR COVER - Call your local BRP dealership |
| 11 |
204070764 |
Headliner, Toilet Door |
| 12 |
204100056 |
PHILLIPS TAPPING SCREW M10 X 2 - Call your local BRP dealership |
| 13 |
204100057 |
FINITION WASHER - Call your local BRP dealership |
| 14 |
204070752 |
Rubber Trim |
| 16 |
204070637 |
Paper Holder |
| 17 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 18 |
204072582 |
Toilet Door |
| 19 |
204073074 |
Shock Bracket |
| 20 |
207151660 |
HEX. SCREW M5 X 16 - Call your local BRP dealership |
| 21 |
293800060 |
Loctite 243, 10 ml |
| 22 |
204071710 |
Handle Grip |
| 23 |
208663560 |
PHILLIPS SCREW M6 X 35 - Call your local BRP dealership |
| 24 |
234061600 |
Stainless Flat Washer M6 |
| 26 |
293800060 |
Loctite 243, 10 ml |
| 27 |
204070642 |
TOILER DOOR HINGE - Call your local BRP dealership |
| 28 |
207162060 |
Hex. Forming Screw M6 X 20 |
| 29 |
234161601 |
Lock Washer Helical M6 |
| 30 |
204070047 |
SPACER 3.2 MM - Call your local BRP dealership |
| 31 |
204070088 |
SPACER 1.6 MM - Call your local BRP dealership |
| 32 |
293800060 |
Loctite 243, 10 ml |
| 33 |
204072759 |
Trim, White, 7/16”, Meter |
| 35 |
205464060 |
Socket Screw M6 X 40 |
| 36 |
293800060 |
Loctite 243, 10 ml |
| 37 |
234062600 |
Flat Washer M6, Stainless |
| 38 |
234161601 |
Lock Washer Helical M6 |
| 39 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 40 |
204070947 |
Cap |
| 41 |
204070765 |
CYLINDER SUPPORT, TOILET - Call your local BRP dealership |
| 42 |
208663060 |
PHILLIPS SCREW M6 X 30 - Call your local BRP dealership |
| 43 |
234060600 |
FLAT WASHER 6 MM - Call your local BRP dealership |
| 44 |
234161601 |
Lock Washer Helical M6 |
| 45 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 46 |
204071925 |
Gas Shock |
| 47 |
204070636 |
PORTABLE TOILET - Call your local BRP dealership |
