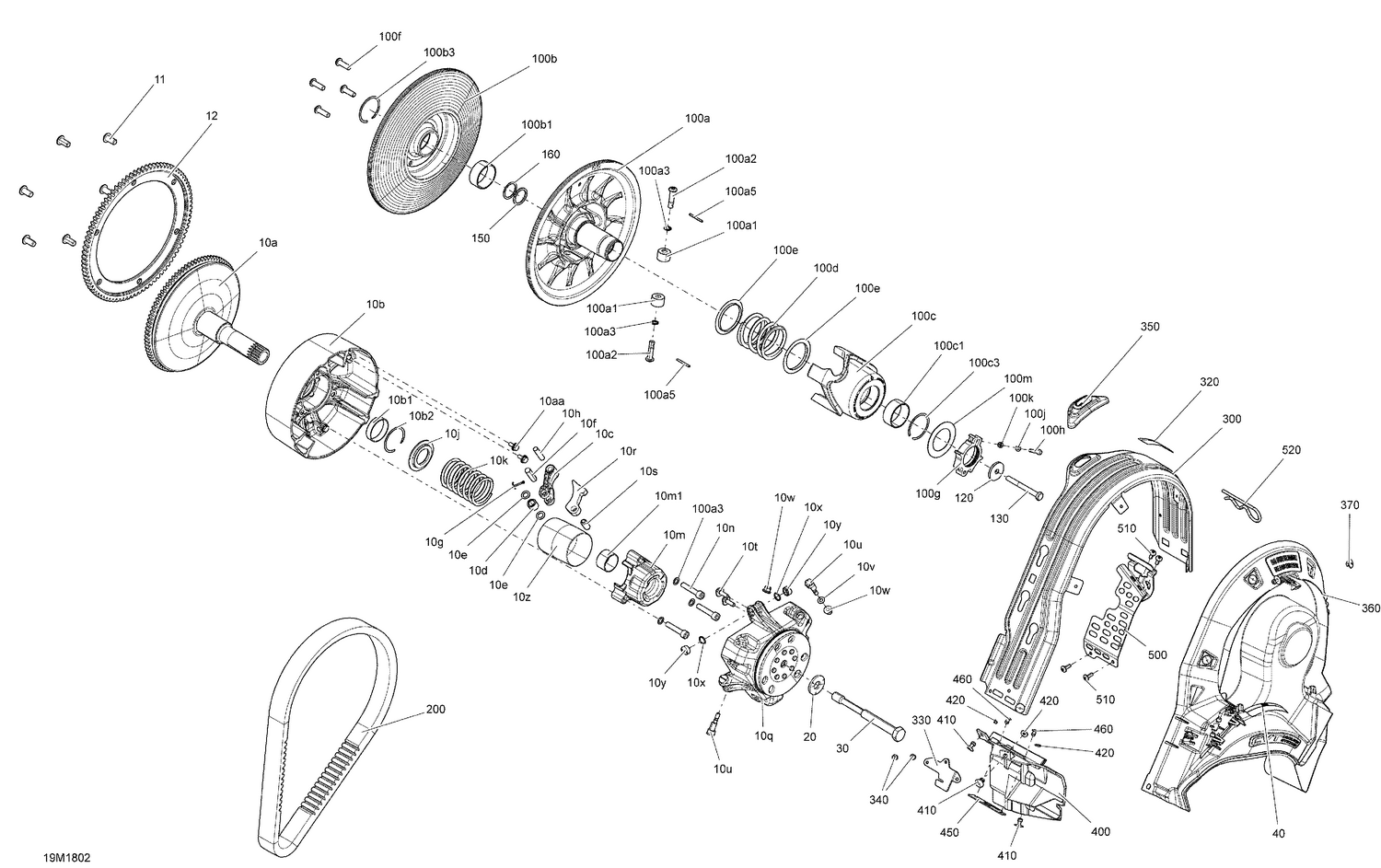

05- Pulley MXZ - 600 CARB
Parts (64)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 417222937 | Fixed Flange Ass'y |
| 10aa | 250000412 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 10b1 | 417222758 | Bushing |
| 10b2 | 293370037 | Circlip |
| 10c | 417222671 | Lever |
| 10d | 417222947 | Roller |
| 10e | 417004302 | Stopper Washer |
| 10f | 417004308 | Pin |
| 10g | 250400060 | Cotter Pin |
| 10h | 417223164 | Lever Axle |
| 10j | 417222312 | Spring Seat |
| 10k | 414817900 | Spring, Violet/Violet |
| 10m1 | 417009204 | Bushing |
| 10n | 205084044 | Socket Head Screw M8 X 1.25 X 40 |
| 10p | 250200009 | Lock Washer 8 mm |
| 10q | 417223669 | Governor Cup Ass'y |
| 10r | 417222515 | Ramp 412 |
| 10s | 250400050 | Spring Pin M10 X 22 |
| 10t | 250000418 | Hex. Flange Screw M6 X 18, Scotch Grip |
| 10u | 417223501 | Calibration Screw |
| 10v | 417005600 | Washer |
| 10w | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 10x | 732401030 | O-Ring |
| 10y | 417222992 | Slider Shoe |
| 10z | 417009205 | Guard |
| 11 | 250000533 | Hex. Flange Screw M8 X 1.25 X 16 |
| 12 | 417225070 | Ring Gear_Starter This part replaces 417223738. |
| 20 | 250200144 | Conical Spring Washer M14 |
| 30 | 417120000 | Drive Pulley Bolt |
| 40 | 516005503 | Decal English |
| 100a1 | 417127016 | Pulley Roller |
| 100a2 | 417127294 | Pivot Stud |
| 100a3 | 250200009 | Lock Washer 8 mm |
| 100a5 | 250400063 | Spring Pin M3 X 30 |
| 100b1 | 417127318 | Bushing ID 41mm OD 45mm X 19mm L |
| 100b3 | 293370049 | Circlip |
| 100c1 | 417127318 | Bushing ID 41mm OD 45mm X 19mm L |
| 100c3 | 293370049 | Circlip |
| 100d | 417127039 | Black, Return Spring |
| 100e | 417127116 | Swivel Abutment |
| 100f | 250000757 | Button Head Torx Screw M8 X 25 S.Gr This part replaces 250000707. |
| 100g | 415129604 | Calibration Ass'y |
| 100h | 205052544 | Socket Screw M5 X 25 |
| 100j | 234051410 | Flat Washer M5 |
| 100k | 232551414 | Elastic Stop Nut M5 |
| 100m | 417127155 | Washer |
| 120 | 517302322 | Strength Washer |
| 130 | 207287544 | Hex. Cap Screw M8 X 75 |
| 160 | 417300265 | Spacer |
| 200 | 417300586 | Drive Belt This part replaces 417300197. |
| 300 | 417300357 | Belt Guard |
| 320 | 516005509 | Safety Belt Guard Decal |
| 330 | 417300423 | Front Bracket |
| 340 | 390909200 | Avex Rivet |
| 350 | 417300381 | Guide |
| 360 | 417300439 | CVT Air Duct |
| 370 | 293150103 | Pop Rivet 3/16" |
| 400 | 417300422 | Front Support |
| 410 | 293150104 | Pop Rivet 3/16" |
| 420 | 517225900 | Flat Washer |
| 450 | 417300421 | Reinforcement Plate |
| 460 | 390909100 | Avex Rivet |
| 500 | 417300448 | BELT GUARD BRACKET - Call your local BRP dealership |
| 510 | 250000742 | Torx Screw M5 X 14 |
