Parts Catalog

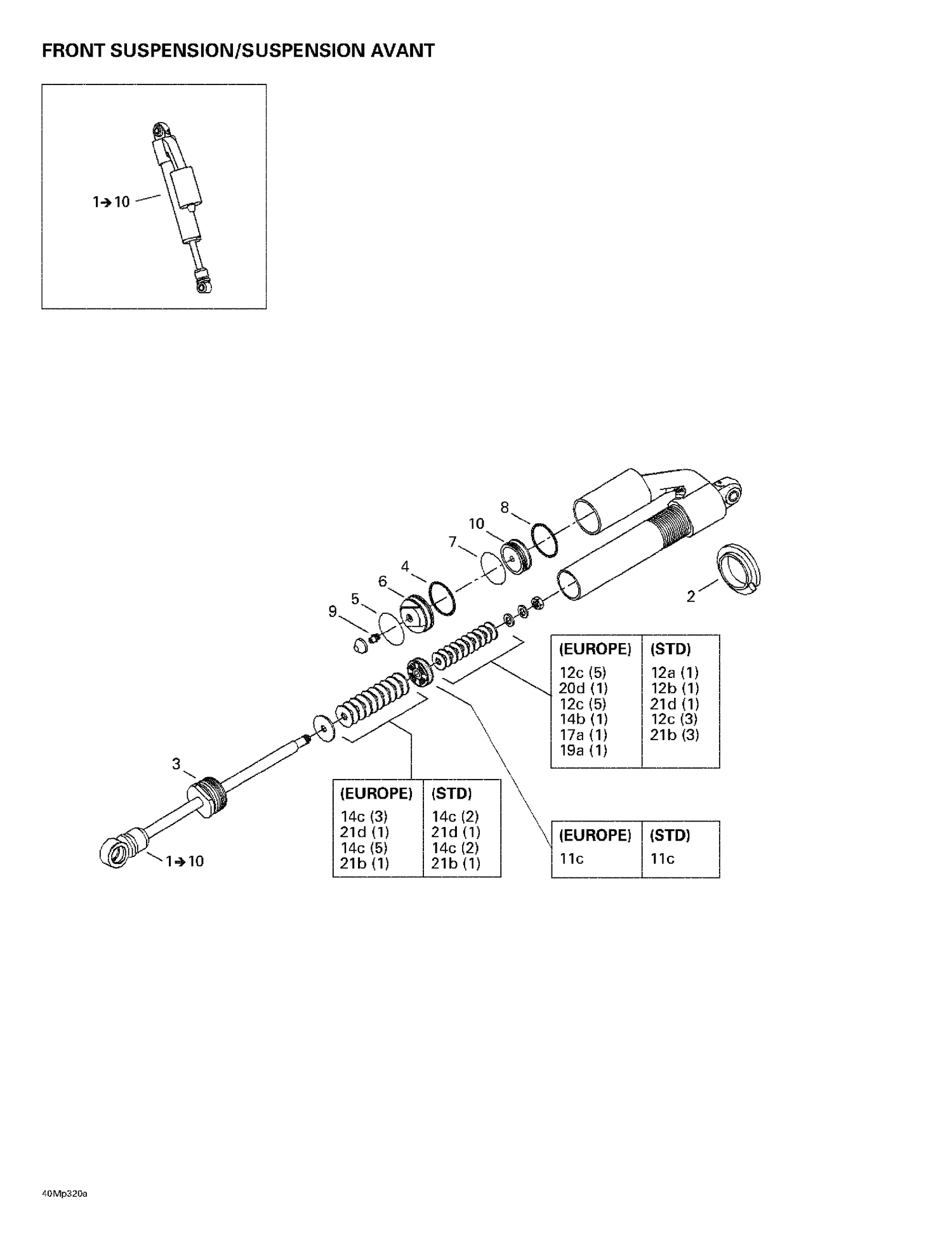

07- Front Take Apart Shocks

Parts (41)

Ref	Part Number	Description
2	505071167	SPRING PLASTIC SEAT - Call your local BRP dealership
3	415093819	Sealing Cap
4	415093804	O-Ring
5	415093805	STOP RING - Call your local BRP dealership
6	415093808	Guide
7	415093806	Piston Ring
8	415093807	O-Ring
9	414888314	AIR VALVE - Call your local BRP dealership
10	415093812	FREE PISTON - Call your local BRP dealership
11A	414888307	Piston (2 X 0.3-6) (C36)
11B	414888306	Piston (2 X 0.3-4) (C36)
11C	414888305	Piston (2 X 0.3-2) (C36)
11D	414888304	Piston (C36)
12A	415039100	Leaf Valve Ø30 X 0.254 (C36)
12B	414888318	Leaf Valve Ø30 X 0.203 (C36)
12C	414888319	Leaf Valve Ø30 X 0.152 (C36)
13A	414888320	Leaf Valve Ø28 X 0.203 (C36)
13B	414888321	Leaf Valve Ø28 X 0.152 (C36)
14A	415039000	Leaf Valve Ø26 X 0.254 (C36)
14B	414888322	Leaf Valve Ø26 X 0.203 (C36)
14C	414888323	Leaf Valve Ø26 X 0.152 (C36)
15A	414888324	Leaf Valve Ø22 X 0.203 (C36)
15B	414888325	Leaf Valve Ø22 X 0.152 (C36)
16A	414888340	Leaf Valve Ø21 X 0.114 (C36)
17A	414888326	Leaf Valve Ø20 X 0.203 (C36)
17B	414888327	Leaf Valve Ø20 X 0.152 (C36)
17C	414888328	Leaf Valve Ø20 X 0.114 (C36)
18A	414888329	Leaf Valve Ø18 X 0.203 (C36)
18B	414888330	Leaf Valve Ø18 X 0.152 (C36)
19A	414888331	Leaf Valve Ø16 X 0.254 (C36)
19B	414888332	Leaf Valve Ø16 X 0.203 (C36)
19C	414888333	Leaf Valve Ø16 X 0.152 (C36)
19D	415083900	Leaf Valve Ø16 X 0.114 (C36)
20A	414888334	Leaf Valve Ø15 X 0.254 (C36)
20B	414888335	Leaf Valve Ø15 X 0.203 (C36)
20C	414888336	Leaf Valve Ø15 X 0.152 (C36)
20D	414888337	Leaf Valve Ø15 X 0.114 (C36)
21A	503189538	Leaf Valve Ø12 X 0.254 (C36)
21B	414888338	Leaf Valve Ø12 X 0.203 (C36)
21C	414888339	Leaf Valve Ø12 X 0.152 (C36)
21D	415038800	Leaf Valve Ø12 X 0.114 (C36)
