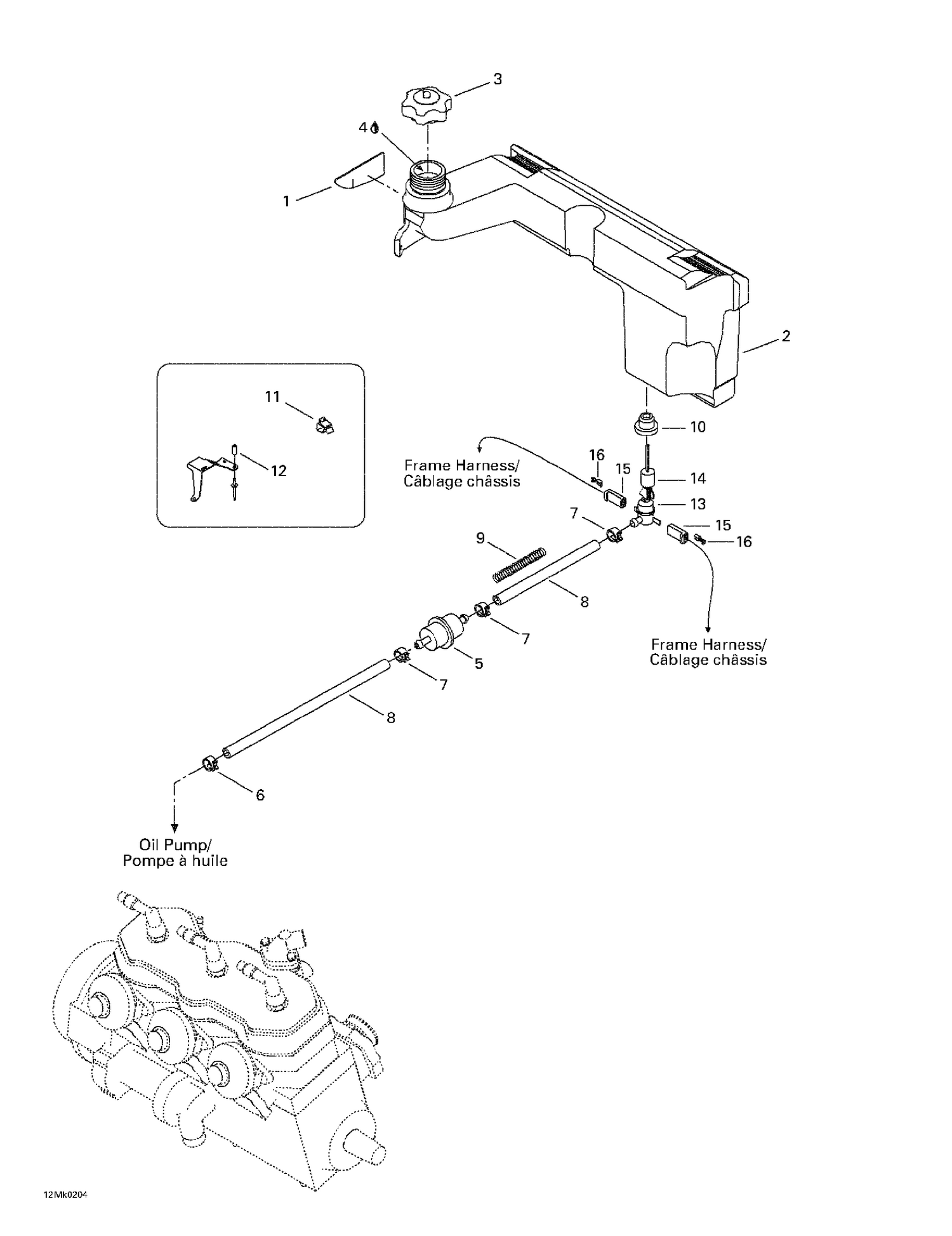

02- Oil Tank
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 514052953 | Reflective Sheet |
| 2 | 572088500 | Injection Oil Tank |
| 3 | 519000044 | CAP - Call your local BRP dealership |
| 4 | 293600120 | OIL PRE-MIX 12 X 500ML - Call your local BRP dealership This part replaces 413803100. |
| 5 | 414536500 | Filter |
| 6 | 414420700 | Spring Clamp |
| 7 | 414415200 | Spring Clamp |
| 8 | 219704412 | Polyurethane Hose, 8 Mm 3000Mm Long |
| 9 | 519000001 | Spring |
| 10 | 570023000 | Insulating Ring |
| 11 | 414227300 | Clip |
| 12 | 219704414 | Was 415110000 Polyurethane Hose 5.2 mm |
| 13 | 414681800 | LEVEL SWITCH - Call your local BRP dealership |
| 14 | 414681900 | Float |
| 15 | 409204800 | Female Terminal Housing (1 circuit) |
| 779120 | 2T | Snowmobile Premium Mineral Oil This part replaces 413803000. 779120 |
