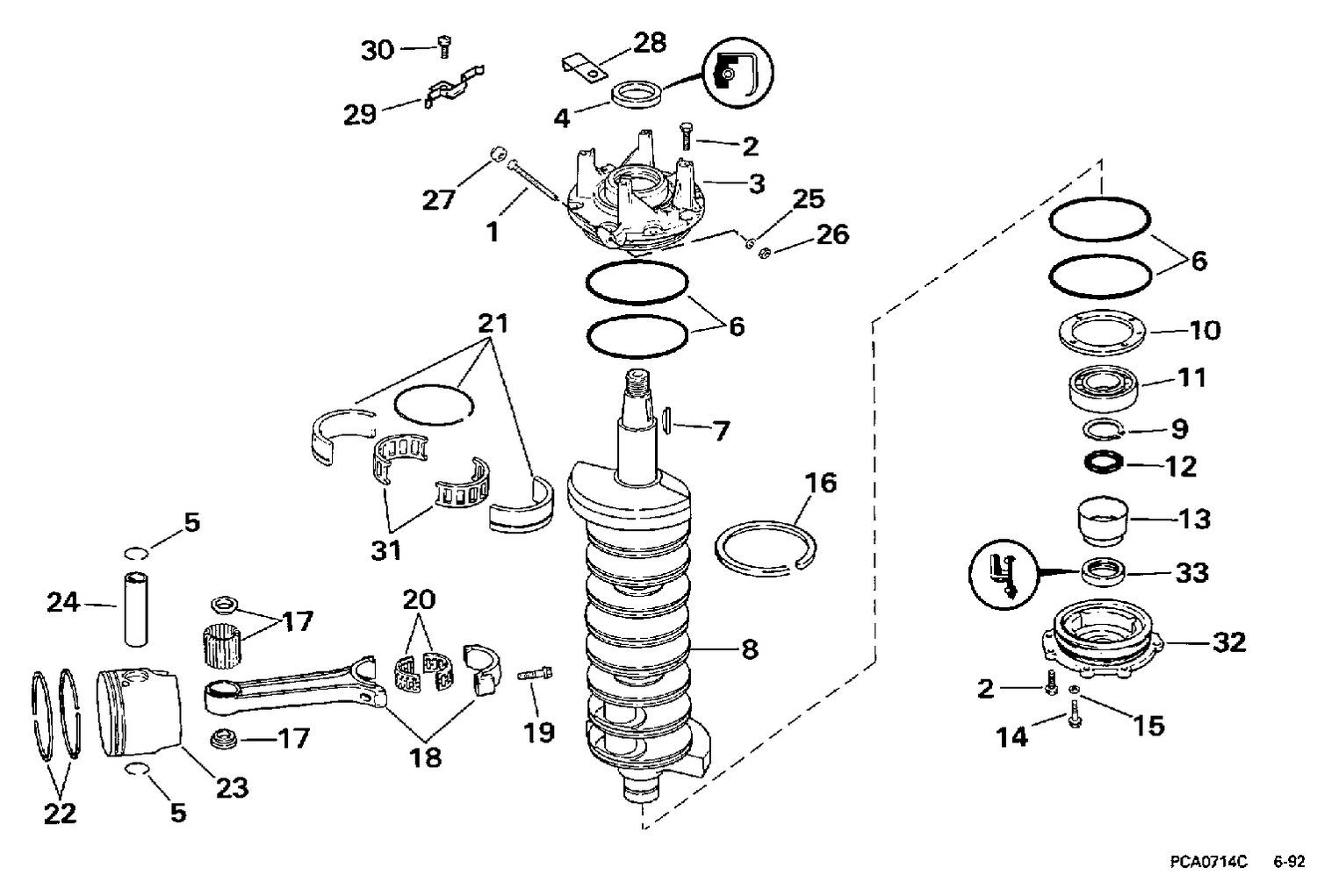

CRANKSHAFT & PISTON

CRANKSHAFT & PISTON

Parts (18)

RefPart NumberDescription
2 0344020 SCREW, Crankcase head
3 5000574 CRANKCASE HEAD & BRG. ASSY. This part replaces 0396668.
8 0434771 CRANKSHAFT Assembly
9 0326047 Retaining Ring
12 0337087 O-Ring
16 0326749 SEAL RING
17 0434844 BEARING, Wrist pin
18 5005208 ROD ASSY., Connecting This part replaces 0435355.
20 0396041 BEARING, Connecting rod
21 0352960 BEARING RACE, Center main This part replaces 0320499.
22 0436254 RING SET, Standard
23 0436860 PISTON, Port, standard
23 5006690 Pstn&Ring Kit This part replaces 0436859.
23 5006711 Pstn&Rng Kit This part replaces 0436862.
23 5006713 Pstn&Rng Kit This part replaces 0436861.
27 0314416 BUMBER, Advance screw
31 5007190 BEARING Assembly, Center main This part replaces 0387041.
32 5007695 CRANKCASE HEAD Assembly, Lower This part replaces 0434792.
