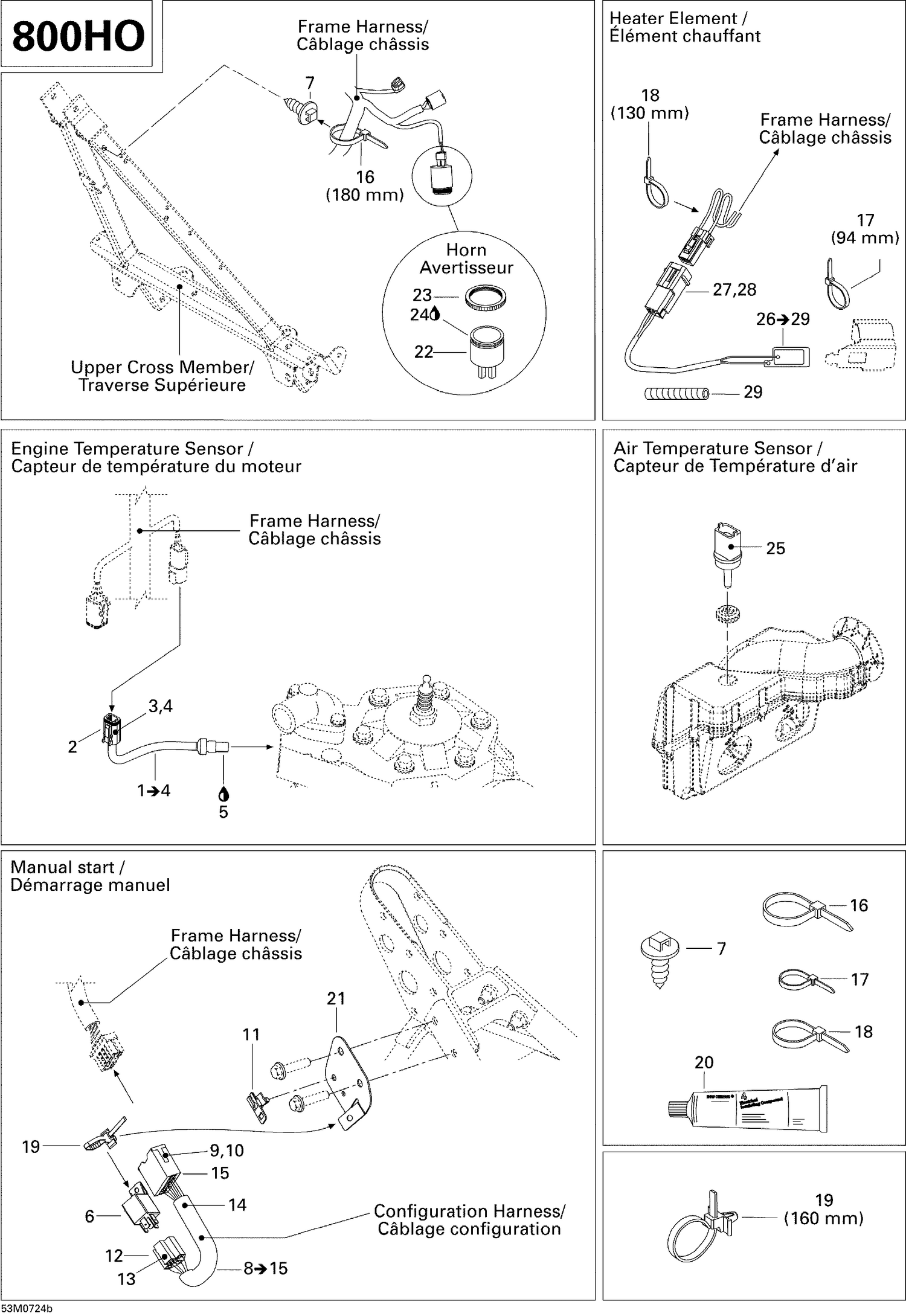

| Ref | Part Number | Description |
|---|
| 2 |
278000739 |
Male Connector, 4 Circuits |
| 3 |
278000632 |
Female Terminal |
| 4 |
515175677 |
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 5 |
219704455 |
Was 293800018 Loctite 592, 50 ml |
| 6 |
710010053 |
Relay This part replaces 410113200. |
| 7 |
293730040 |
Mount Dart This part replaces 293730018. |
| 9 |
515175232 |
Male Terminal |
| 10 |
515175273 |
MALE TERMINAL - Call your local BRP dealership |
| 11 |
515175283 |
Housing Support |
| 12 |
409209900 |
Female Housing, 5 Circuits |
| 13 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 14 |
219704400 |
Was 409901800 Tubing (13 mm) |
| 15 |
515175720 |
MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership |
| 16 |
414115200 |
Tie-Rap 180 mm |
| 17 |
293750001 |
Tie Wrap 94 mm |
| 18 |
293750002 |
Tie Wrap 142 mm |
| 19 |
293750009 |
Tie-Rap 173 mm |
| 20 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 21 |
515176020 |
HARNESS SUPPORT - Call your local BRP dealership |
| 22 |
515176035 |
HORN - Call your local BRP dealership |
| 23 |
414805101 |
PLASTIC NUT - Call your local BRP dealership |
| 24 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 25 |
270600000 |
AIR TEMPERATURE SENSOR - Call your local BRP dealership |
| 27 |
515175654 |
Male Terminal Housing, 2 Circuits |
| 28 |
515175232 |
Male Terminal |
