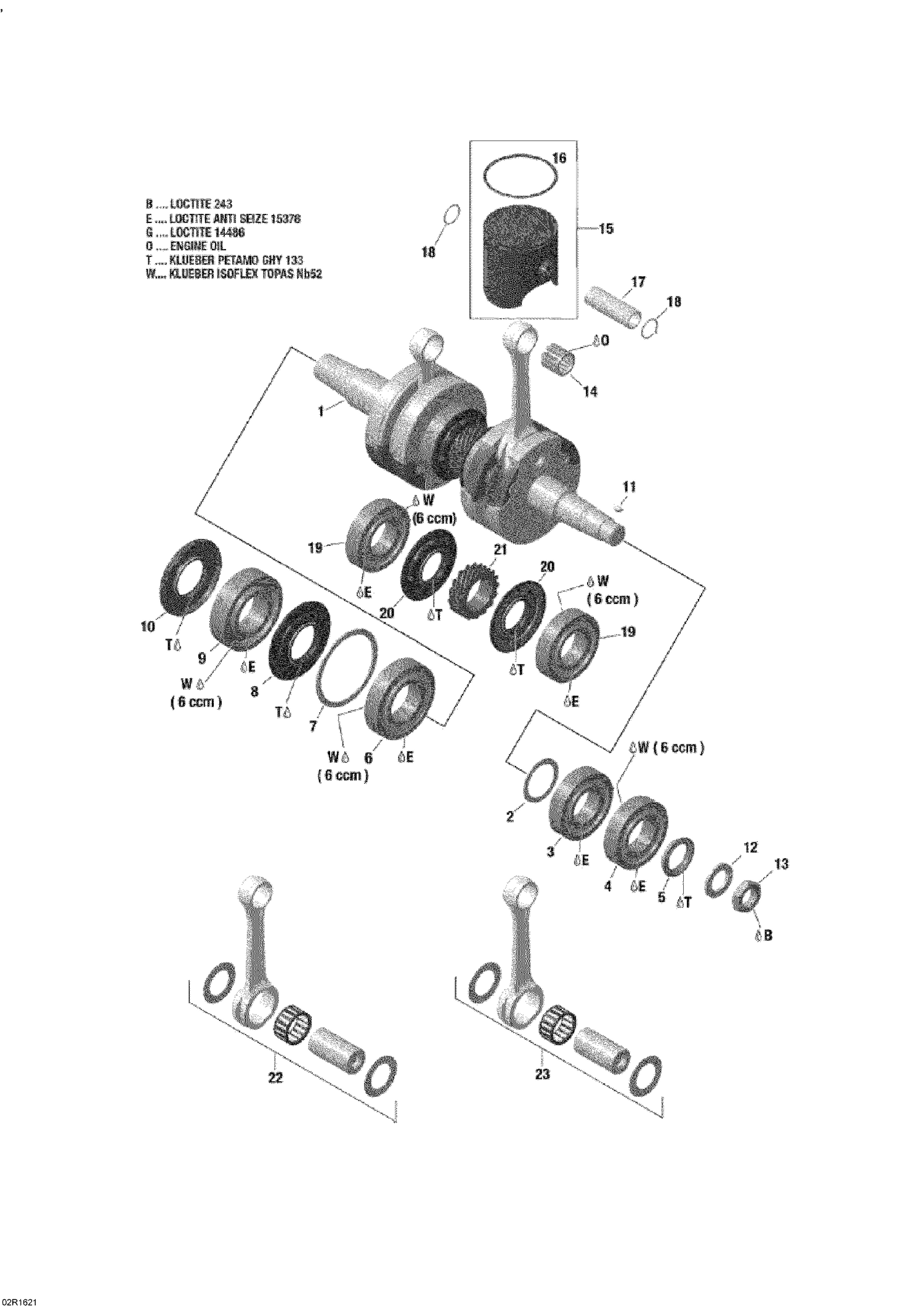

01- Crankshaft And Piston - 600 RS
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| B | Not | Available As Spare Part - Loctite 243 |
| E | Not | Available As Spare Part - Loctite 8151 (Antiseize) |
| G | Not | Available As Spare Part - Loctite 648 |
| O | Not | Available As Spare Part - Engine Oil |
| T | Not | Available As Spare Part - Grease |
| 2 | 420827767 | Shim |
| 3 | 420832575 | Ball Bearing 6207 |
| 4 | 420832575 | Ball Bearing 6207 |
| 6 | 420832600 | Ball Bearing 6208 |
| 7 | 420926190 | Washer |
| 8 | 420931910 | Oil Seal |
| 9 | 420832671 | Bearing Ball This part replaces 420832603. |
| 10 | 420931284 | Oil Seal |
| 11 | 420246015 | Woodruff Key |
| 12 | 420945759 | Lock Washer |
| 14 | 420832445 | Needle Bearing |
| 16 | 420815295 | Semi-Trapez Ring |
| 17 | 420916413 | Piston Pin |
| 19 | 420832575 | Ball Bearing 6207 |
| 20 | 420931455 | Oil Seal |
| 21 | 420834355 | CENTRAL GEAR - Call your local BRP dealership |
| 22 | 420891637 | ENS.TIGE REP. *KIT-ROD REPAIR - Call your local BRP dealership |
| 23 | 420891639 | ROD REPAIR KIT - Call your local BRP dealership |
