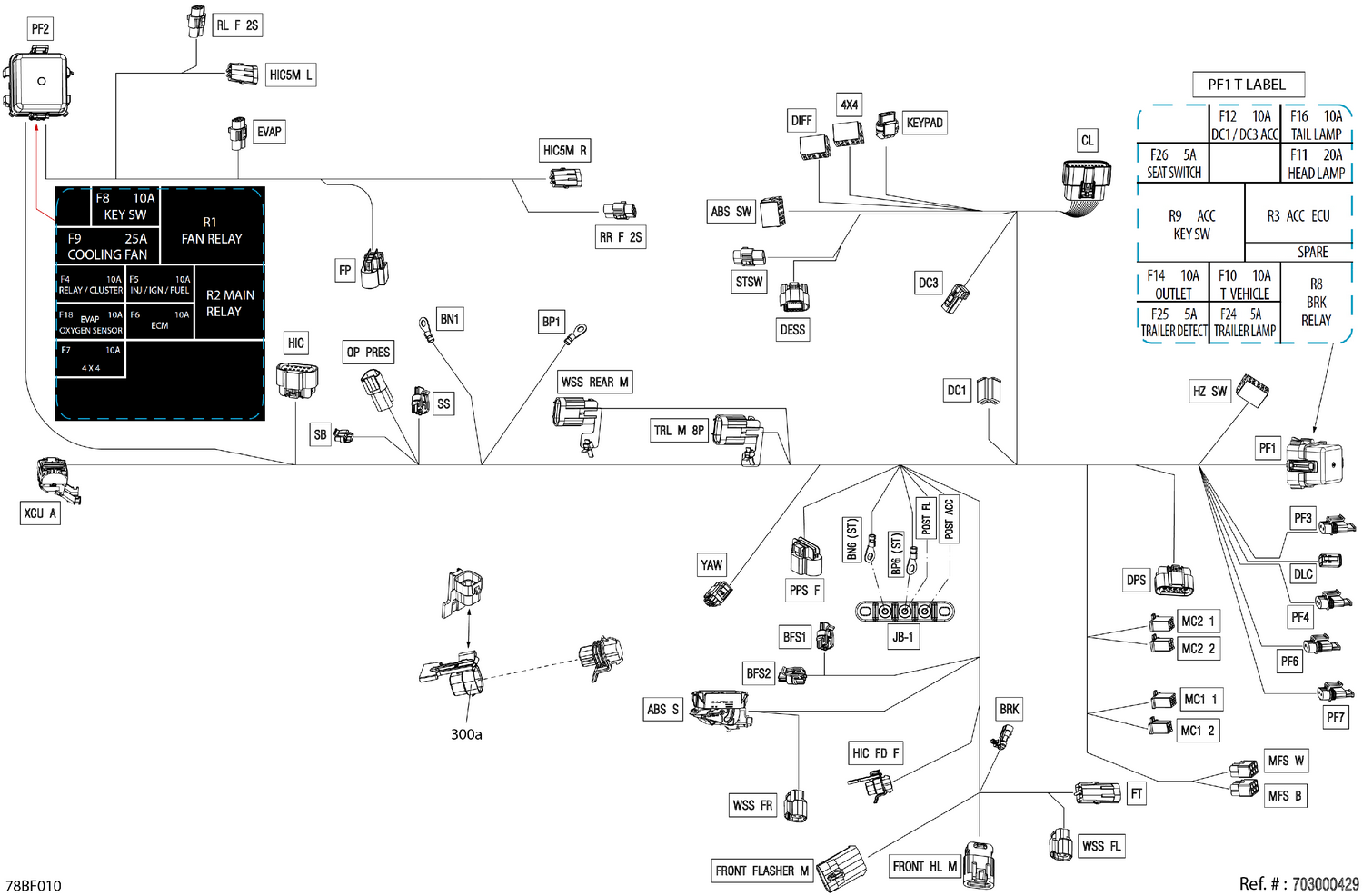

08- Electric - Main Harness - 710008859
Parts (118)
| Ref | Part Number | Description |
|---|---|---|
| BFS1 | 515177192 | Female Housing, 2 Circuits |
| BFS1 | 710001152 | Lock |
| BFS1 | 710001163 | Wire Seal |
| BFS1 | 710001164 | Female Terminal |
| BFS2 | 515177192 | Female Housing, 2 Circuits |
| BFS2 | 710001152 | Lock |
| BFS2 | 710001163 | Wire Seal |
| BFS2 | 710001164 | Female Terminal |
| BN1 | 278001392 | Open Barrel Terminal |
| BP1 | 278000992 | Open Barrel |
| BP1 | 515177246 | Shrink Tubing, 6 mm |
| BRK | 409209400 | Male Terminal Housing, 2 Circuits |
| BRK | 515176164 | Male Terminal |
| BRK | 515176621 | Wire Seal |
| CL | 278002858 | Female Housing 20 Circuits |
| CL | 515178018 | Female Terminal |
| CL | 515178349 | Female Terminal 22 AWG |
| D2 | 409012700 | Diode |
| DC1 | 710005373 | Housing |
| DC1 | 710005952 | Female Terminal |
| DC3 | 515175231 | Female Terminal |
| DC3 | 515175658 | Female Housing, 2 Circuits |
| DESS | 710001163 | Wire Seal |
| DESS | 710001164 | Female Terminal |
| DESS | 710007151 | Female Delphi Connector 5 Cavities |
| DESS | 710007243 | Lock |
| DIFF | 710002003 | Housing Connector |
| DIFF | 710003047 | Terminal |
| DIFF | 710005491 | Female Terminal |
| DIFF | 710006076 | Label |
| DLC | 710002705 | Lock |
| DLC | 710002706 | Female Housing 6 Circuits |
| DLC | 710005438 | Female Terminal |
| DLC | 710005439 | Female Terminal |
| DPS | 278002186 | Wire Seal |
| DPS | 278002187 | Female Terminal |
| DPS | 710001222 | Lock |
| DPS | 710001873 | Terminal This part replaces 710001765. |
| DPS | 710002075 | Plug |
| DPS | 710003153 | Seal |
| DPS | 710004989 | Female Housing |
| DPS | 710005098 | Lock |
| EVAP | 409012100 | Female Terminal |
| EVAP | 710000402 | Wire Seal |
| FP | 278002185 | Male Housing, 4 Circuits |
| FP | 278002186 | Wire Seal |
| FP | 278002187 | Female Terminal |
| FP | 710001222 | Lock |
| FP | 710001873 | Terminal This part replaces 710001765. |
| FP | 710003153 | Seal |
| FP | 710006214 | Lock |
| FRONT | FLASHER | M 409210100 Clip Bracket Connector (edge) 409210100 |
| FRONT | HL | M 409210100 Clip Bracket Connector (edge) 409210100 |
| FT | 278000217 | Female Housing, 2 Circuits |
| FT | 278000218 | Wire Seal |
| FT | 409004300 | Male Terminal |
| FT | 710000992 | Clip |
| HIC | 710001222 | Lock |
| HIC | 710001225 | Cap |
| HIC | 710001228 | Terminal |
| HIC | 710001229 | Terminal |
| HIC | 710001233 | Seal |
| HIC | 710001332 | Seal Wire |
| HIC | 710001930 | Female Housing, 12 Circuits |
| HIC | 710006333 | Lock |
| HIC | FD | F 710001132 Housing 710001132 |
| KEYPAD | 710001161 | Housing |
| KEYPAD | 710001162 | Lock |
| KEYPAD | 710001163 | Wire Seal |
| KEYPAD | 710001164 | Female Terminal |
| PF1 | 278000216 | Wire Seal |
| PF1 | 278000218 | Wire Seal |
| PF1 | 278001065 | Wire Seal |
| PF1 | 278002578 | Female Terminal |
| PF1 | 278003448 | Fuse Base Ass'y |
| PF1 | 278003553 | Fuse Cover |
| PF1 | 293300198 | Seal |
| PF1 | 515177177 | Female Terminal |
| PF1 | 710000048 | Wire Seal |
| PF1 | 710000918 | Female Terminal |
| PF1 | 710005671 | Housing Support |
| PF1 | T | LABEL 710007045 Fuse Box Decal 710007045 |
| PF2 | 278000216 | Wire Seal |
| PF2 | 278000218 | Wire Seal |
| PF2 | 278001065 | Wire Seal |
| PF2 | 278002578 | Female Terminal |
| PF2 | 278003448 | Fuse Base Ass'y |
| PF2 | 278003553 | Fuse Cover |
| PF2 | 293300198 | Seal |
| PF2 | 710000918 | Female Terminal |
| PF2 | 710006792 | Fuse Box Decal |
| PF3 | 278001325 | Fuse Holder |
| PF3 | 710000113 | Female Terminal |
| PF4 | 278001325 | Fuse Holder |
| PF4 | 710000113 | Female Terminal |
| PF4 | 710000357 | Female Terminal |
| PF6 | 278001325 | Fuse Holder |
| PF6 | 710000357 | Female Terminal |
| PF7 | 278001987 | Fuse Holder |
| PF7 | 710000113 | Female Terminal |
| SB | 278001482 | Seal |
| SB | 710001134 | Female Terminal |
| SB | 710002043 | Lock |
| SB | 710002177 | Housing |
| SS | 515177192 | Female Housing, 2 Circuits |
| SS | 710001152 | Lock |
| SS | 710001163 | Wire Seal |
| SS | 710001164 | Female Terminal |
| STSW | 409012100 | Female Terminal |
| STSW | 710000402 | Wire Seal |
| WSS | REAR | M 710002493 Holder 710002493 |
| YAW | 710003730 | Housing |
| YAW | 710006230 | Wire Seal |
| 4x4 | 710002000 | Housing |
| 4x4 | 710003047 | Terminal |
| 4x4 | 710005491 | Female Terminal |
| 300 | 710008859 | Main Wiring Harness |
| 300a | 710007680 | Connector Guard |
