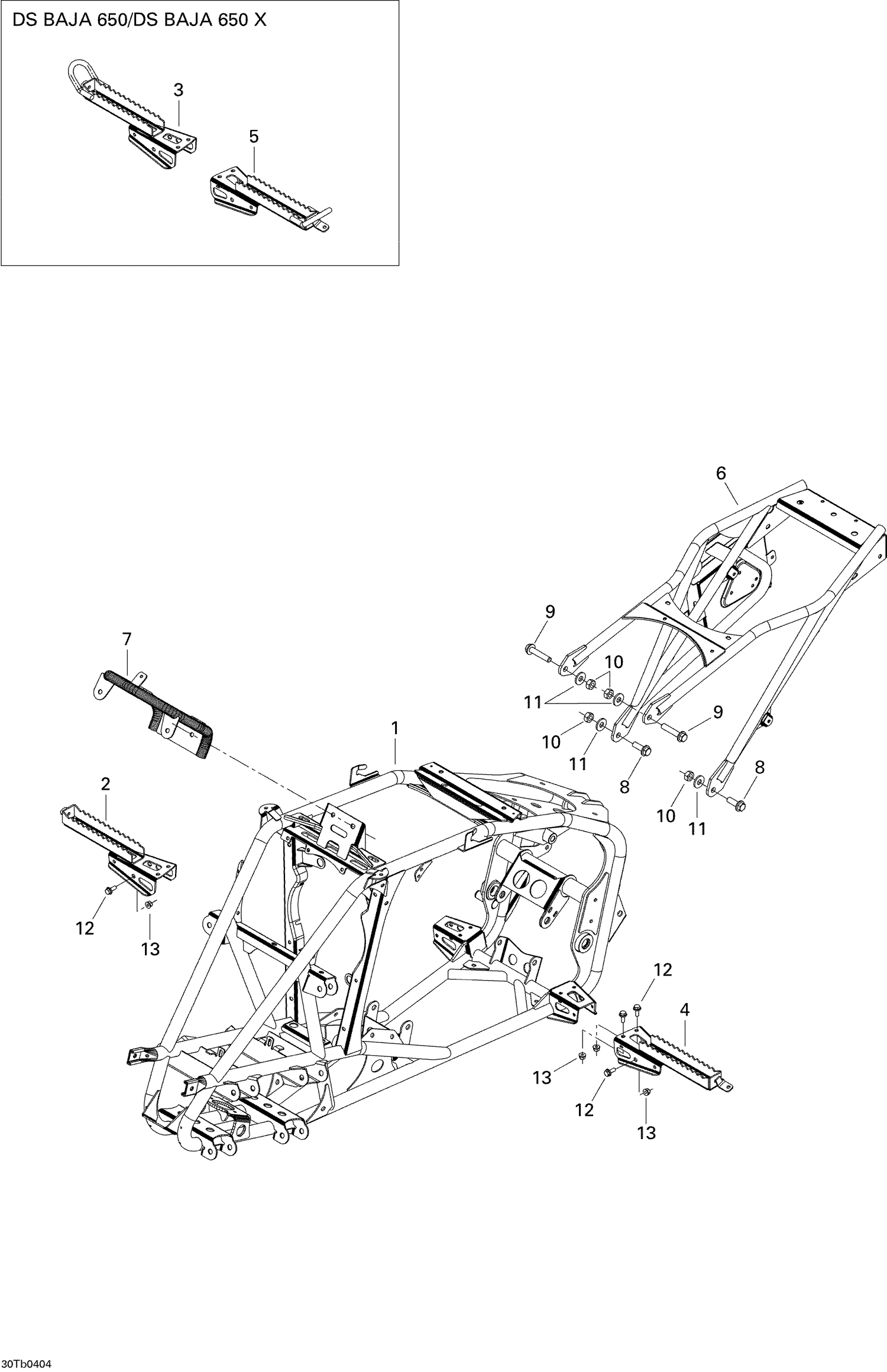

09- Frame
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 705200678 | Frame |
| 6 | 705200716 | Frame Extension |
| 7 | 705200717 | Box Support |
| 8 | 207503087 | Hex. Flange Screw M10 X 30, Scotch Grip |
| 9 | 207505087 | HEX. FLANGED SCREW M10 X 50, SCOTCH GRIP - Call your local BRP dealership |
| 10 | 232001487 | Hex. Nut M10 |
| 11 | 224002251 | FLAT WASHER - Call your local BRP dealership |
| 12 | 207661644 | Hex. Flange Screw M6 X 16 |
