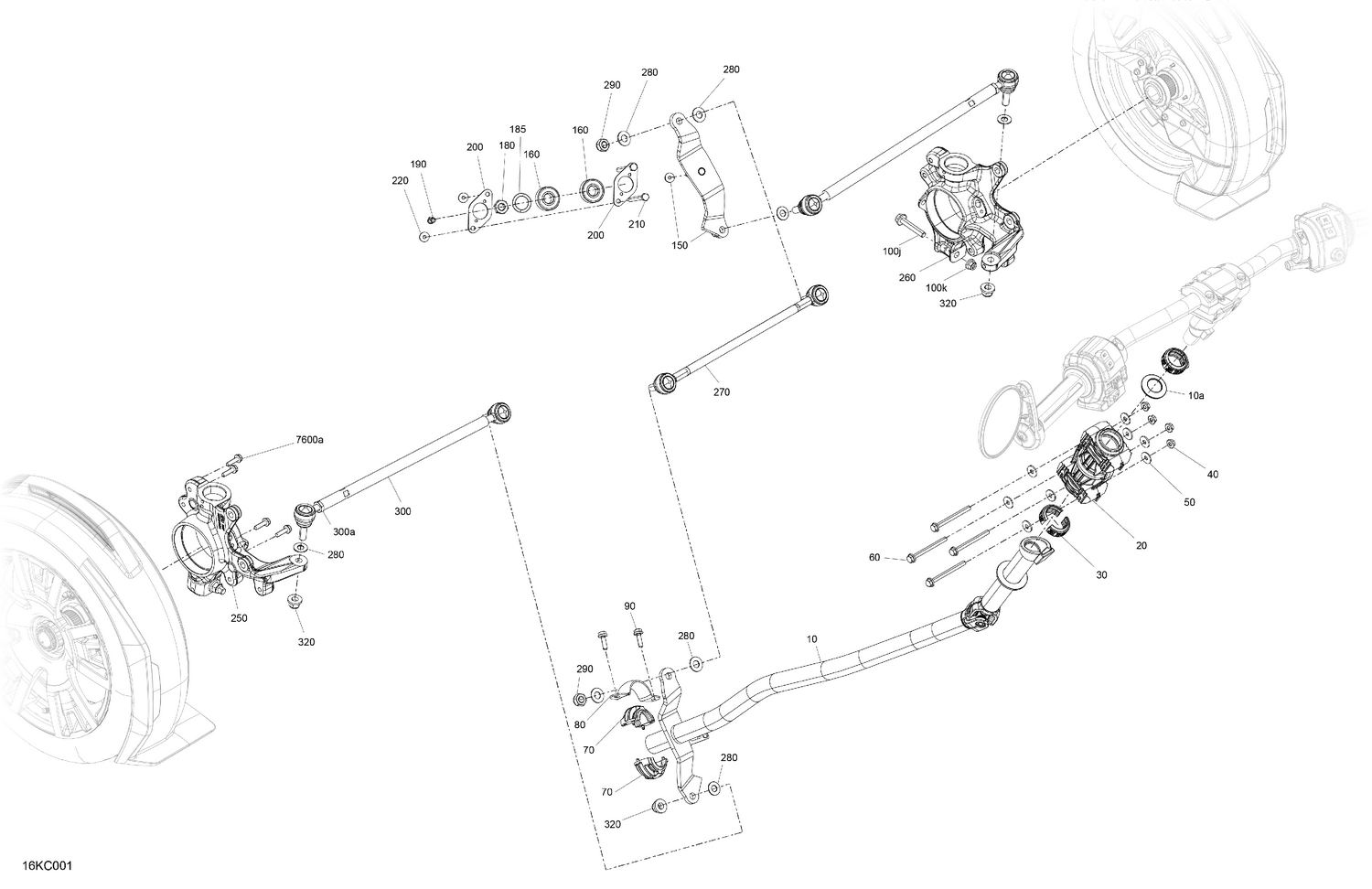

03- Mechanic - Steering Column
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 709402509 | Washer |
| 20 | 709403149 | Steering Bushing This part replaces 709401974. |
| 30 | 709402920 | Upper Vibration Damper |
| 40 | 233161414 | Hex. Flange Nut M6 |
| 50 | 250200164 | Flat washer M6 |
| 60 | 207567044 | Hex. Flange Screw M6x70, Scotch Grip |
| 70 | 709402919 | Half Bushing |
| 80 | 709401969 | RH Lower Column Attachment |
| 90 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 100j | 207605554 | Hex. Flange Screw M10 X 55 |
| 100k | 233201466 | Flange Elastic Nut M10 |
| 150 | 219800520 | Pitman Arm Kit |
| 160 | 709402450 | Bearing |
| 180 | 250100216 | Hex. Jam Nut M12 |
| 185 | 250001192 | Spring Washer |
| 190 | 709401527 | Sensor Sleave |
| 200 | 709402096 | Sensor Support |
| 210 | 207066544 | Hex. Screw M6 X 65 |
| 220 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 250 | 709401922 | LH Knuckle |
| 260 | 709401923 | RH Knuckle |
| 270 | 709401954 | Tie Rod Ass'y |
| 280 | 506152582 | Washer |
| 290 | 232501416 | Elastic Flange Nut M10 |
| 300a | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 320 | 250100165 | Hex. Flange Elastic Nut M10 |
