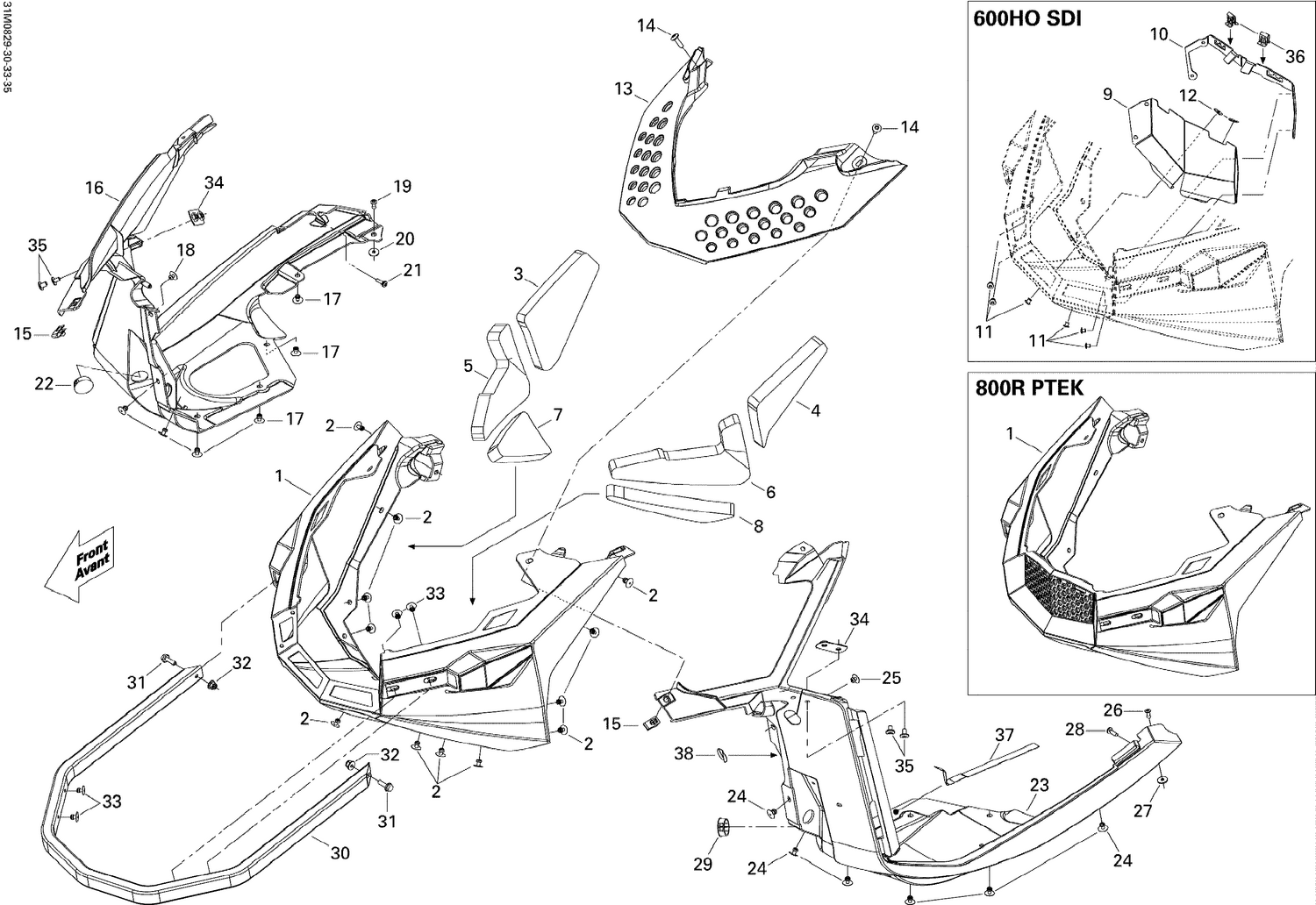

| Ref | Part Number | Description |
|---|
| 2 |
293150104 |
Pop Rivet 3/16" |
| 3 |
502007210 |
RH Foam Upper This part replaces 502006829. |
| 4 |
502007211 |
LH Foam Upper This part replaces 502006830. |
| 5 |
502007212 |
RH Middle Foam This part replaces 502006906. |
| 6 |
502007213 |
LH Middle Foam This part replaces 502006907. |
| 7 |
502007214 |
RH Lower Foam This part replaces 502006908. |
| 8 |
502007215 |
LH Lower Foam This part replaces 502006909. |
| 9 |
XXX |
Not Available As Spare Parts |
| 10 |
XXX |
Not Available As Spare Parts |
| 11 |
XXX |
Not Available As Spare Parts |
| 12 |
XXX |
Not Available As Spare Parts |
| 13 |
502007068 |
Deep Black Bottom Pan Cap This part replaces 502006967. |
| 14 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 15 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 16 |
502006831 |
Black, RH Bottom Pan |
| 17 |
293150104 |
Pop Rivet 3/16" |
| 18 |
293150103 |
Pop Rivet 3/16" |
| 19 |
390402300 |
Pop Rivet 3/16" |
| 20 |
517124300 |
Washer |
| 21 |
250000720 |
Torx Screw K50 X 16 This part replaces 250000146. |
| 22 |
414916600 |
Black, Nylon Cap |
| 23 |
502006832 |
Deep Black LH Bottom Pan |
| 24 |
293150104 |
Pop Rivet 3/16" |
| 25 |
293150103 |
Pop Rivet 3/16" |
| 26 |
390402300 |
Pop Rivet 3/16" |
| 27 |
517124300 |
Washer |
| 28 |
250000720 |
Torx Screw K50 X 16 This part replaces 250000146. |
| 29 |
414916600 |
Black, Nylon Cap |
| 30 |
502007116 |
Black Front Bumper This part replaces 502006833. |
| 31 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 32 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 33 |
293150104 |
Pop Rivet 3/16" |
| 34 |
502006949 |
Plate |
| 35 |
250000995 |
Torx-truss M/s M6 X 10 This part replaces 250000210. |
| 36 |
XXX |
Not Available As Spare Parts |
| 37 |
219704476 |
Gasket, Neoprene 2000Mm Long This part replaces 219704372. |
