Parts Catalog

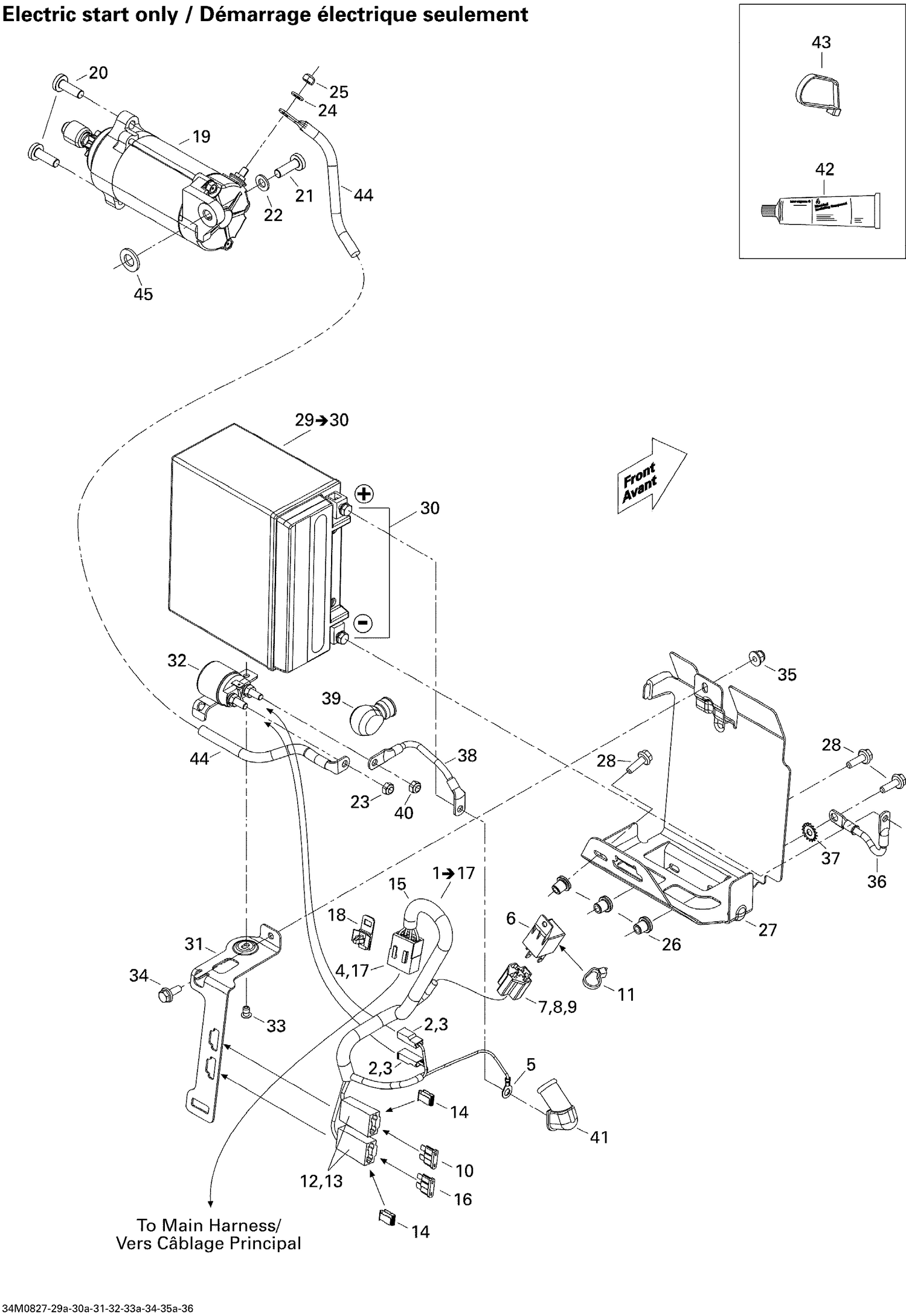

10- Battery And Starter 800R

Parts (45)

Ref	Part Number	Description
2	409010100	Female Terminal
3	409010400	Female Terminal Housing, 1 Circuit
4	515175232	Male Terminal
5	278000992	Open Barrel
6	710010053	Relay This part replaces 410113200.
7	409209900	Female Housing, 5 Circuits
8	561503100	FEMALE TERMINAL - Call your local BRP dealership
9	561503100	FEMALE TERMINAL - Call your local BRP dealership
10	410917200	Fuse, 30 Amperes
11	293750002	Tie Wrap 142 mm
12	409004200	Female Terminal
13	409004000	Fuse Holder
14	409014200	CLIP - Call your local BRP dealership
15	219704399	Was 409901700 Tubing (9 mm)
16	278000344	Fuse, 5 Amperes
17	515175817	Male Terminal Housing, 8 Circuits
18	515175283	Housing Support
19	515176399	STARTER - Call your local BRP dealership
20	250000752	Torx Screw M8 X 1.25 X 25, Scotch Grip This part replaces 250000248.
21	250000752	Torx Screw M8 X 1.25 X 25, Scotch Grip This part replaces 250000248.
22	250200008	Flat Washer With Teflon 8 mm
23	232561414	Elastic Stop Nut M6
24	234061410	Flat Washer 6 mm
25	232561414	Elastic Stop Nut M6
26	293450275	Insert This part replaces 415107300.
27	515176886	BATTERY SUPPORT ASS'Y - Call your local BRP dealership This part replaces 515176601.
28	207662044	Hex. Flange Screw M6 X 20
30	250000282	Battery Bolt Kit This part replaces 295500849.
31	515177008	BATTERY STRIP - Call your local BRP dealership This part replaces 515176368.
32	515176501	Starter Relay
33	390402200	Pop Rivet 3/16"
34	207661644	Hex. Flange Screw M6 X 16
35	233261414	Hex. Flange Elastic Nut M6 x 1.0
36	515176358	Ground Wire
37	250200041	Lock Washer Serrated M6
38	515176535	BATTERY WIRE - Call your local BRP dealership
39	570151000	Protection Cap
40	232561414	Elastic Stop Nut M6
41	710000495	Protector Cap
42	219704453	Was 293550004 Dielectric Grease, 150 g
43	293750001	Tie Wrap 94 mm
43	293750002	Tie Wrap 142 mm
43	293750008	Tie Wrap 368 mm
43	414115200	Tie-Rap 180 mm
44	515176534	BATTERY WIRE - Call your local BRP dealership
