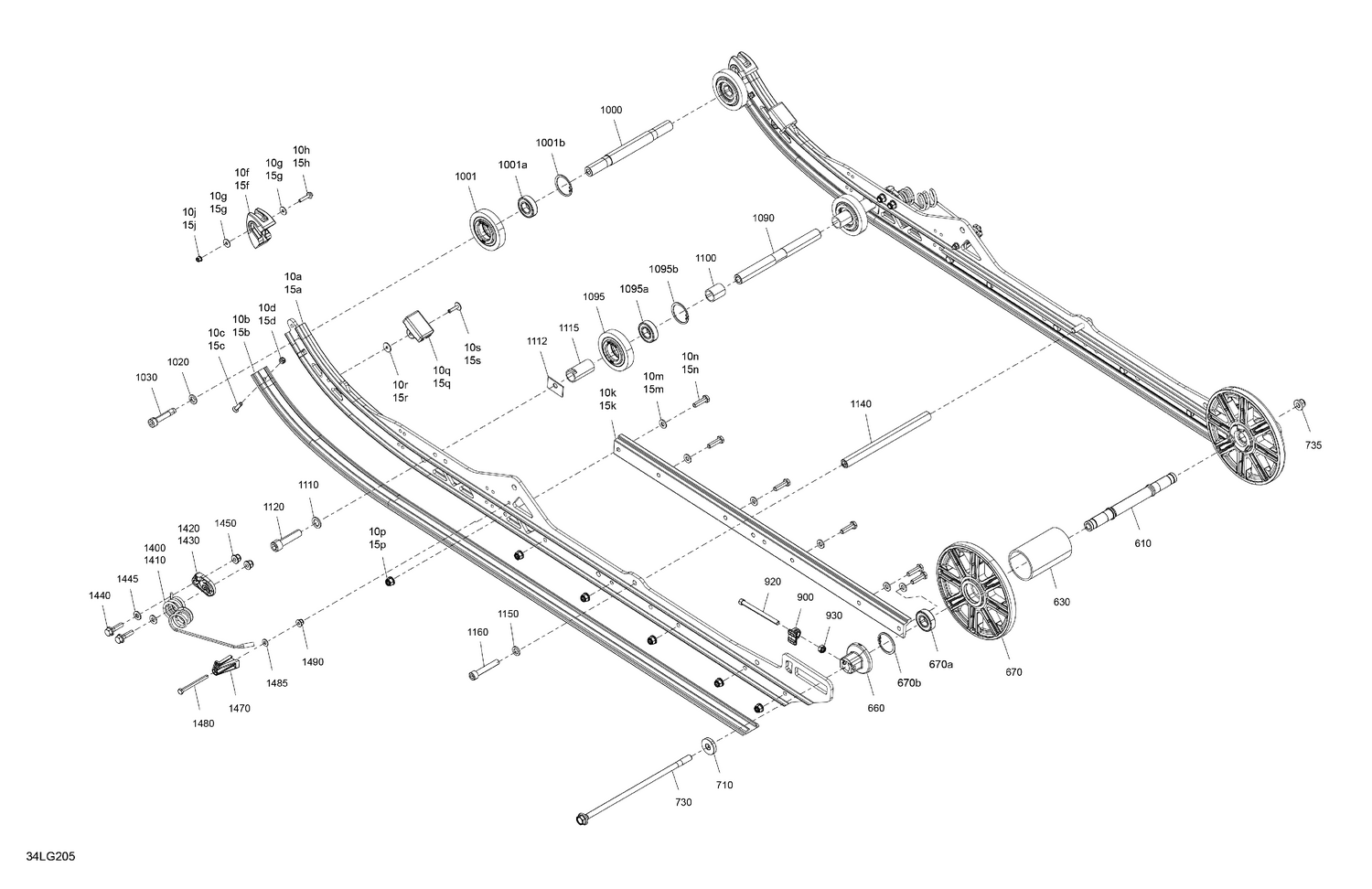

05- Suspension - Rear - Lower Section
Parts (67)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 503198248 | Platinum Silver, Rail Suspension 147 |
| 10b | 503197004 | Slide Suspension |
| 10c | 208562531 | Phillips Screw M6 X 25 |
| 10d | 232561414 | Elastic Stop Nut M6 |
| 10f | 503196874 | Rail Protector |
| 10g | 250200140 | Washer |
| 10h | 207652544 | Hex. Flange Screw M5 X 25 |
| 10j | 233251434 | Flanged Elastic Nut M5 This part replaces 233251414. |
| 10k | 503197669 | Rail Reinforcement |
| 10m | 503192494 | Washer |
| 10n | 207183054 | Hex. Cap Screw M8 X 30 |
| 10p | 233281466 | Elastic Flang Nut M8 |
| 10q | 503190576 | Rubber Stopper |
| 10r | 503191273 | Washer |
| 10s | 293150256 | Rivet Ornit 4.8 X 27.5 |
| 15a | 503198248 | Platinum Silver, Rail Suspension 147 |
| 15b | 503197004 | Slide Suspension |
| 15c | 208562531 | Phillips Screw M6 X 25 |
| 15d | 232561414 | Elastic Stop Nut M6 |
| 15f | 503196874 | Rail Protector |
| 15g | 250200140 | Washer |
| 15h | 207652544 | Hex. Flange Screw M5 X 25 |
| 15j | 233251434 | Flanged Elastic Nut M5 This part replaces 233251414. |
| 15k | 503197669 | Rail Reinforcement |
| 15m | 503192494 | Washer |
| 15n | 207183054 | Hex. Cap Screw M8 X 30 |
| 15p | 233281466 | Elastic Flang Nut M8 |
| 15q | 503190576 | Rubber Stopper |
| 15r | 503191273 | Washer |
| 15s | 293150256 | Rivet Ornit 4.8 X 27.5 |
| 610 | 503196252 | Rear Axle |
| 630 | 503196947 | Socket |
| 660 | 503196246 | Rear Wheel Support |
| 670a | 503190396 | Ball Bearing |
| 670b | 415129371 | Retaining Ring |
| 710 | 503196357 | Washer |
| 730 | 503195748 | Bolt M10 |
| 735 | 233201466 | Flanged Elastic Nut M10 |
| 900 | 503194266 | Tensioner |
| 920 | 503194267 | Hex. Cap Screw M8 X 95 |
| 930 | 232581414 | Hex. Elastic Stop Nut M8 |
| 1000 | 503197877 | Front Wheel Shaft |
| 1001a | 503190396 | Ball Bearing |
| 1001b | 415129371 | Retaining Ring |
| 1020 | 503192496 | Washer |
| 1030 | 205505054 | Socket Screw |
| 1090 | 503195775 | Shock Lower Shaft |
| 1095a | 503190396 | Ball Bearing |
| 1095b | 415129371 | Retaining Ring |
| 1100 | 503194576 | Spacer |
| 1110 | 503192491 | Washer |
| 1112 | 605449294 | Support Plate |
| 1115 | 503194575 | Spacer |
| 1120 | 205525554 | Socket Screw |
| 1140 | 503191260 | Axle Strap |
| 1150 | 503192496 | Washer |
| 1160 | 205503554 | Socket Head Screw M10 X 35 |
| 1400 | 503198194 | LH Ice Scratcher |
| 1410 | 503198195 | RH Ice Scratcher |
| 1420 | 503194294 | LH Support |
| 1430 | 503194295 | RH Support |
| 1440 | 207683054 | Hex. Flange Screw M8 X 30 |
| 1445 | 503192494 | Washer |
| 1450 | 233281466 | Elastic Flang Nut M8 |
| 1470 | 503196336 | Hook Ass'y |
| 1480 | 207167054 | Hex. Cap Screw M6 X 70 |
| 1485 | 250200039 | Flat Washer |
