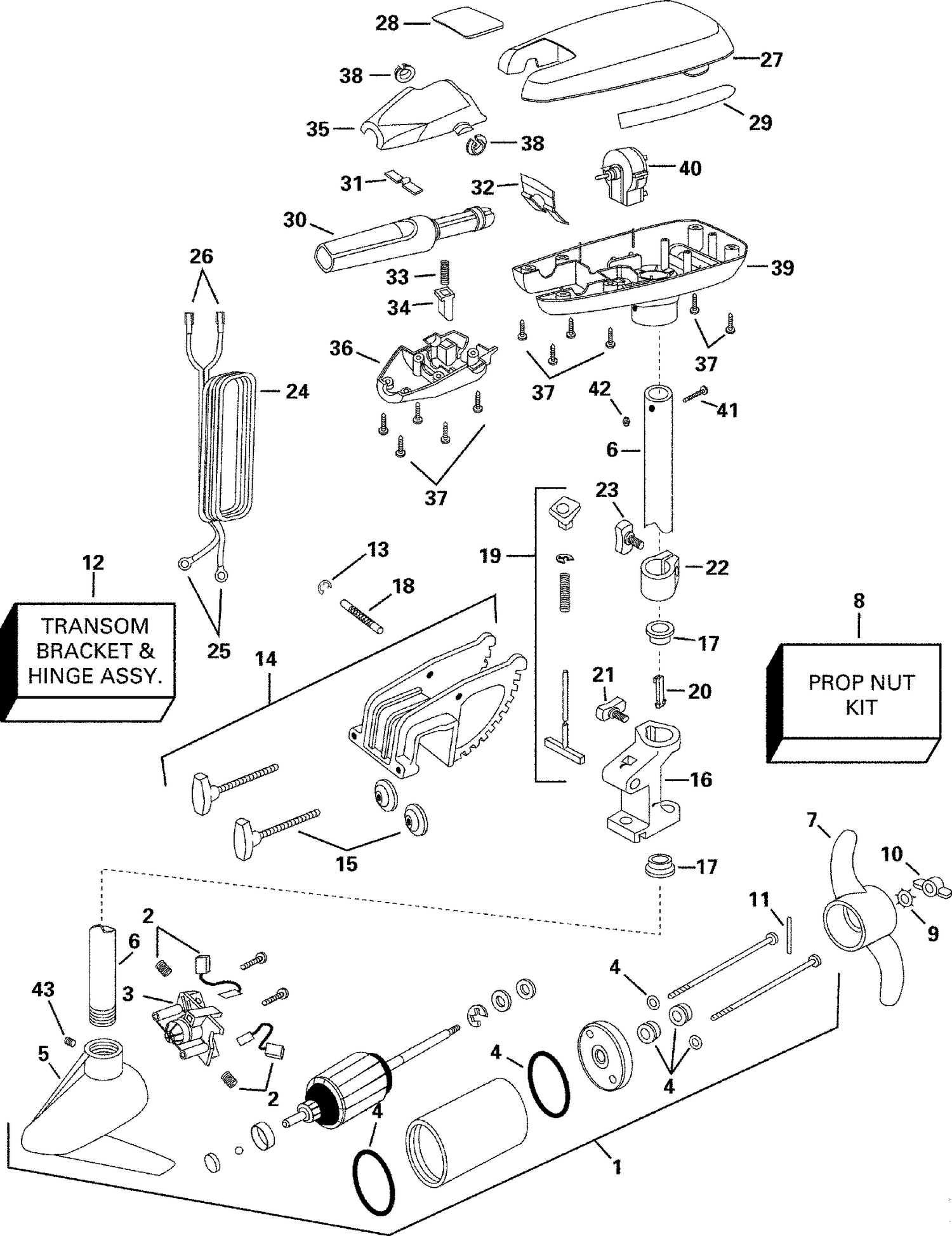

SEAQUEST 36 H
Parts (20)
| Ref | Part Number | Description |
|---|
| 6 |
0128201 |
TUBE, 36 in. |
| 7 |
0772774 |
PROPELLER |
| 8 |
0772777 |
PROP NUT KIT |
| 12 |
0128033 |
BRACKET & HINGE ASSY. |
| 22 |
0128086 |
COLLAR, Depth |
| 28 |
0128204 |
DECAL, Cover |
| 29 |
0128114 |
DECAL, Side |
| 30 |
0128181 |
HANDLE ASSY. |
| 31 |
0127986 |
SPRING, Detent |
| 32 |
0128182 |
SPRING, Tilt detent |
| 33 |
0128183 |
SPRING, Release |
| 34 |
0128184 |
REALEASE BUTTON |
| 35 |
0128185 |
HANDLE, Upper |
| 36 |
0128186 |
HANDLE, Lower |
| 37 |
0127989 |
SCREW |
| 38 |
0127940 |
BEAING, Handle |
| 39 |
0128200 |
CONTROL BOX, Plastic |
| 40 |
0127945 |
SWITCH, 5 Speed |
| 41 |
0128068 |
SCREW |
| 42 |
0128069 |
NUT |
