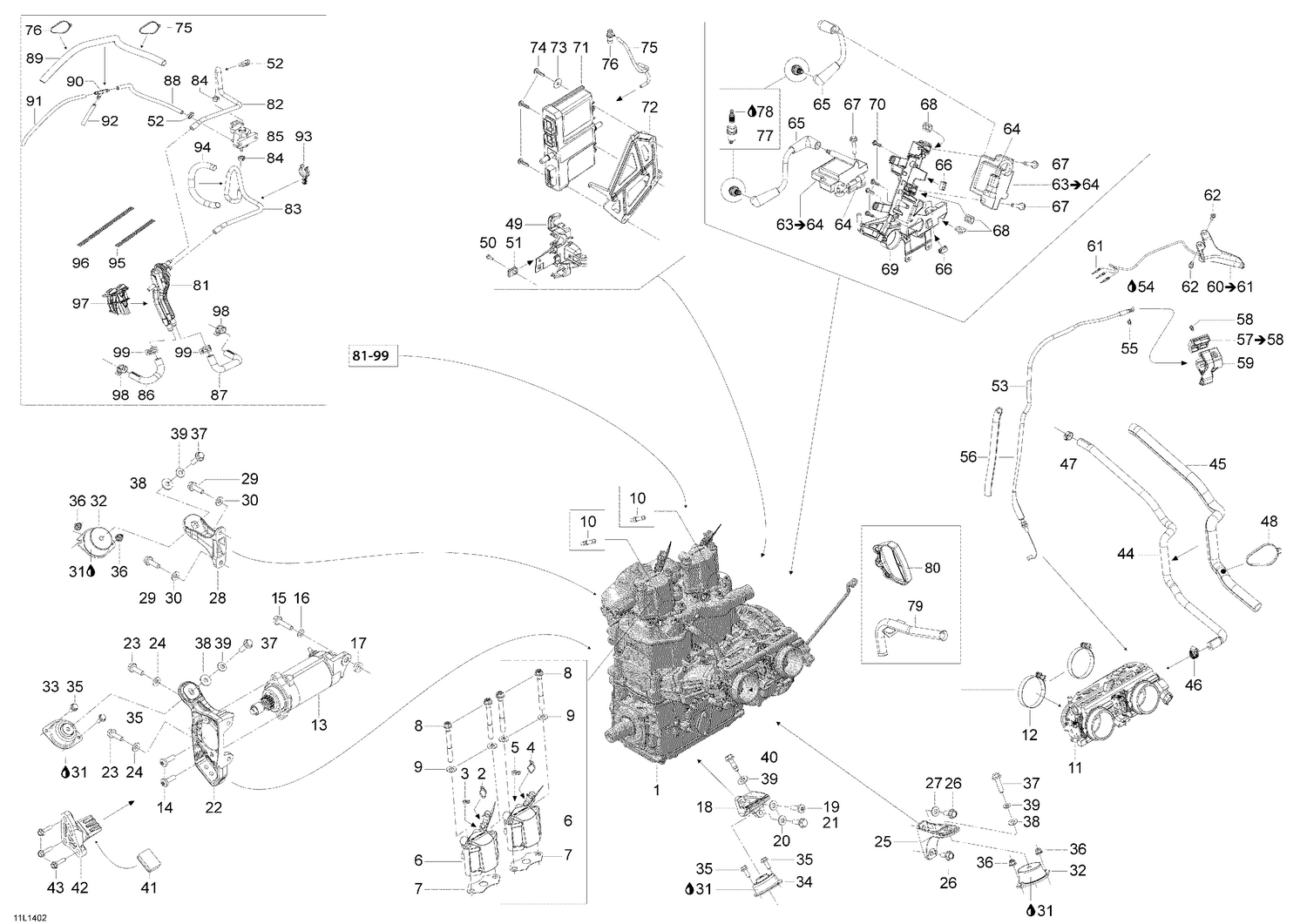

01- Engine And Engine Support

01- Engine And Engine Support

Parts (95)

RefPart NumberDescription
1 Not Available As Spare Part - Engine 600HO E-TEC With Rewind Starter
2 293750002 Tie-Rap 142 mm
3 293750002 Tie-Rap 142 mm
4 293750002 Tie-Rap 142 mm
5 293750002 Tie-Rap 142 mm
6 512061233 Fuel Injector This part replaces 512060919.
7 420430930 Gasket
8 420441187 Flanged Torx Screw M10 X 90 -SW 13/T50
9 234001410 Flat Washer 10 mm
10 420924724 Hose Nipple
11 420889201 Throttle Body This part replaces 420889197.
12 293650158 Clamp
13 515178473 Starter This part replaces 515177389.
14 250000752 Pan HD Torx Screw M8 x 25 This part replaces 250000248.
15 207583544 Hex Flange Screw M8 X 35, Scotch Grip
16 250200008 Flat Washer With Teflon 8 mm
17 515176500 Washer
18 512060478 Rear Support, PTO
19 250000752 Pan HD Torx Screw M8 x 25 This part replaces 250000248.
20 234281474 Conical Spring Washer M8
21 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
22 512060712 FRONT SUPPORT PTO - Call your local BRP dealership
23 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
24 234281474 Conical Spring Washer M8
25 512060559 Rear Support MAG
26 207582044 Hex. Flange Screw M8 X 20, Scotch Grip
27 234281474 Conical Spring Washer M8
28 512060469 Front MAG Support
29 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
30 234281474 Conical Spring Washer M8
31 Not Available As Spare Part - Synthetic Grease
32 512060729 Rubber Mount
33 512061507 Damper_Vibration This part replaces 512060387.
34 512060448 Rubber Mount
35 207561644 Hex Flange Screw M6 X 16, Scotch Grip
36 233261414 Hex. Flange Elastic Nut M6 x 1.0
37 207683044 Hex. Flange Screw M8 X 30
38 503183200 Yellow, Washer
39 234281474 Conical Spring Washer M8
40 250000796 Hex. Flanged Screw M8 X 25 This part replaces 250000570.
41 512060627 Stopper
42 512060576 Stopper Support
43 207562544 Hex. Flange Screw M6 X 25
44 509000793 FORMED HOSE OUTPUT TB - Call your local BRP dealership
45 415080000 Tubing
46 293650172 Clamp
47 293650047 Crimp Clamp, 15.3-706R
48 293750008 Tie-Rap 368 mm
49 512060298 Solenoid Support
50 207652044 Hex. Flange Screw M5 X 20
51 250000958 Panel Nut M5 X 0.8 This part replaces 250000079.
52 293750001 Tie-Rap 94 mm
53 512060633 Throttle Cable
54 619600021 Loctite 8104 (Dielectric Grease), 75ml
55 414274500 Circlip
56 409901700 Tubing 9 mm
58 414440800 Socket Set Screw M8 X 10
59 512060860 Lower Housing
61 515175232 Male Terminal
62 732601143 Flanged Screw
64 710000568 Male terminal housing
65 512061126 Ignition Cable This part replaces 512060094.
66 710000992 Clip
67 250000253 Hex. Flange Screw M6 x 30
68 293100003 Nut
69 512060888 Support
70 241151640 Hex. Flanged Screw K50 x 16
71 512060780 Calibrated Module 600 E-TEC This part replaces 512060912.
72 512060858 Calibrated Module Support
73 250200040 Flat Washer
74 250000297 Truss Head Torx Screw K50 x 20
75 415080100 Line
76 414814100 Male Connector
77 415130430 Spark Plug NGK PZFR6F This part replaces 415129432.
78 619600021 Loctite 8104 (Dielectric Grease), 75ml
79 512060828 GUIDE TUBE - Call your local BRP dealership
80 512060136 Starter Grip
81 512060692 Manifold
82 415080200 HOSE, POLYURETHANE - Call your local BRP dealership
83 415080200 HOSE, POLYURETHANE - Call your local BRP dealership
84 293650043 Clamp
85 270600005 Solenoid Valve This part replaces 512060774.
86 512060695 Hose
87 512060694 Hose
88 270000374 Hose 4.3 mm, 220 mm
89 409901700 Tubing 9 mm
90 293710068 T-Fitting
91 270000374 Hose 4.3 mm, 180 mm
92 270000374 Hose 4.3 mm, 50 mm
93 512060762 HOSE SUPPORT - Call your local BRP dealership
94 415079900 Protector Tube, 175 mm
95 512060814 SPRING - Call your local BRP dealership
96 512060807 SPRING - Call your local BRP dealership
97 512060769 Support
98 293650214 Spring Clamp
