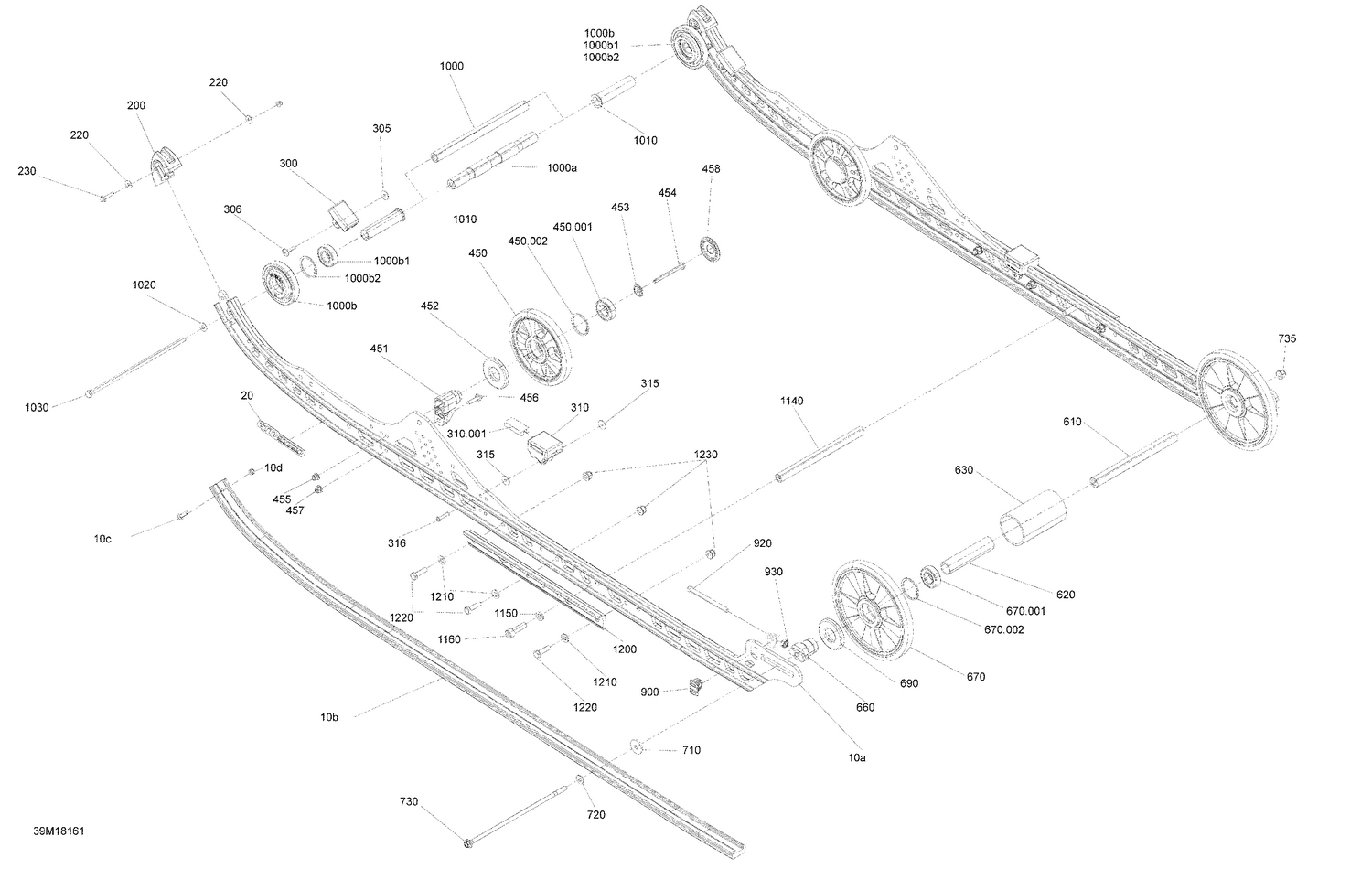

08- Rear Suspension Freeride - Package 165 - Inferior
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 10c | 208562531 | Phillips Screw M6 X 25 |
| 10d | 232561414 | Elastic Stop Nut M6 |
| 20 | 516006381 | Runner Decal |
| 200 | 503196874 | Rail Protector This part replaces 503194249. |
| 220 | 250200140 | Washer |
| 230 | 207652544 | Hex. Flange Screw M5 X 25 |
| 300 | 503190576 | Rubber Stopper |
| 305 | 503191273 | Washer |
| 306 | 293150224 | Pop Rivet 3/16 |
| 315 | 503191273 | Washer |
| 316 | 293150013 | Pop Rivet 3/16" |
| 451 | 503193894 | Casted Support |
| 452 | 503190434 | Labyrinth Seal |
| 453 | 503191820 | Wheel Cup M6 |
| 454 | 250000944 | Hex. Flange Screw M6 X 70 |
| 455 | 233261466 | Hex. Flange Elastic Nut M6 |
| 456 | 250000945 | Hex. Flange Screw M6 X 25 |
| 457 | 233261466 | Hex. Flange Elastic Nut M6 |
| 458 | 503192771 | Black, Wheel Cap |
| 610 | 503194261 | Rear Axle |
| 620 | 503194280 | Spacer |
| 630 | 503194286 | Bushing |
| 660 | 503194747 | Tip |
| 690 | 503190434 | Labyrinth Seal |
| 710 | 503194264 | Washer |
| 720 | 503192494 | Washer |
| 730 | 503194265 | Bolt |
| 735 | 233281466 | Elastic Flange Nut M8 |
| 900 | 503194266 | Tensioner |
| 920 | 503194267 | Hex. Cap Screw M8 X 95 |
| 930 | 232581414 | Hex. Elastic Stop Nut M8 |
| 1020 | 503192494 | Washer |
| 1030 | 503192440 | Bolt M8 X 248mm |
| 1140 | 503191260 | Axle Strap |
| 1150 | 503192496 | Washer |
| 1160 | 205503554 | Socket Head Screw M10 X 35 |
| 1200 | 503193853 | Black Runner Reinforcement |
| 1210 | 503192494 | Washer |
| 1220 | 207183054 | Hex. Cap Screw M8 X 30 |
