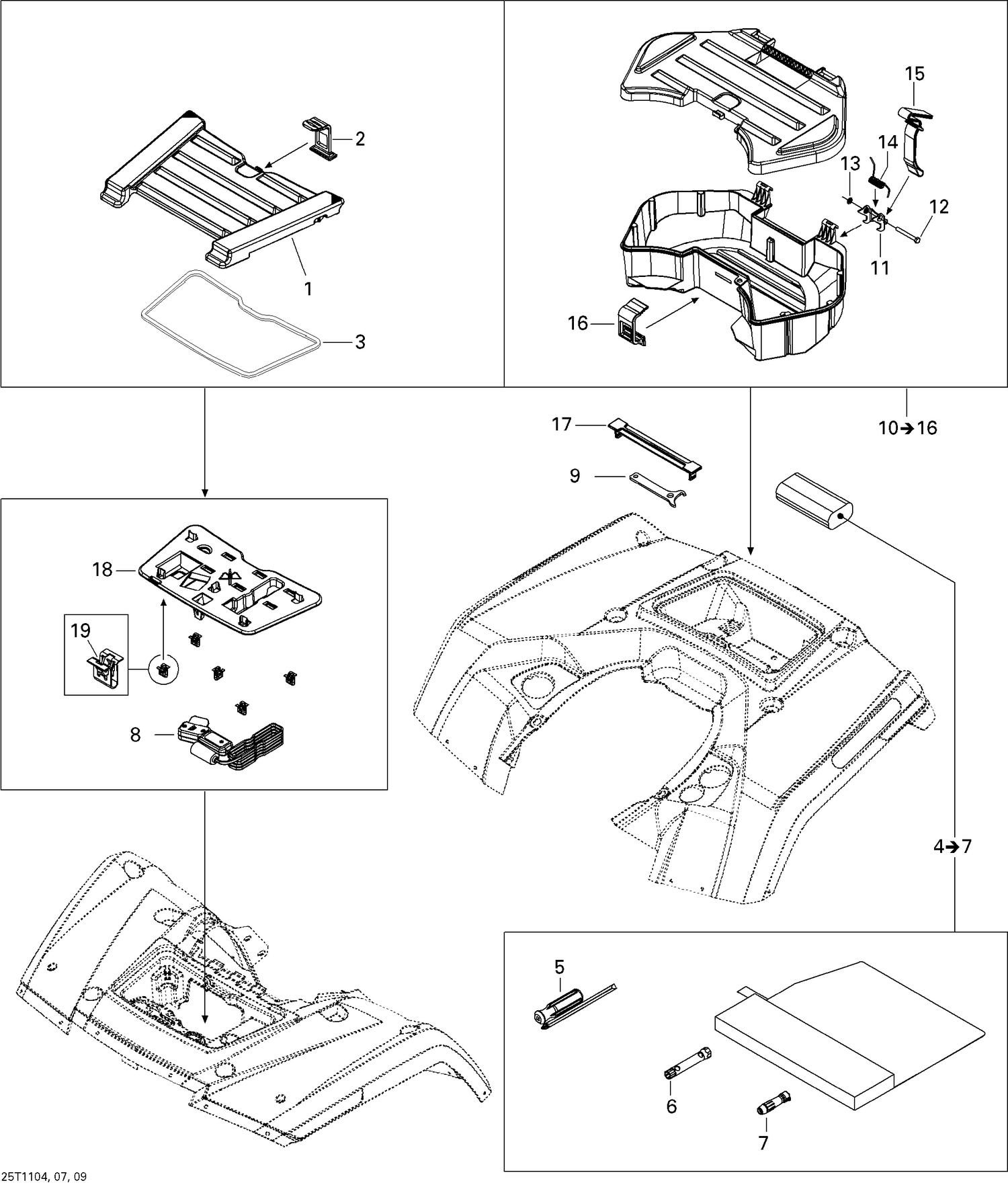

09- Front and Rear Trays
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 705003492 | Storage Cover |
| 2 | 708200120 | Cover Latch |
| 3 | 293250192 | Neoprene Seal |
| 5 | 529000004 | SCREWDRIVER - Call your local BRP dealership |
| 6 | 529014900 | Socket Wrench 10/13 mm |
| 7 | 529000052 | PRESSURE GAUGE - Call your local BRP dealership |
| 8 | 710001002 | REMOTE CONTROL - Call your local BRP dealership |
| 9 | 529000035 | Adjustment Wrench |
| 11 | 708200066 | LATCH - Call your local BRP dealership |
| 12 | 207065544 | Hex. Screw M6 X 55 |
| 13 | 732610072 | Push Nut |
| 14 | 708000369 | Spring |
| 15 | 510004495 | BELT - Call your local BRP dealership |
| 16 | 708200120 | Cover Latch |
| 17 | 708200121 | COVER LATCH KIT - Call your local BRP dealership |
| 18 | 708200075 | SUPPORT - Call your local BRP dealership |
