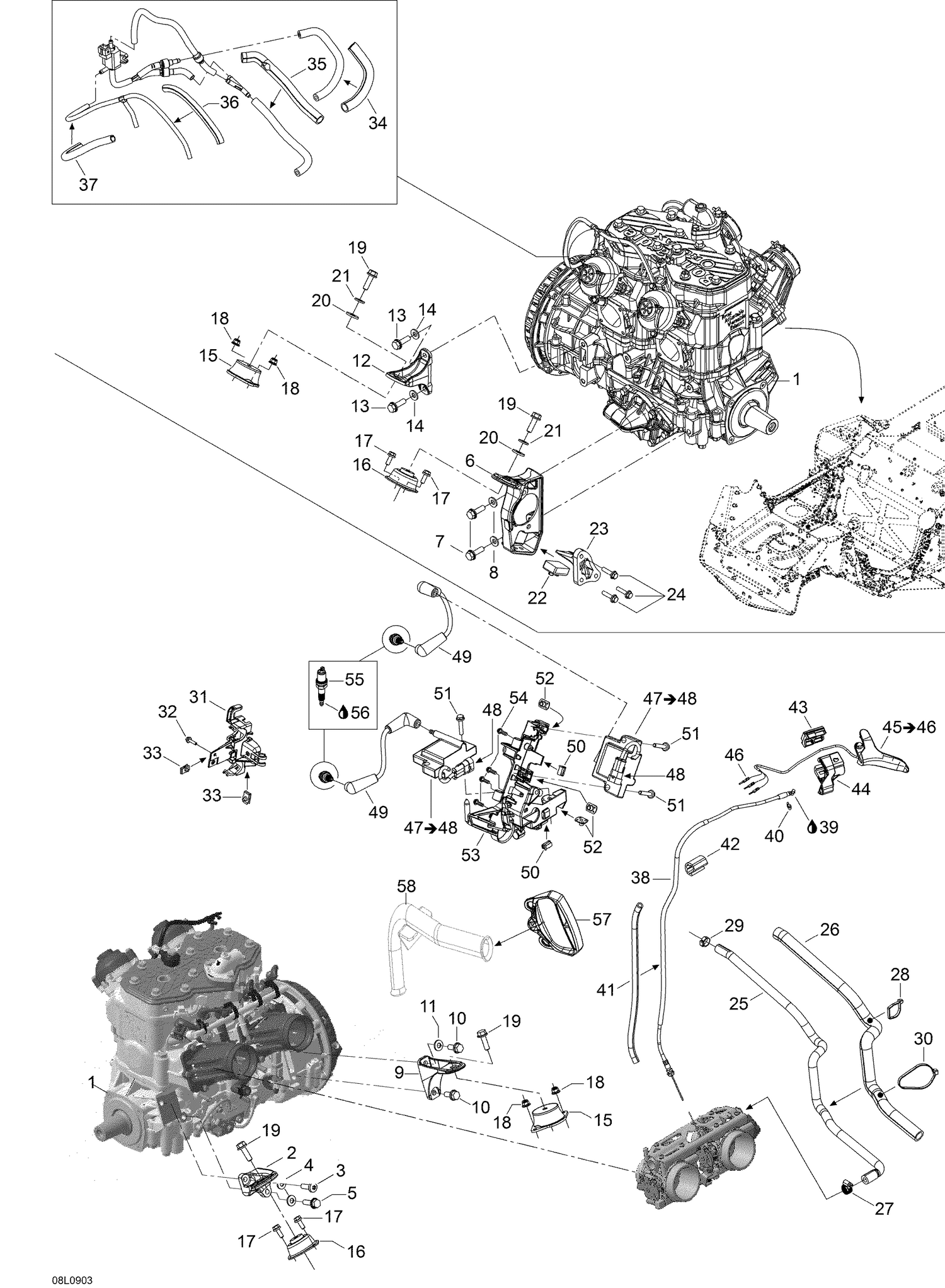

| Ref | Part Number | Description |
|---|
| 1 |
400604040 |
Engine 593 SDI |
| 2 |
512060478 |
Rear PTO Support |
| 3 |
250000752 |
Pan HD Torx Screw M8 x 25 This part replaces 250000248. |
| 4 |
234281474 |
Conical Spring Washer M8 |
| 5 |
207582586 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 6 |
512060712 |
FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060406. |
| 7 |
207582586 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 8 |
234281474 |
Conical Spring Washer M8 |
| 9 |
512060470 |
REAR MAG SUPPORT - Call your local BRP dealership |
| 10 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 11 |
234281474 |
Conical Spring Washer M8 |
| 12 |
512060469 |
Front MAG Support |
| 13 |
207582586 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 14 |
234281474 |
Conical Spring Washer M8 |
| 15 |
512060729 |
Rubber Mount This part replaces 512060457. |
| 16 |
512061507 |
Damper_Vibration This part replaces 512060387. |
| 17 |
207561644 |
Hex Flange Screw M6 X 16, Scotch Grip |
| 18 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 19 |
207583086 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 20 |
503183200 |
Yellow, Washer |
| 21 |
234281474 |
Conical Spring Washer M8 |
| 22 |
512060488 |
STOPPER - Call your local BRP dealership |
| 23 |
512060576 |
Stopper Support This part replaces 512060489. |
| 24 |
207562544 |
Hex. Flange Screw M6 X 25 |
| 25 |
509000601 |
FORMED HOSE - Call your local BRP dealership |
| 26 |
513033412 |
Tubing 16 mm |
| 27 |
293650170 |
Hose Clamp |
| 28 |
414115200 |
Tie-Rap 180 mm |
| 29 |
293650053 |
Crimp Clamp |
| 30 |
414115200 |
Tie-Rap 180 mm |
| 31 |
512060298 |
Solenoid Support |
| 32 |
207652044 |
Hex. Flange Screw M5 X 20 |
| 33 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 34 |
513033410 |
Tubing 13 mm |
| 35 |
513033466 |
Tubing 13 mm |
| 36 |
513033319 |
Tubing 9 mm |
| 37 |
513033496 |
Tubing 9 mm |
| 38 |
512060086 |
THROTTLE CABLE - Call your local BRP dealership |
| 39 |
293550006 |
Dielectric Grease, 150 G |
| 40 |
414274500 |
Circlip |
| 41 |
513033288 |
Protector tube |
| 42 |
513033224 |
Protector |
| 43 |
512060198 |
Upper Housing |
| 44 |
512060860 |
Lower Housing This part replaces 512060430. |
| 46 |
515175232 |
Male Terminal |
| 48 |
710000568 |
Male terminal housing |
| 49 |
420664302 |
SPARK PLUG CABLE, 190 MM - Call your local BRP dealership |
| 50 |
710000992 |
Clip |
| 51 |
250000213 |
Hex. Flange Screw |
| 52 |
293100003 |
Nut |
| 53 |
512060279 |
COIL SUPPORT - Call your local BRP dealership |
| 54 |
241151640 |
Hex. Flanged Screw K50 X 16 |
| 55 |
516060029 |
Spark Plug |
| 56 |
293550004 |
Dielectric Grease, 150 G |
| 57 |
512060136 |
Starter Grip |
