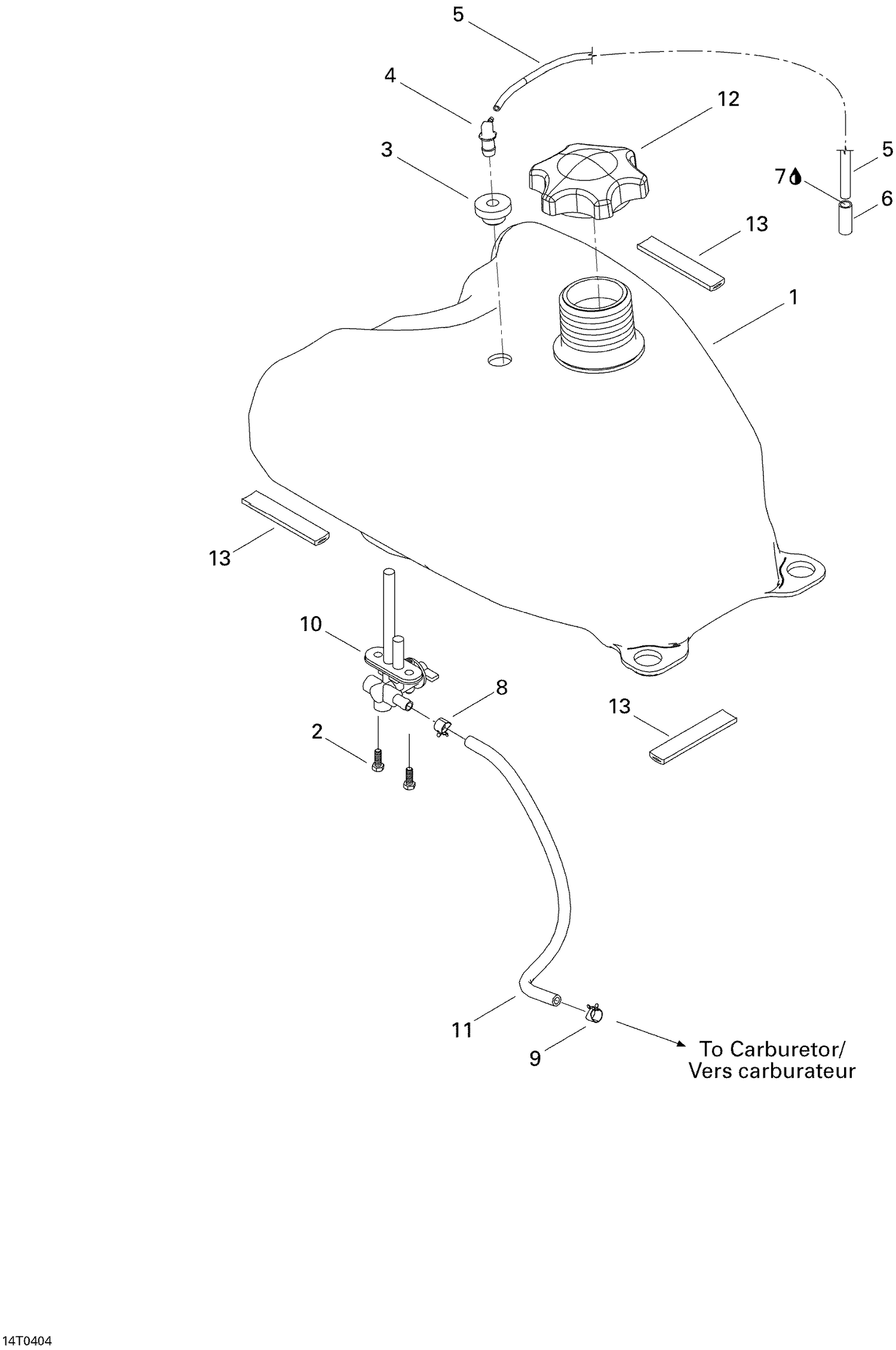

| Ref | Part Number | Description |
|---|
| 1 |
709000010 |
FUEL TANK - Call your local BRP dealership |
| 2 |
207151444 |
Hex. Screw M5 X 14 |
| 3 |
570045500 |
Grommet |
| 4 |
414814100 |
Male Connector |
| 5 |
219704709 |
NEEDS DESCRIPTION This part replaces 219704409. |
| 6 |
219704414 |
Was 415110000 Polyurethane Hose 5.2 mm |
| 8 |
414655700 |
Spring Clamp |
| 9 |
293650125 |
Oetiker Clamp |
| 10 |
709000011 |
FUEL VALVE - Call your local BRP dealership |
| 11 |
219704422 |
HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership |
| 12 |
513033722 |
Fuel Tank Cap 91 Octane This part replaces 513033024. |
