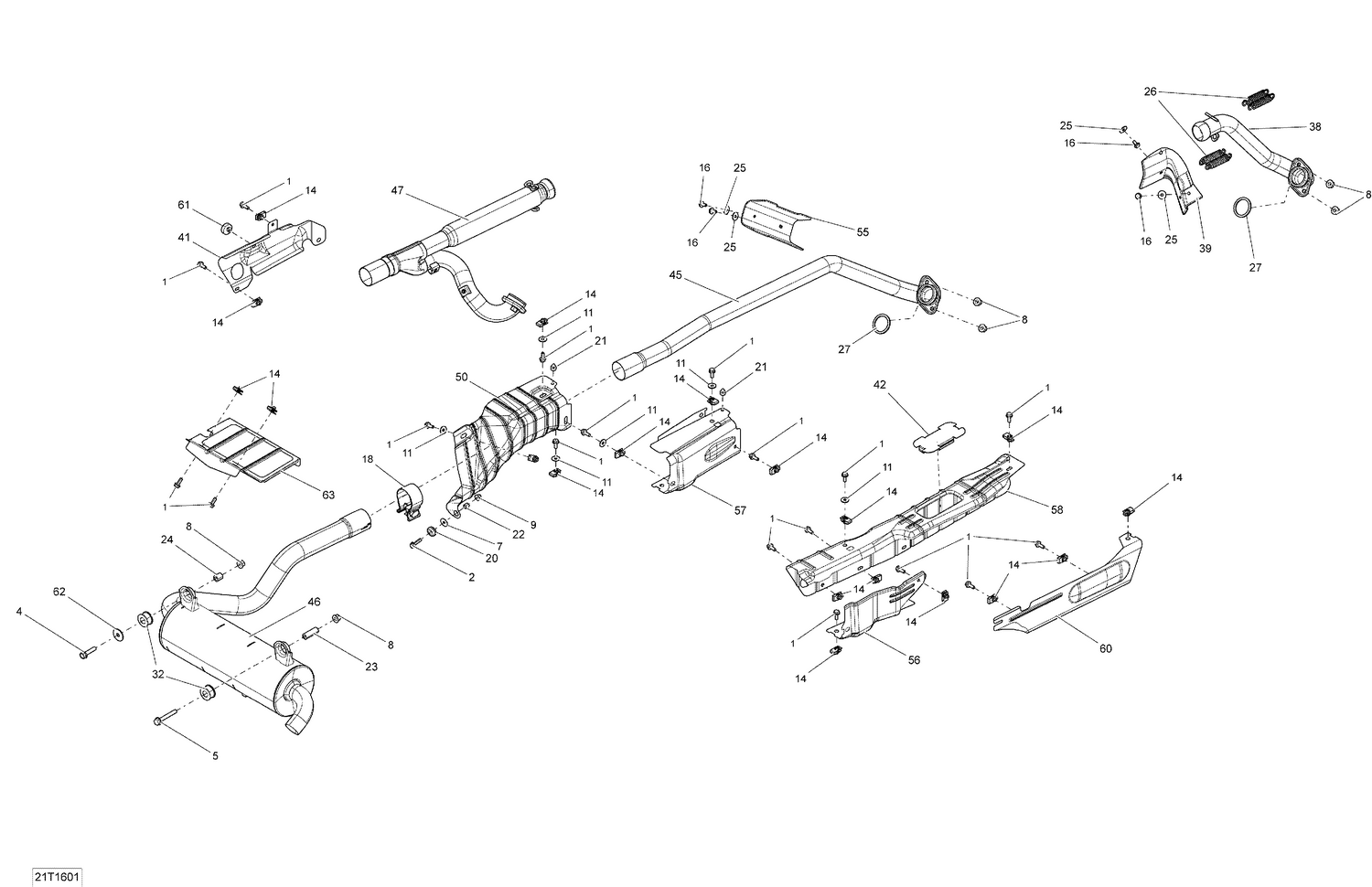

01- Exhaust System - All Models
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207661644 | Hex. Flange Screw M6 X 16 |
| 2 | 207662534 | Hex. Flange Screw M6 X 25 |
| 4 | 207683544 | Hex. Flange Screw M8 X 35 |
| 5 | 207685544 | Hex. Flange Screw M8 X 55 |
| 7 | 224060201 | Flat Washer |
| 8 | 233081416 | Hex. Flange Nut M8 |
| 9 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 11 | 234062410 | Flat Washer 6 mm |
| 14 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 16 | 250000574 | Hex. Flange Screw M6 X 12 |
| 18 | 293650228 | Exhaust Pipe Clamp |
| 20 | 709000582 | Grommet This part replaces 293720053. |
| 22 | 293900105 | Bushing |
| 23 | 293900115 | Bushing |
| 24 | 293900116 | Spacer Bushing |
| 25 | 250200082 | Flat Washer |
| 32 | 707603323 | Vibration Damper This part replaces 707600701. |
| 50 | 707601425 | Protector |
| 56 | 707601484 | Protector |
| 57 | 707601485 | Protector |
| 58 | 707603724 | Heat Shield This part replaces 707601486. |
| 62 | 250200158 | Flat Washer M8 |
