Parts Catalog

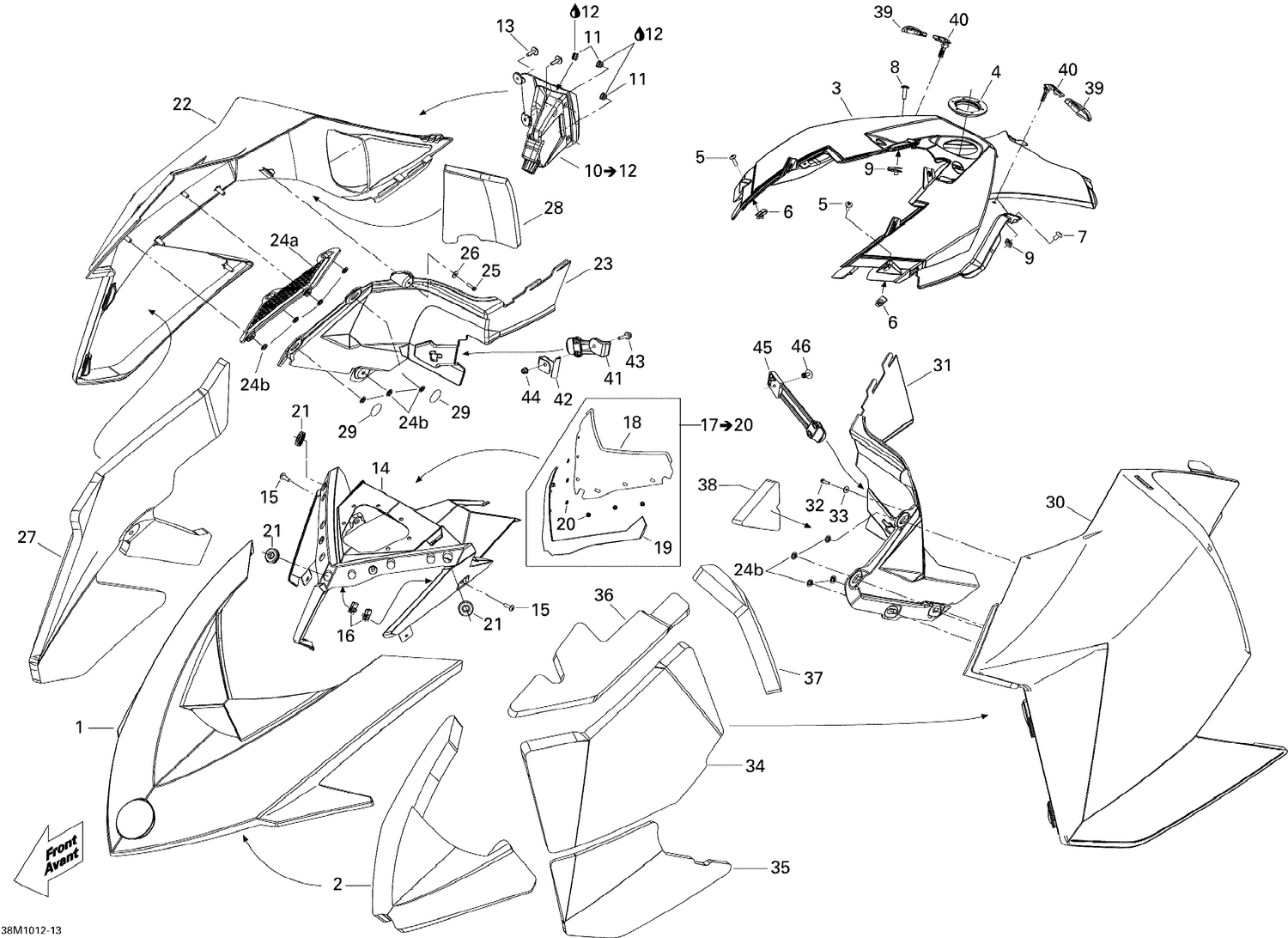

09- Hood 800R PTEK

Parts (41)

Ref	Part Number	Description
2	517304913	Hood Foam This part replaces 517303990.
4	517304518	Console Nut
5	250000722	Torx Screw M6 X 20 This part replaces 250000128.
6	250100198	Panel Nut M6 X 1.0 This part replaces 250000048.
7	250000721	Torx Truss Screw M6 X 16 This part replaces 250000129.
8	250000722	Torx Screw M6 X 20 This part replaces 250000128.
9	250100198	Panel Nut M6 X 1.0 This part replaces 250000048.
11	275500241	Black, Cap
12	413408300	Loctite, Black Max, 3 ml
14	517304575	Gauge Support This part replaces 517303603.
15	250000722	Torx Screw M6 X 20 This part replaces 250000128.
16	250100198	Panel Nut M6 X 1.0 This part replaces 250000048.
18	Not	Available As Spare Part - Windsheld 140
19	860200089	Windshield Support Kit This part replaces 517303757.
20	732610072	Push Nut
21	517303756	Grommet
22	517304029	Deep Black, RH Panel
23	517303671	Deep Black RH Moulding Panel
24a	517303622	Grille
24b	732610072	Push Nut
25	241141660	Hex. Flange Screw K40 X 16
26	234042600	Flat Washer 4 mm, Stainless
27	517304883	RH Center Foam This part replaces 517304280.
28	517304884	RH Panel Rear Foam This part replaces 517303982.
29	518325560	Adhesive Patch
30	517304030	Deep Black, LH Panel
31	517303673	Deep Black, LH Moulding Panel
32	241141660	Hex. Flange Screw K40 X 16
33	234042600	Flat Washer 4 mm, Stainless
34	517304887	LH Panel Center Foam This part replaces 517303983.
35	517304888	LH Panel Lower Foam This part replaces 517303984.
36	517304889	LH Panel Upper Foam This part replaces 517303985.
37	517304890	LH Panel Rear Foam This part replaces 517303986.
38	517304891	Foam This part replaces 517303987.
39	517304075	End Piece Latch
40	517303981	Panel Latch
41	517303612	RH Panel Latch
42	517304221	Latch Support
43	207652044	Hex.Flange Screw M5 X 20
44	233251434	Flange Elastic Nut M5 This part replaces 233251414.
45	517303808	LH Panel Latch
