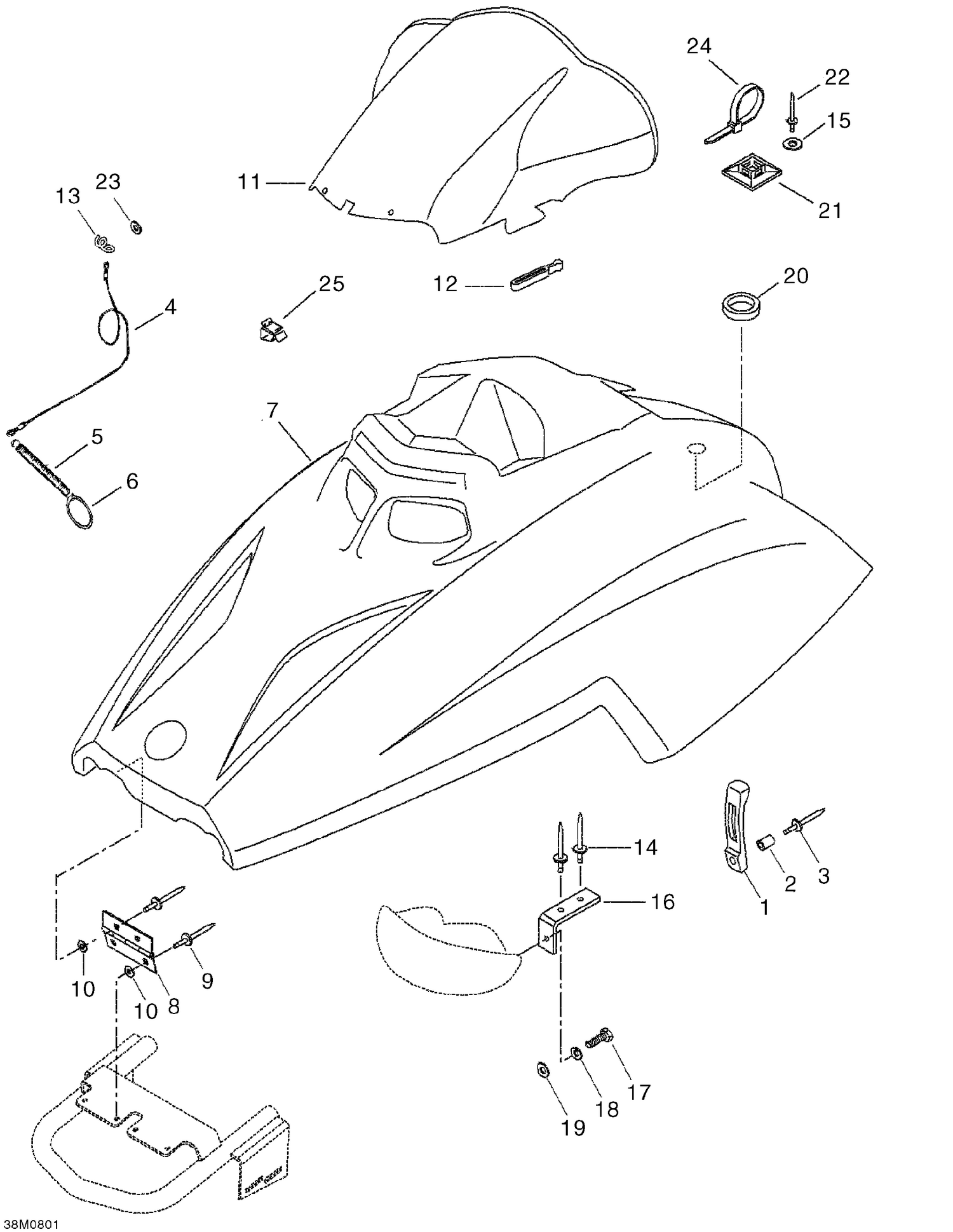

09- Cab And Console
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 570025900 | BLACK LATCH - Call your local BRP dealership |
| 2 | 293900112 | Bushing This part replaces 517245900. |
| 3 | 390906800 | Pop Rivet 3/16" |
| 4 | 415093900 | RETAINER CABLE - Call your local BRP dealership |
| 5 | 414763300 | Spring |
| 6 | 415058300 | RING - Call your local BRP dealership |
| 7 | 517302687 | Hood |
| 8 | 269500338 | HINGE - Call your local BRP dealership |
| 9 | 390402400 | Pop Rivet 3/16" |
| 10 | 517124300 | Washer |
| 11 | 517302689 | Windshield |
| 12 | 570023800 | Windshield Latch |
| 13 | 517262800 | Bracket |
| 14 | 390906800 | Pop Rivet 3/16" |
| 15 | 517124300 | Washer |
| 16 | 517302928 | Headlamp Support |
| 17 | 250000436 | Socket Screw Button Head M6 X 10 This part replaces 205461060. |
| 18 | 234161601 | Lock Washer Helical M6 |
| 19 | 234061600 | Stainless Flat Washer M6 |
| 20 | 517302380 | Foam |
| 21 | 293750015 | TIE RAP MOUNT - Call your local BRP dealership |
| 22 | 390402200 | Pop Rivet 3/16" |
| 23 | 517124300 | Washer |
| 24 | 293750002 | Tie Wrap 142 mm |
