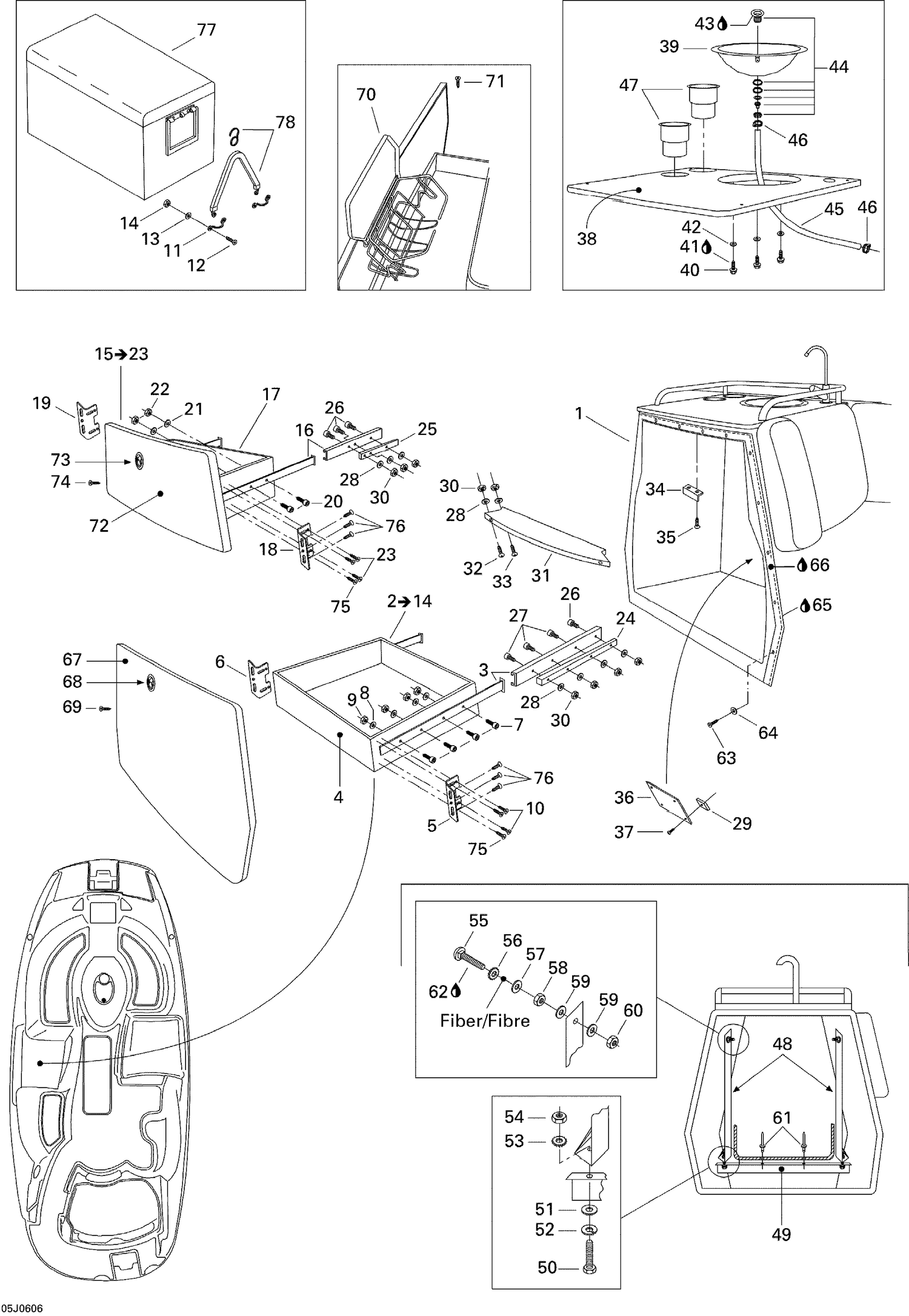

| Ref | Part Number | Description |
|---|
| 1 |
204072577 |
Galley Cabinet |
| 3 |
204070612 |
Drawer Slides, Long |
| 4 |
204070964 |
Drawer, Bottom |
| 5 |
204070725 |
RH DRAWER BRACKET, 94DEG - Call your local BRP dealership |
| 6 |
204070726 |
LH DRAWER BRACKET, 80DEG - Call your local BRP dealership |
| 7 |
205441660 |
Socket Head Screw M4 X 16 |
| 8 |
234042600 |
Flat Washer 4 mm, Stainless |
| 9 |
232541600 |
Elastic Stop Nut M4 |
| 10 |
209641360 |
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership |
| 11 |
204070234 |
Strap Tie |
| 12 |
205441660 |
Socket Head Screw M4 X 16 |
| 13 |
234042600 |
Flat Washer 4 mm, Stainless |
| 14 |
232541600 |
Elastic Stop Nut M4 |
| 16 |
204070613 |
DRAWER SLIDES, SHORT - Call your local BRP dealership |
| 17 |
204070619 |
DRAWER, BOTTOM - Call your local BRP dealership |
| 18 |
204070725 |
RH DRAWER BRACKET, 94DEG - Call your local BRP dealership |
| 19 |
204070726 |
LH DRAWER BRACKET, 80DEG - Call your local BRP dealership |
| 20 |
205441660 |
Socket Head Screw M4 X 16 |
| 21 |
234042600 |
Flat Washer 4 mm, Stainless |
| 22 |
232541600 |
Elastic Stop Nut M4 |
| 23 |
209641360 |
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership |
| 24 |
204070727 |
SLIDE SHIM, LONG - Call your local BRP dealership |
| 25 |
204070728 |
SLIDE SHIM, SHORT - Call your local BRP dealership |
| 26 |
205442560 |
Socket Screw M4 X 25 |
| 27 |
205443560 |
SOCKET HEAD SCREW M4 X 35 - Call your local BRP dealership |
| 28 |
234042600 |
Flat Washer 4 mm, Stainless |
| 29 |
Not |
Available As Spare Part - Insert |
| 30 |
232541600 |
Elastic Stop Nut M4 |
| 31 |
204070965 |
LATCH SUPPORT - Call your local BRP dealership |
| 32 |
208443060 |
Phillips Screw M4 X 30 |
| 33 |
208445060 |
PHILLIPS SCREW M4 X 50 - Call your local BRP dealership |
| 34 |
204070060 |
KEEPER - Call your local BRP dealership |
| 35 |
209641360 |
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership |
| 36 |
204070916 |
ACCESS COVER - Call your local BRP dealership |
| 37 |
208642560 |
PHILLIPS SCREW M4 X 25 - Call your local BRP dealership |
| 38 |
204072467 |
COUNTER TOP - Call your local BRP dealership |
| 39 |
204070625 |
Sink |
| 40 |
241140060 |
Screw K40 X 10 |
| 42 |
234042600 |
Flat Washer 4 mm, Stainless |
| 43 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 44 |
204070626 |
SINK STRAINER ASS?Y - Call your local BRP dealership |
| 45 |
204940033 |
Bilgeflex Hose 5/8”, Meter |
| 46 |
293650016 |
Tridon Clamp |
| 47 |
291000619 |
CUP HOLDER - Call your local BRP dealership |
| 48 |
204070971 |
STRAP 565 MM - Call your local BRP dealership |
| 49 |
204070972 |
Angle 813 mm |
| 50 |
207185560 |
HEX. SCREW M8 X 55 - Call your local BRP dealership |
| 51 |
234082600 |
Flat Washer 8 mm, Stainless |
| 52 |
234181601 |
Lock Washer 8 mm, Stainless |
| 53 |
234381608 |
TOOTHED LOCK WASHER - Call your local BRP dealership |
| 54 |
232081600 |
Hex. Nut M8 |
| 55 |
204000130 |
Elevator Bolt |
| 56 |
211200054 |
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership |
| 57 |
204100139 |
WASHER-FENDER/S.S. - Call your local BRP dealership |
| 58 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 59 |
234062600 |
Flat Washer M6, Stainless |
| 60 |
212000005 |
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership |
| 61 |
293150065 |
RIVET - Call your local BRP dealership |
| 62 |
293800060 |
Loctite 243, 10 ml |
| 63 |
250000086 |
TAPPING PHILLIPS SCREW M4.8 X 38 - Call your local BRP dealership |
| 64 |
204100057 |
FINITION WASHER - Call your local BRP dealership |
| 65 |
Not |
Available As Spare Part - Adhesive Sealant |
| 66 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 67 |
204072151 |
Front Drawer, Ice Chest |
| 68 |
204070951 |
DOOR LATCH - Call your local BRP dealership |
| 69 |
208651660 |
SCREW M5 X 16 - Call your local BRP dealership |
| 70 |
204070616 |
Wastebasket |
| 71 |
209630960 |
PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership |
| 72 |
204072599 |
Drawer Front |
| 73 |
204070120 |
LATCH, WHITE - Call your local BRP dealership |
| 74 |
208651660 |
SCREW M5 X 16 - Call your local BRP dealership |
| 75 |
209641360 |
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership |
| 76 |
204100030 |
Phillips Screw #8 X 1/2” |
| 77 |
204072591 |
ICe Chest |
