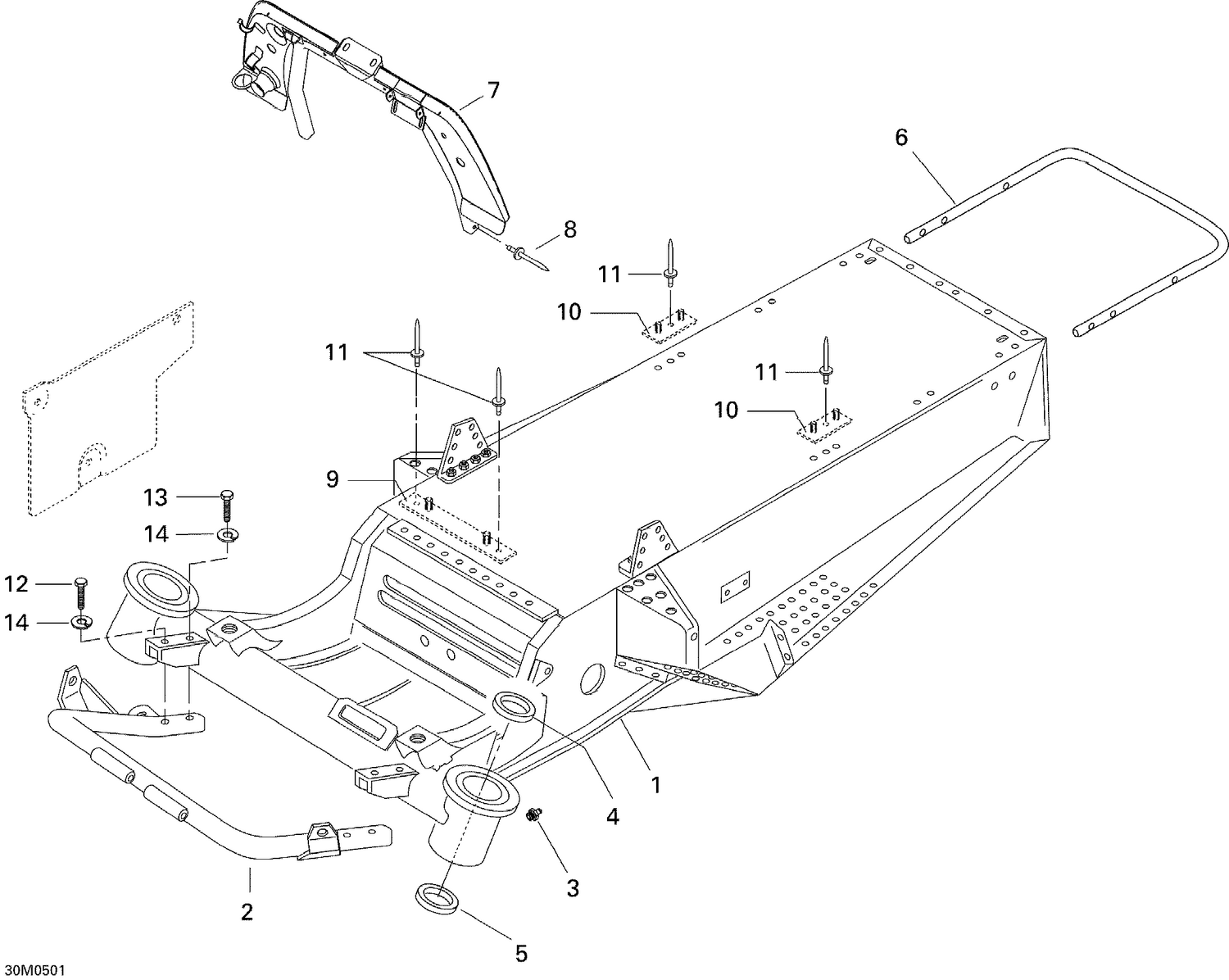

09- Frame
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 518323484 | Frame |
| 2 | 518320200 | Welded Front Bumper |
| 3 | 408200700 | Grease Fitting |
| 4 | 414803100 | Upper Cushion |
| 5 | 414803200 | Lower Cushion |
| 6 | 517170700 | Rear Bumper |
| 7 | 518322990 | Paint Upper Column |
| 8 | 293150117 | Pop Rivet 1/4 |
| 9 | Not | Available As Spare Part - Welded Retaining Plate |
| 10 | Not | Available As Spare Part - Welded Retaining Plate |
| 11 | 390402400 | Pop Rivet 3/16" |
| 12 | 207063544 | Hex. Flange Screw M6 X 35 |
| 13 | 207162544 | Hex. Screw M6 X 25 |
