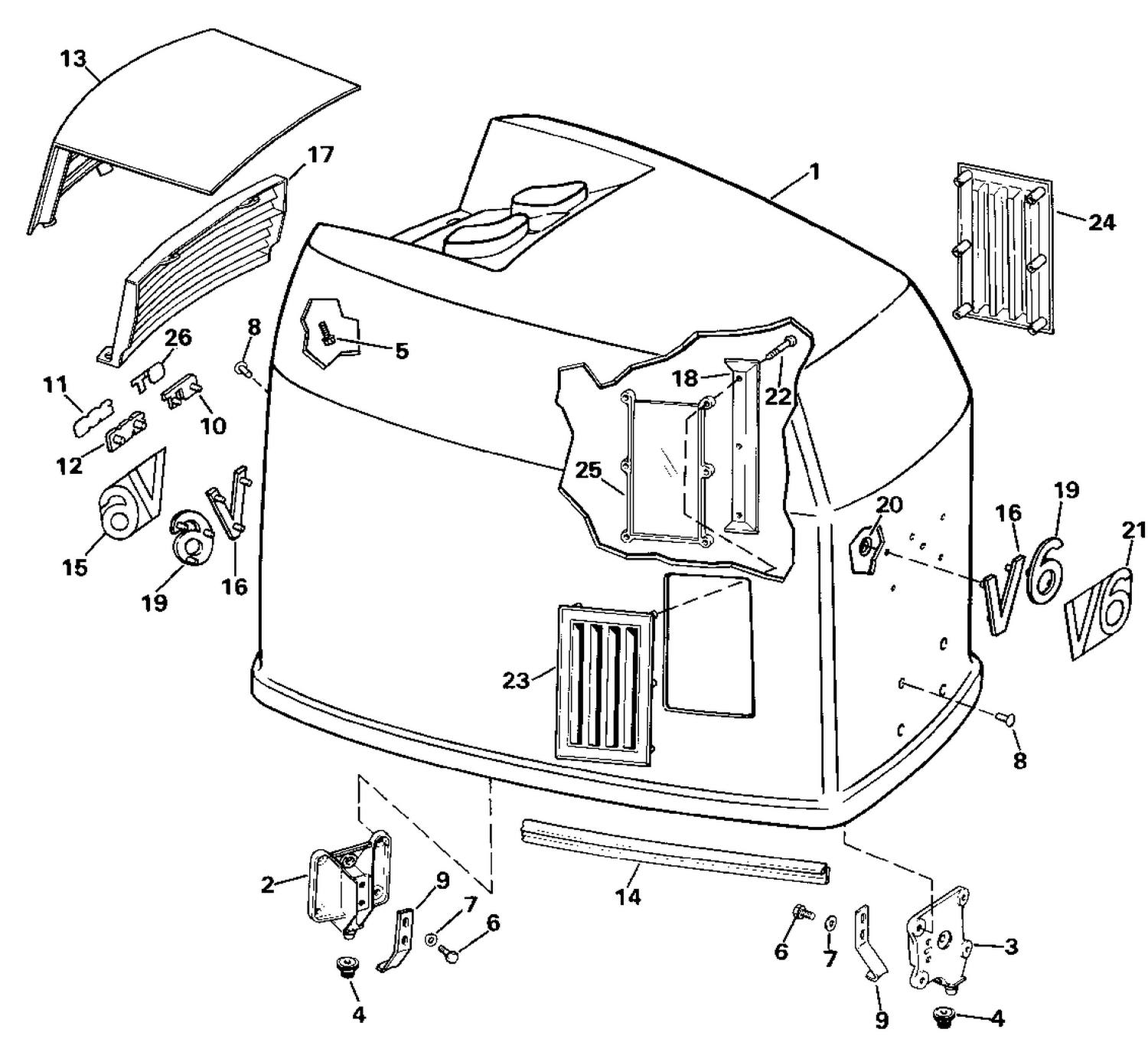

ENGINE COVER - JOHNSON - 200STL
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0398016 | ENGINE COVER ASSY. |
| 2 | 0394976 | LOCATING BRACKET, Rear |
| 3 | 0329762 | LOCATING BRACKET, Front |
| 10 | 0330456 | APPLIQUE GT, rear |
| 11 | 0333050 | PLATE, Rear |
| 12 | 0333049 | APPLIQUE, Rear |
| 13 | 0331944 | TILT HANDLE |
| 15 | 0330453 | PLATE, Rear |
| 16 | 0330413 | APPLIQUE, Front & rear |
| 17 | 0331945 | BAFFLE |
| 18 | 0329866 | BRACKET, Louver mtg |
| 19 | 0330410 | APPLIQUE, Front & rear |
| 21 | 0330451 | PLATE, Applique front |
| 23 | 0329736 | LOUVER, Engine cover, stbd |
| 24 | 0329735 | LOUBER, Engine cover, port |
| 25 | 0329737 | BAFFLE, 175STL |
| 26 | 0333088 | PLATE, GT rear |
| 0398383 | 0398383 | DECAL SET |
