| Ref | Part Number | Description |
|---|
| 1 |
0385357 |
BODY ASSY |
| 1 |
0385358 |
BODY ASSY |
| 19 |
0317176 |
NEEDLE VALUE,Slow speed |
| 20 |
0317362 |
NOZZLE, High speed |
| 23 |
0317135 |
BRACKER,Solenoid |
| 24 |
0307609 |
SCREW |
| 25 |
0317175 |
CONTROL PANEL |
| 28 |
0378003 |
ARM & PIN,Manual choke |
| 30 |
0317183 |
ORIFICE PLUG |
| 31 |
0307384 |
SPRING, Choke |
| 32 |
0306417 |
SCEW, Spring |
| 33 |
0317174 |
BUSHING, Choke lever |
| 35 |
0307433 |
SPRING, Choke |
| 36 |
0307832 |
PLUG, Screw |
| 37 |
0385055 |
CHOKE LEVER & PIN ASSY |
| 38 |
0379965 |
FLOAT BOWL ASSY |
| 40 |
0303750 |
GAKSET, Float bowl |
| 41 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz This part replaces 0306015. |
| 44 |
0375792 |
FLOAT & FLOAT ARM |
| 46 |
0312937 |
WASHER SOLENOID PLUNGER |
| 47 |
0307778 |
GASEKT, Carburetor body |
| 49 |
0383598 |
SOLENOID ASSEMBLY |
| 51 |
0312939 |
SPRING, Plunger |
| 52 |
0312940 |
SPRING, Arm to plunger |
| 53 |
0312941 |
GUIDE, Solenioid spring |
| 54 |
0329594 |
SCREW, Cam follower This part replaces 0303737. |
| 56 |
0310473 |
GASKET, Solenoid |
| 57 |
0310475 |
RETAINER, Solenoid |
| 58 |
0381861 |
PLUNGER & PIN ASSY |
| 59 |
0318974 |
FASTENER, Cable clamp This part replaces 0314886. |
| 60 |
0303686 |
SCREW, Fastener |
| 61 |
0204705 |
ARM, Neddle valve |
| 62 |
0317172 |
LINK, Slow speed |
| 63 |
0279086 |
SHAFT & ARM, Slow speed |
| 64 |
0317171 |
ROD, Knob to lever |
| 65 |
0310387 |
GASKET, Carb to manifold |
| 67 |
0313329 |
LOCKWASHER, Carburetor link |
| 69 |
0204757 |
BOW WASHER |
| 70 |
0306799 |
L'WASHER,Bracket to hsg. |
| 71 |
0378984 |
ARM & SCREW |
| 0384996 |
0384996 |

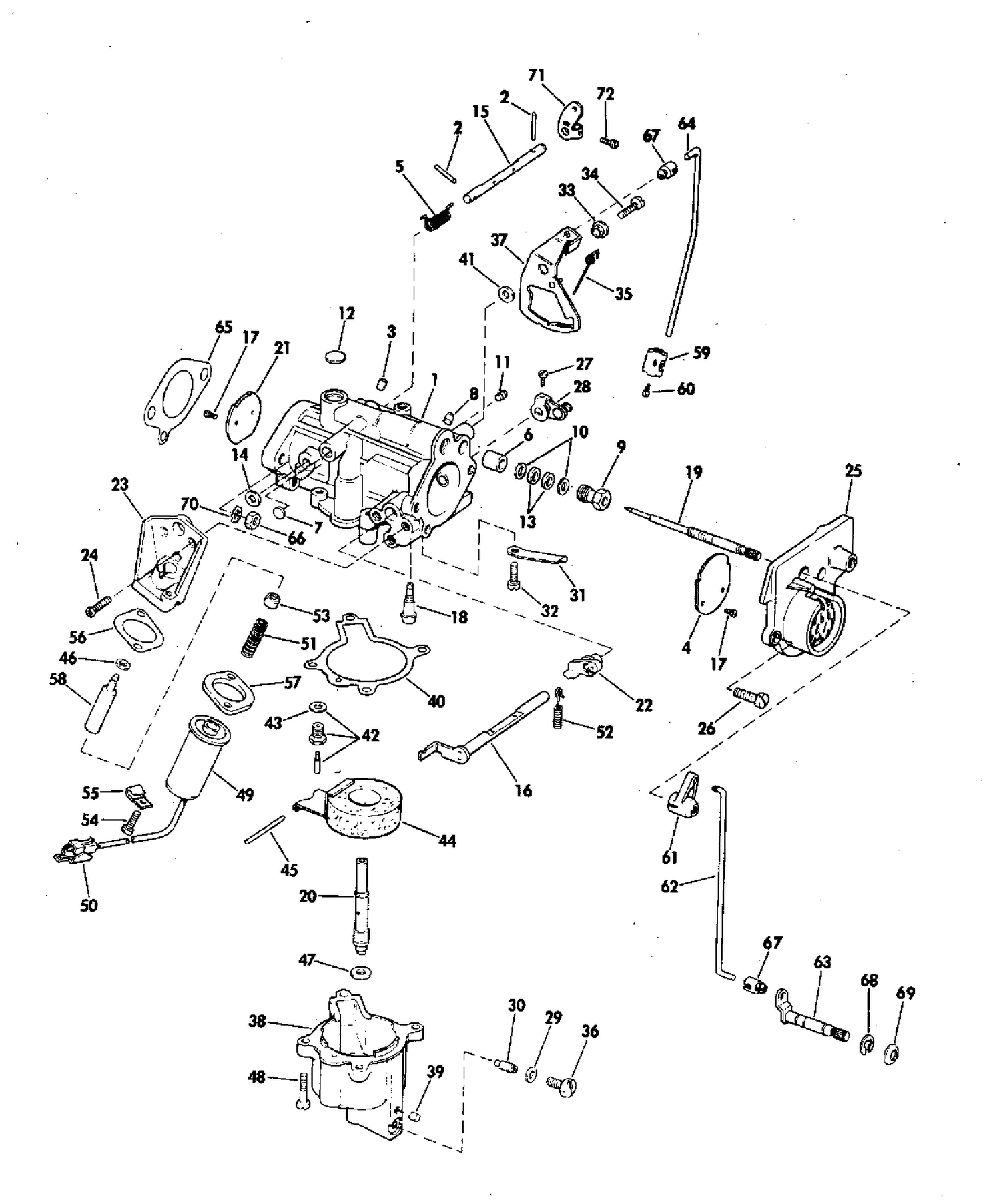

CARBURETOR ASSY |
| 0385050 |
0385050 |
CARBURETOR ASSY |
