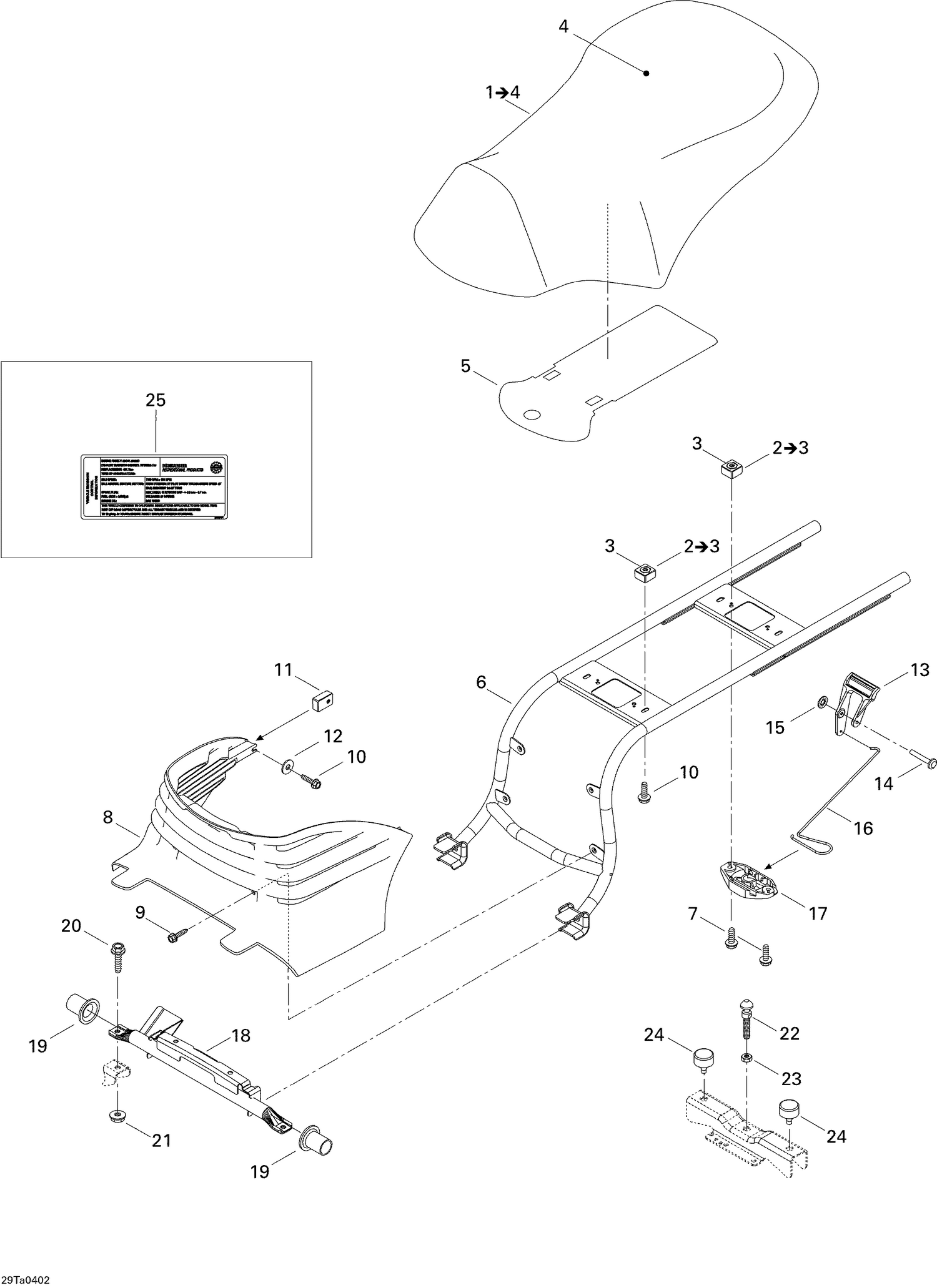

09- Seat
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 232561414 | Elastic Stop Nut M6 |
| 4 | 708000233 | Seat Cover |
| 5 | 708000160 | Reflective Sheet |
| 6 | 708000003 | Seat Support, Black |
| 7 | 207662544 | Hex. Flange Screw M6 X 25 |
| 8 | 705000879 | Engine Cover |
| 9 | 210261050 | Hex. Forming Screw M6 X 10 This part replaces 210261080. |
| 10 | 207661644 | Hex. Flange Screw M6 X 16 |
| 11 | 708000042 | Nut Housing M6 |
| 12 | 224061201 | Flat Washer |
| 13 | 708000010 | Lever Latch |
| 14 | 293150062 | SOLID RIVET 3/16 X 1-7/8 - Call your local BRP dealership |
| 15 | 389804300 | Push Nut |
| 16 | 708000015 | SPRING - Call your local BRP dealership |
| 17 | 708000034 | Latch Base |
| 18 | 708000044 | Seat Pivot, Black |
| 19 | 708000019 | SEAT BUSHING - Call your local BRP dealership |
| 20 | 207682044 | Hex. Flange Screw M8 X 20 |
| 21 | 233281414 | Hex. Flange Elastic Nut M8 |
| 22 | 291000945 | SEAT STUD - Call your local BRP dealership |
| 23 | 232100600 | Hex. Jam Nut M10 |
| 24 | 708000758 | Rubber Stopper This part replaces 708000006. |
