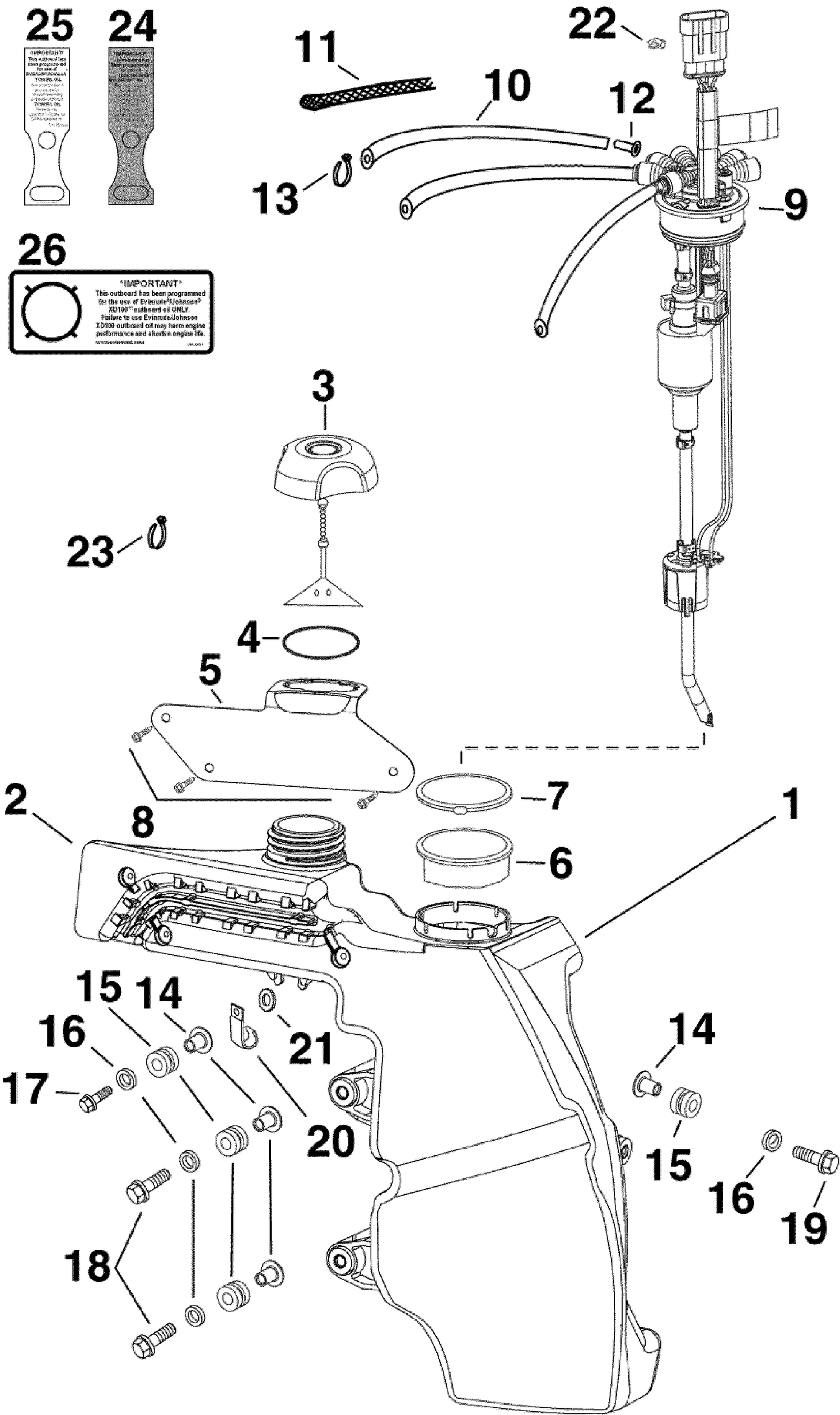

OIL TANK & PUMP
Parts (7)
| Ref | Part Number | Description |
|---|---|---|
| 9 | 5007587 | PUMP & MANIFOLD Assy |
| 18 | 0325115 | SCREW, Oil tank/EMM mount |
| 19 | 0341011 | SCREW, Adapter to housing, outer |
| 20 | 0330151 | CLAMP, Harness to oil tank boss |
| 23 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 24 | 0351520 | EMM Oil program tag - XD100 Oil |
| 25 | 0351519 | EMM Oil program tag - TC-W3 Oils |
