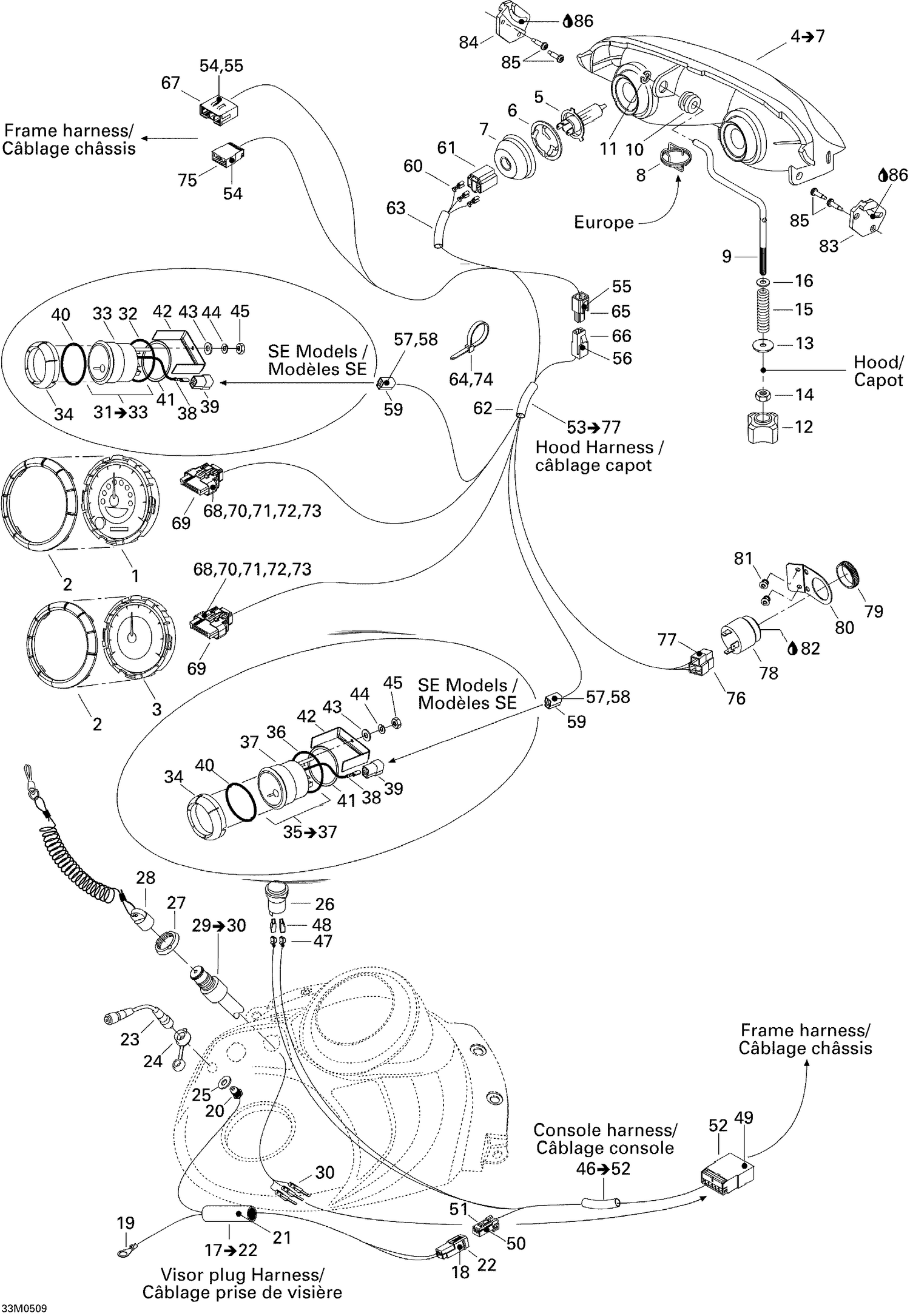

| Ref | Part Number | Description |
|---|
| 1 |
515176244 |
SPEEDOMETER - Call your local BRP dealership |
| 2 |
515179005 |
Gauge Ring This part replaces 515176242. |
| 3 |
515176275 |
Tachometer |
| 5 |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 6 |
515176385 |
BULB HOLDER - Call your local BRP dealership This part replaces 515175910. |
| 7 |
515175911 |
COVER - Call your local BRP dealership |
| 9 |
515175920 |
Adjuster Rod |
| 10 |
415100800 |
Grommet - Call your local BRP dealership |
| 11 |
732610072 |
Push Nut |
| 12 |
515175548 |
Handle - Call your local BRP dealership |
| 13 |
224060251 |
Washer |
| 14 |
232561414 |
Elastic Stop Nut M6 |
| 15 |
415100600 |
SPRING - Call your local BRP dealership |
| 16 |
234061410 |
Flat Washer 6 mm |
| 18 |
515175232 |
Male Terminal |
| 19 |
515175172 |
OPEN BARREL - Call your local BRP dealership |
| 20 |
415096100 |
Visor Plug |
| 21 |
293740005 |
Tape |
| 22 |
515175654 |
Male Terminal Housing, 2 Circuits |
| 23 |
515175971 |
EXTENSION - Call your local BRP dealership |
| 24 |
572103300 |
Cap |
| 25 |
503175800 |
Washer |
| 27 |
278002963 |
Safety Nut (DESS Switch) This part replaces 278000508. |
| 28 |
515178284 |
DESS This part replaces 515166900. |
| 30 |
515175232 |
Male Terminal |
| 47 |
409010600 |
FEMALE TERMINAL - Call your local BRP dealership |
| 48 |
409010400 |
Female Terminal Housing, 1 Circuit |
| 49 |
515175232 |
Male Terminal |
| 50 |
515175231 |
Female Terminal |
| 51 |
515175658 |
Female Housing, 2 Circuits |
| 52 |
515175662 |
Male Terminal Housing, 6 Circuits |
| 54 |
515175232 |
Male Terminal |
| 55 |
515175273 |
MALE TERMINAL - Call your local BRP dealership |
| 56 |
515175282 |
Female Terminal |
| 57 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 58 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 59 |
409204300 |
Female Housing |
| 60 |
515175321 |
FEMALE TERMINAL - Call your local BRP dealership |
| 61 |
409202700 |
FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership |
| 62 |
219704408 |
Tubing 16 Mm 1000Mm Long |
| 63 |
219704407 |
Tubing 10 MM 1000MM Long |
| 64 |
293750001 |
Tie Wrap 94 mm |
| 65 |
515175509 |
MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership |
| 66 |
515175510 |
FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership |
| 67 |
515175720 |
MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership |
| 68 |
515175812 |
Plug |
| 69 |
515175801 |
Female Housing, 24 Circuits |
| 70 |
515175802 |
Retainer Block |
| 71 |
515175803 |
Wire Seal |
| 72 |
515175804 |
BLOCK - Call your local BRP dealership |
| 73 |
515175806 |
Female Terminal |
| 74 |
414115200 |
Tie-Rap 180 mm |
| 75 |
415128526 |
Male Terminal Housing, 10 Circuits |
| 76 |
515176069 |
MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership |
| 77 |
515176071 |
Female Terminal |
| 78 |
515176035 |
HORN - Call your local BRP dealership |
| 79 |
414805101 |
PLASTIC NUT - Call your local BRP dealership |
| 80 |
515175688 |
PLATE - Call your local BRP dealership |
| 81 |
390402200 |
Pop Rivet 3/16" |
| 82 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 83 |
517289300 |
RH Support |
| 84 |
517289400 |
LH Support |
| 85 |
732601315 |
Headlamp Screw |
