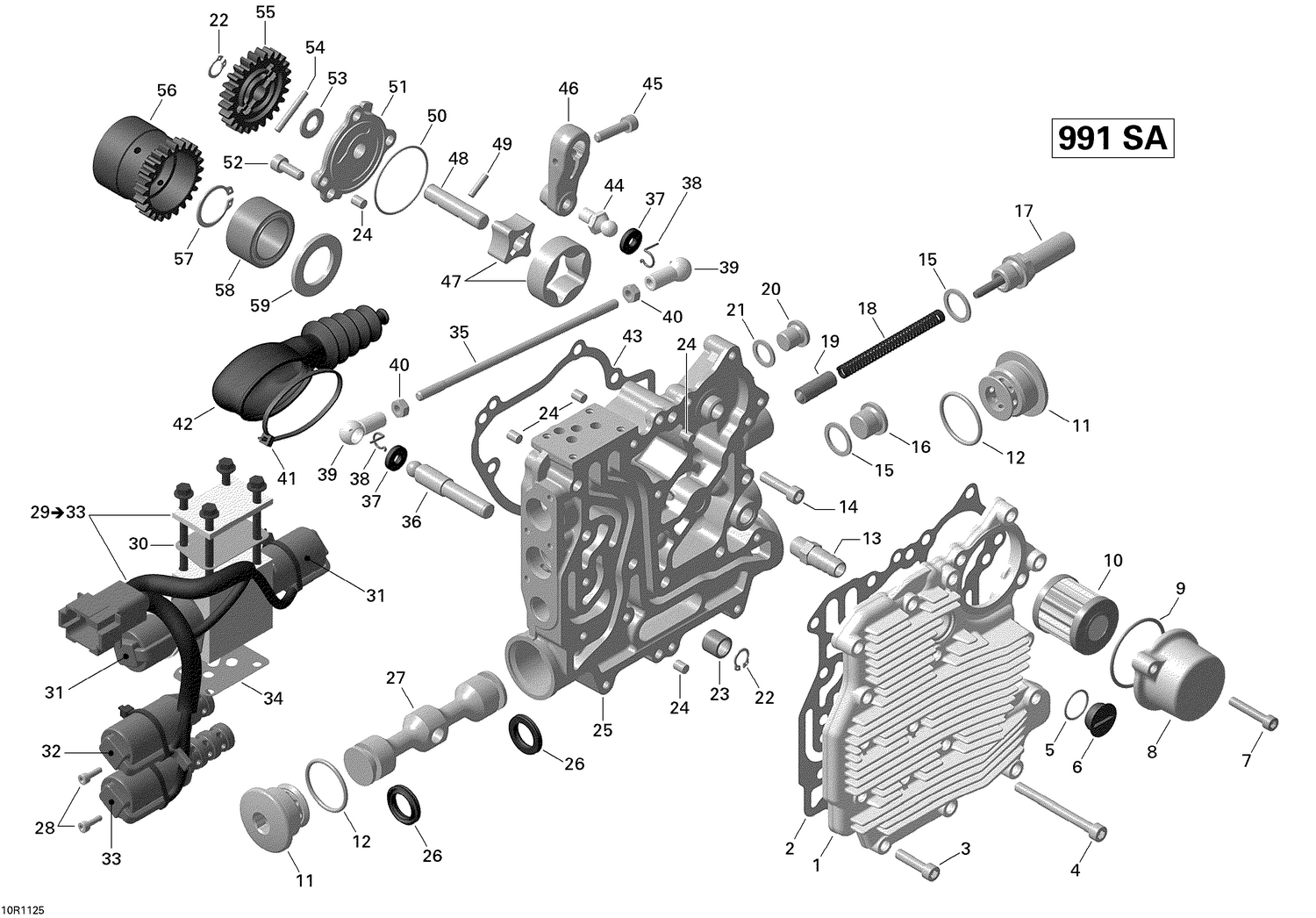

05- Hydraulic Shifting
Parts (57)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420611500 | HYDRAULIC COVER - Call your local BRP dealership |
| 2 | 420430661 | Gasket |
| 3 | 205062544 | Socket Head Screw M6 X 25 |
| 4 | 420241263 | Allen Screw This part replaces 420241261. |
| 5 | 420250890 | O-Ring |
| 6 | 420241801 | Drain Plug |
| 7 | 420241814 | Socket Head Screw M6 X 35 This part replaces 420241811. |
| 8 | 219800313 | Filter Cover Kit This part replaces 420211506. |
| 9 | 420430920 | O-Ring |
| 10 | 420256454 | Oil Filter |
| 11 | 420441300 | Plug Screw |
| 12 | 420430590 | O-ring |
| 13 | 420840445 | NIPPLE 12/8 - Call your local BRP dealership |
| 14 | 205062544 | Socket Head Screw M6 X 25 |
| 15 | 420430624 | Oil Pressure Regulator Gasket Ring This part replaces 420430623. |
| 16 | 420240234 | Plug Screw M16 X 1.5 |
| 17 | 420441335 | PLUG SCREW - Call your local BRP dealership |
| 18 | 420238845 | Spring |
| 19 | 420256510 | Pressure Regulating Piston |
| 20 | 420841923 | Plug Screw M12 |
| 21 | 420250016 | Aluminum Sealing Ring This part replaces 420250015. |
| 22 | 420245330 | Snap Ring |
| 23 | 420232031 | Needle Bushing This part replaces 420232030. |
| 24 | 420232210 | Center Pin |
| 25 | 420611496 | Hydraulic Housing This part replaces 420611492. |
| 26 | 420431340 | Piston Lining |
| 27 | 420656260 | Hydraulic Piston |
| 28 | 420440291 | SOCKET HEAD SCREW M4 X 12 - Call your local BRP dealership |
| 30 | 420650636 | Gasket This part replaces 420650635. |
| 31 | 420256548 | Solenoid Valve |
| 32 | 420256562 | Solenoid Valve |
| 33 | 420256553 | Solenoid Valve |
| 34 | 420650630 | SOLENOID VALVE GASKET - Call your local BRP dealership |
| 35 | 420257890 | Gear Shift Rod |
| 36 | 420229050 | Guide Pin |
| 37 | 420260940 | Gasket Ring |
| 38 | 420245270 | Circlip |
| 39 | 420651490 | Ball Joint |
| 40 | 232061414 | Hex. Nut M6 |
| 41 | 420866717 | CLAMP - Call your local BRP dealership |
| 42 | 420460670 | Bellow |
| 43 | 420431270 | Gasket |
| 44 | 420651505 | Ball End |
| 45 | 205062544 | Socket Head Screw M6 X 25 |
| 46 | 420257881 | Gear Shift Lever |
| 47 | 420256671 | Oil Pump Rotor, Pressure This part replaces 420256670. |
| 48 | 420620710 | Oil Pump Shaft |
| 49 | 420232731 | Needle Pin This part replaces 420232730. |
| 50 | 420831160 | O-Ring |
| 51 | 420612140 | Oil Pump Cover |
| 52 | 420241237 | Socket Head Screw M6 x 16 This part replaces 420241236. |
| 53 | 420627345 | THRUST WASHER - Call your local BRP dealership |
| 54 | 420232431 | Needle Pin This part replaces 420232430. |
| 55 | 420434610 | Oil Pump Gear, 25 Teeth |
| 56 | 420434601 | Oil Pump Gear, 24 Teeth |
| 57 | 420945870 | CIRCLIP - Call your local BRP dealership |
| 58 | 420632640 | NEEDLE BEARING - Call your local BRP dealership |
