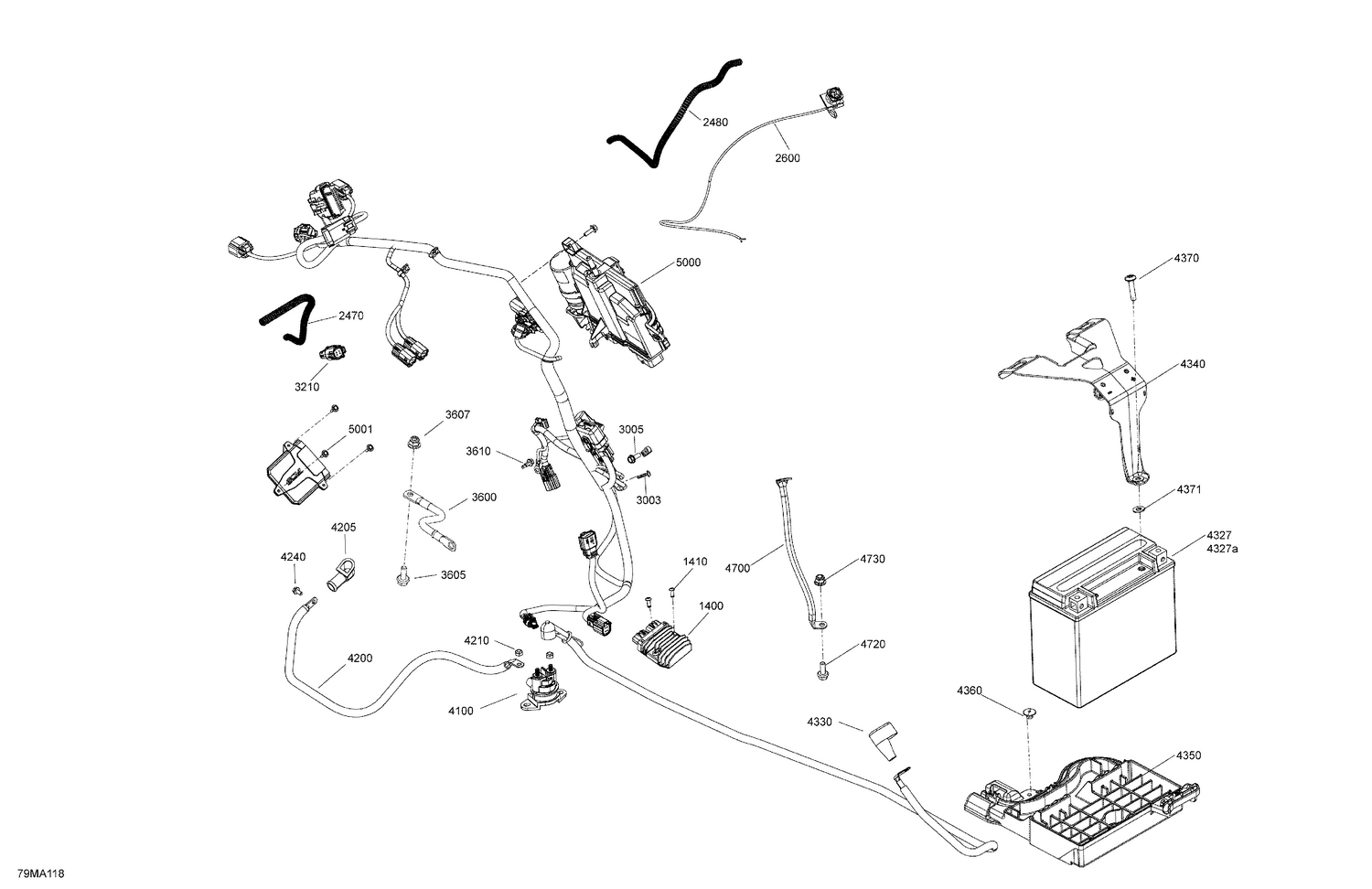

08- Electric - Lower Section
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1400 | 710010539 | Voltage Regulator This part replaces 710005569. |
| 1410 | 293150182 | Monobolt Rivet 6.4 |
| 2470 | 515178885 | Sheath Corrugated 9 MM ID |
| 2480 | 515178885 | Sheath Corrugated 9 MM ID |
| 2600 | 515177931 | Emergency Stop Switch |
| 3003 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 3005 | 250001062 | Hex. Flange Screw M6 X 16 |
| 3210 | 515178177 | BLoc Femelle 4 Circuits |
| 3600 | 515178248 | Ground Wire |
| 3605 | 207662044 | Hex. Flange Screw M6 X 20 |
| 3607 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 3610 | 250000911 | Hex. Flange Screw M5 X 16 |
| 4100 | 278003012 | Starter Relay |
| 4200 | 515178919 | Positive Cable |
| 4205 | 710000495 | Protector Cap |
| 4210 | 232561434 | Elastic Stop Nut M6 |
| 4240 | 207551044 | Hex. Flange Screw M5 X 10 |
| 4327a | 250000282 | Battery Bolt Kit |
| 4330 | 710001817 | Protector Cap |
| 4340 | 515178695 | Battery Strip |
| 4350 | 515178690 | Battery Support Under |
| 4360 | 293150103 | Pop Rivet 3/16" |
| 4370 | 250000843 | Torx Truss Screw M6 X 30 |
| 4371 | 224061121 | Flat Washer |
| 4700 | 515178564 | Cable |
| 4720 | 207661644 | Hex. Flange Screw M6 X 16 |
| 4730 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 5000 | 515179453 | ECM Module This part replaces 515178637. |
