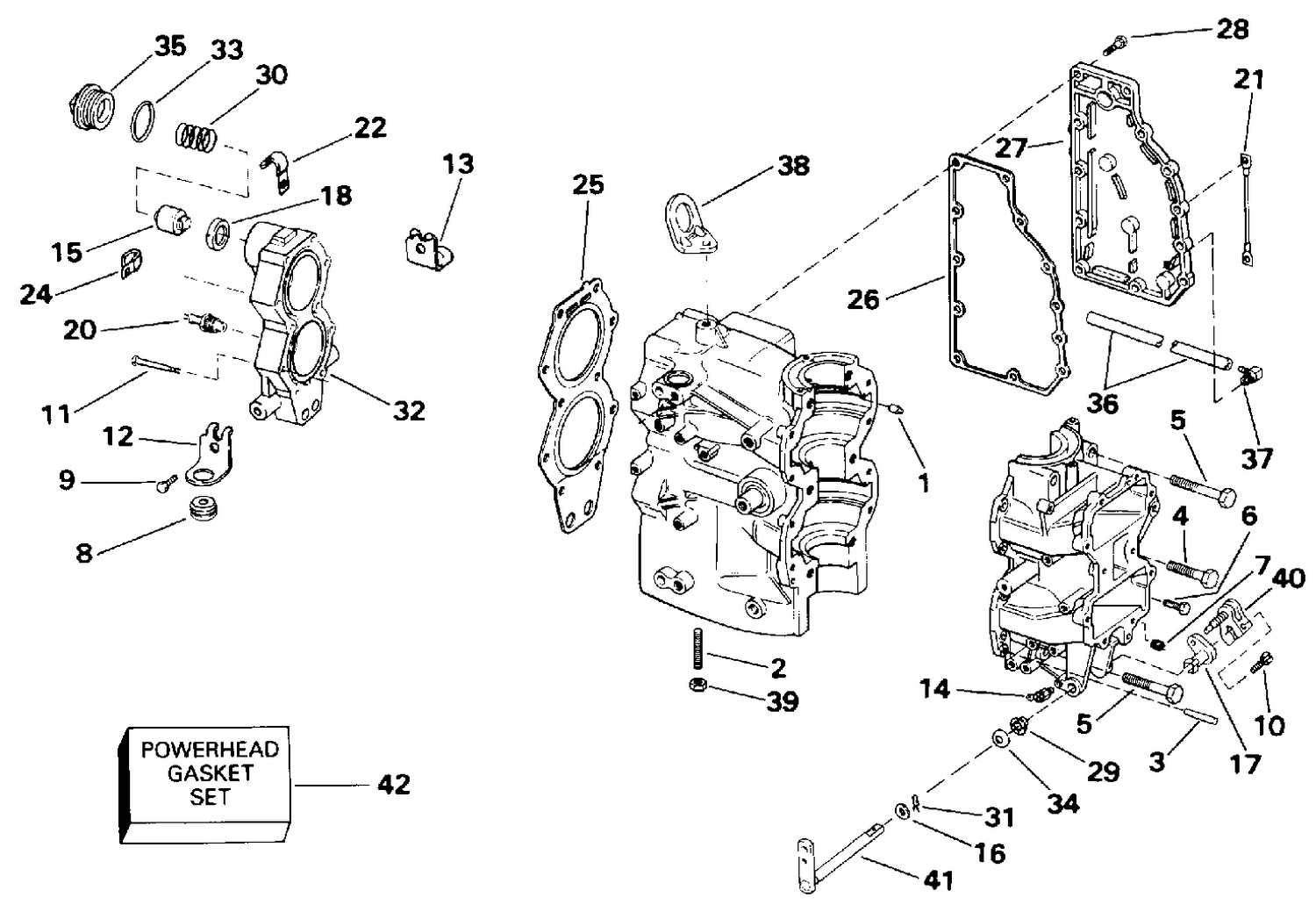

| Ref | Part Number | Description |
|---|
| 8 |
0337505 |
GROMMET, Bracket |
| 9 |
0306539 |
BOLT, Distributor |
| 10 |
0328695 |
CLAMP, Engine cable This part replaces 0323480. |
| 11 |
0322323 |
SCREW |
| 12 |
0337504 |
BRACKET, Cyl. head to lower cover, starboard |
| 13 |
0337503 |
BRACKET, Cyl. head to lower cover, port |
| 15 |
0433379 |
THERMOSTAT |
| 16 |
0202026 |
LOCK WASHER, Stud |
| 17 |
0331765 |
BUSHING & ROD KEEPER |
| 18 |
0334742 |
GASKET, Thermostat |
| 20 |
0432424 |
SPARK PLUG , QL16V |
| 20 |
0502894 |
SPARK PLUG, Champion, L16V This part replaces 0433627. |
| 21 |
0584472 |
ENSEMBLE FILS, masse |
| 22 |
0330151 |
CLAMP, Harness to oil tank boss |
| 24 |
0310441 |
CLAMP, CPS lead |
| 25 |
0335359 |
GASKET, Cylinder head |
| 26 |
0325211 |
GASKET |
| 27 |
0437506 |
COVER & PLUG Assy, Water passage This part replaces 0433561. |
| 29 |
0312708 |
BUSHING |
| 30 |
0331186 |
SPRING |
| 32 |
0336428 |
CYLINDER HEAD |
| 33 |
0331188 |
O-Ring |
| 34 |
0306012 |
BOW WASHER |
| 35 |
0332944 |
COVER, Thermostat |
| 36 |
0327721 |
HOSE, Elbow to tee |
| 38 |
0326023 |
LIFT BRACKET |
| 39 |
0316355 |
BUT, Carburetor mounting This part replaces 0315204. |
| 40 |
0396831 |
LEVER SHIFT ROD |
| 41 |
0396832 |
SHIFT LEVER |
| 0396913 |
0396913 |
CYLINDER & C'CASE ASSY. |
