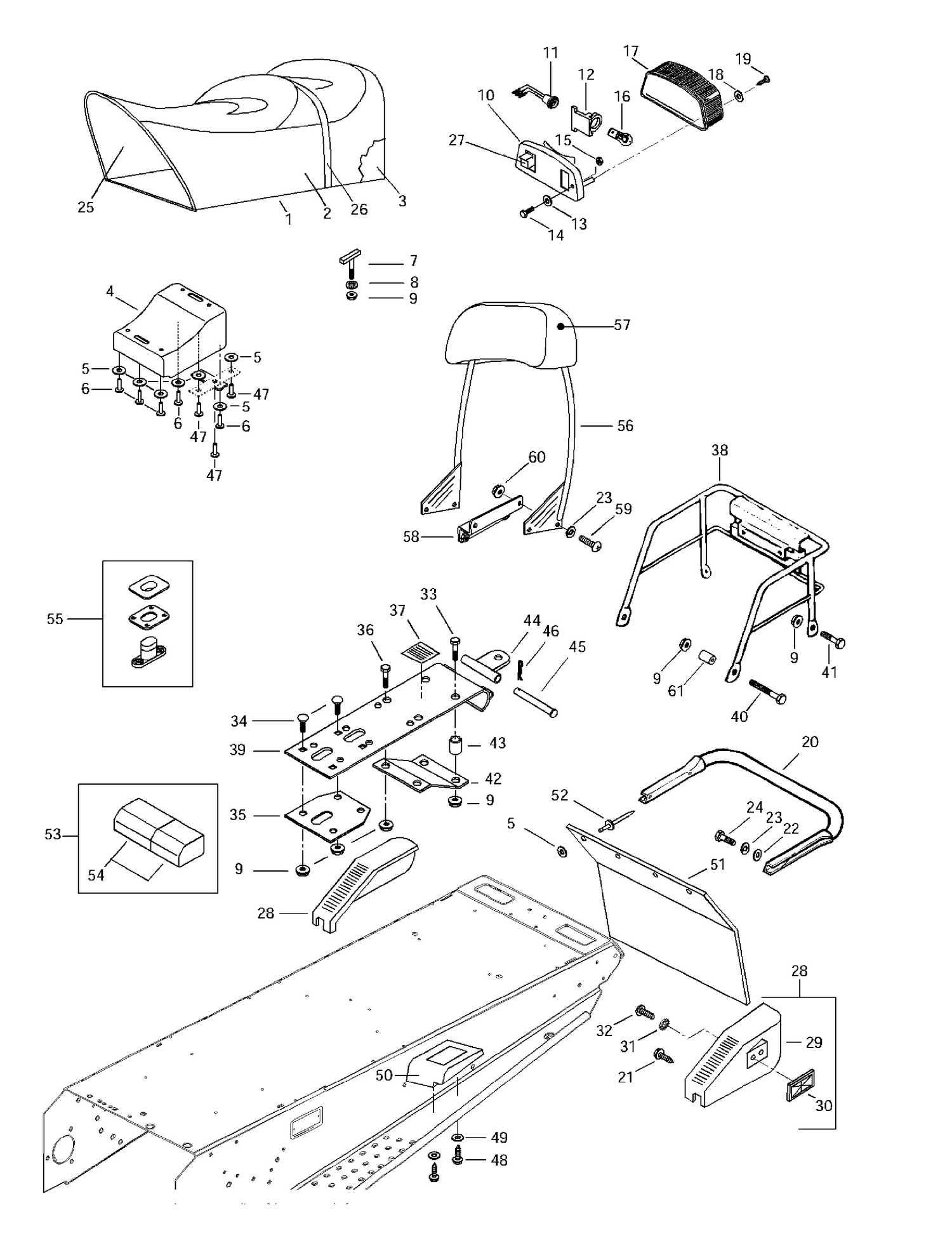

09- Seat And Accessories

09- Seat And Accessories

Parts (60)

RefPart NumberDescription
1 Not Available As Spare Part - Seat Ass'y (2 pass.)
2 415037003 Seat Cover(2 pass.)
3 414924600 Foam Seat(2 pass.)
4 572051200 Rear Trunk
5 517225900 Flat Washer
6 390906800 Pop Rivet 3/16"
8 732610072 Push Nut
9 233261414 Hex. Flange Elastic Nut M6 x 1.0 This part replaces 228761045.
11 414979410 Socket
12 414979411 Rubber Damper
13 250200081 FLAT WASHER - Call your local BRP dealership This part replaces 391301700.
14 207053044 Hex. Screw M5 X 30 This part replaces 222053065.
15 233251434 Flange Elastic Nut M5 This part replaces 228751045.
16 520000758 Bulb This part replaces 410504000.
17 414513700 Lens
18 414516400 Washer - Call your local BRP dealership
19 209632540 Phillips Tapping Screw M3.9 X 25 This part replaces 732601253.
20 517243800 Rear Bumper
21 365901100 HEX. SCREW 12 X 3/4 - Call your local BRP dealership
22 234081410 Flat Washer 8 mm This part replaces 224081171.
23 234181401 Lock Washer 8 mm This part replaces 224781140.
24 207182044 Hex. Screw M8 X 20 This part replaces 222082065.
25 572059600 Sub-Seat
26 414943300 Belt-Seat
27 572150800 Block Dimmer Switch
29 572059500 RH Moulding
30 414510100 REFLECTOR, RED - Call your local BRP dealership
31 224151101 WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership
32 208651041 PHILLIPS SCREW M5 X 10 - Call your local BRP dealership This part replaces 222851065.
33 207065044 HEX. CAP SCREW M6 X 50 - Call your local BRP dealership This part replaces 222065065.
34 207762044 Carriage Bolt M6 X 20 This part replaces 222262065.
35 517256100 Inner Plate
36 207161844 Hex. Screw M6 X 18 This part replaces 222061865.
37 414998500 Instruction Label (Hitch)
38 517273100 Rack
39 517275200 Hitch Bracket
40 207064044 Hex. Screw M6 X 40 This part replaces 222064065.
41 207162044 Hex. Screw M6 X 20 This part replaces 222062065.
42 517223500 Reinforcement
43 517191700 SPACER - Call your local BRP dealership
44 511000521 Hitch Plate Welded This part replaces 517008700.
45 505001700 CLEVIS PIN - Call your local BRP dealership
46 371800200 Cotter Pin
47 293150104 Pop Rivet 3/16" This part replaces 390409600.
48 365901100 HEX. SCREW 12 X 3/4 - Call your local BRP dealership
49 224061121 Flat Washer
50 414975300 RH Rear Footrest
51 572059700 Snow Guard
52 293150100 Pop Rivet 3/16" This part replaces 390908000.
54 708200043 TOOLS BOX - Call your local BRP dealership This part replaces 572036310.
55 414728000 SEAT BUCKLE - Call your local BRP dealership
56 415036800 Backrest Ass'y
57 415036803 Backrest Cover
59 236282084 Hex. Screw M8 X 20 This part replaces 732601250.
60 233281414 Hex. Flange Elastic Nut M8 This part replaces 228781045.
414975400 LH Rear Footrest 414975400
414975400 Rep. Pied Arrière GA 414975400
572059400 Enjoliveur GA 572059400
572059400 LH Moulding 572059400
580642900 LH Moulding Ass'y (Cargo) 580642900
