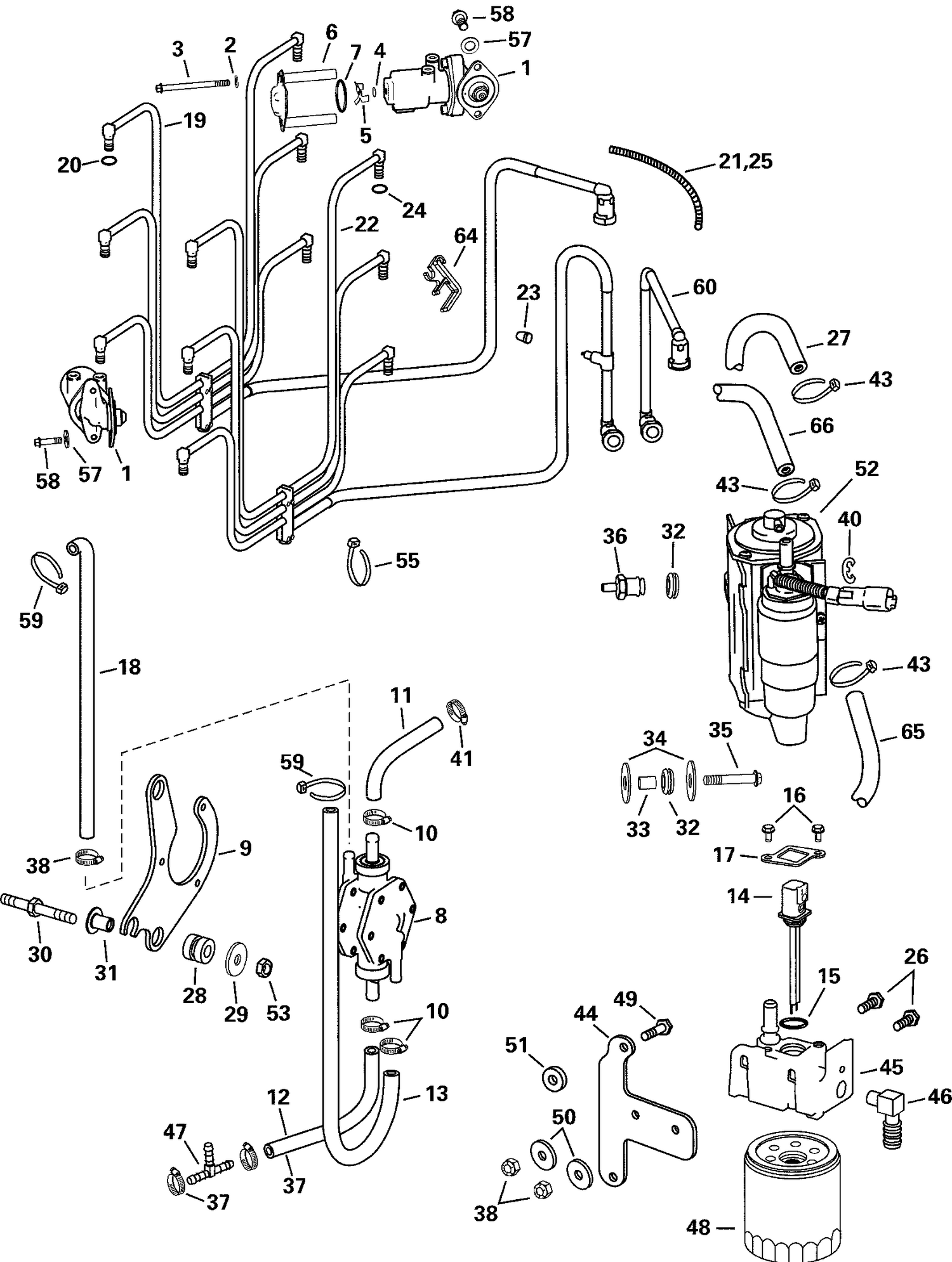

| Ref | Part Number | Description |
|---|
| 6 |
5004596 |
Kit Ay This part replaces 5001719. |
| 8 |
5010025 |
Pump Ay This part replaces 5000885. |
| 10 |
0343765 |
COLLIER, flexible d'indicateur d’éjection |
| 19 |
5004514 |
MANIFOLD ASSY., Fuel feed |
| 30 |
0345707 |
STUD |
| 33 |
0335328 |
SCREW, Connector |
| 37 |
0340328 |
CLAMP |
| 39 |
0343765 |
COLLIER, flexible d'indicateur d’éjection |
| 40 |
0510487 |
RETAINING RING |
| 41 |
0340328 |
CLAMP |
| 43 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 44 |
0345169 |
BRACKET, Filter housing to c/c |
| 45 |
5004686 |
Kit Ay This part replaces 0439970. |
| 46 |
3853598 |
ELBOW, Hose to reservoir This part replaces 0915946. |
| 47 |
0345701 |
FITTING, Fuel to Oil tee |
| 48 |
5012363 |
Filter Ay This part replaces 0502906. |
| 51 |
0345756 |
SPACER, Bracket lift pump to c/c |
| 52 |
5004429 |
RESERVOIR & PUMP This part replaces 0439712. |
| 59 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 60 |
0439947 |
CONNECTOR & TUBE Assy, Filter |
| 64 |
0346921 |
CLAMP, Fuel tubes |
