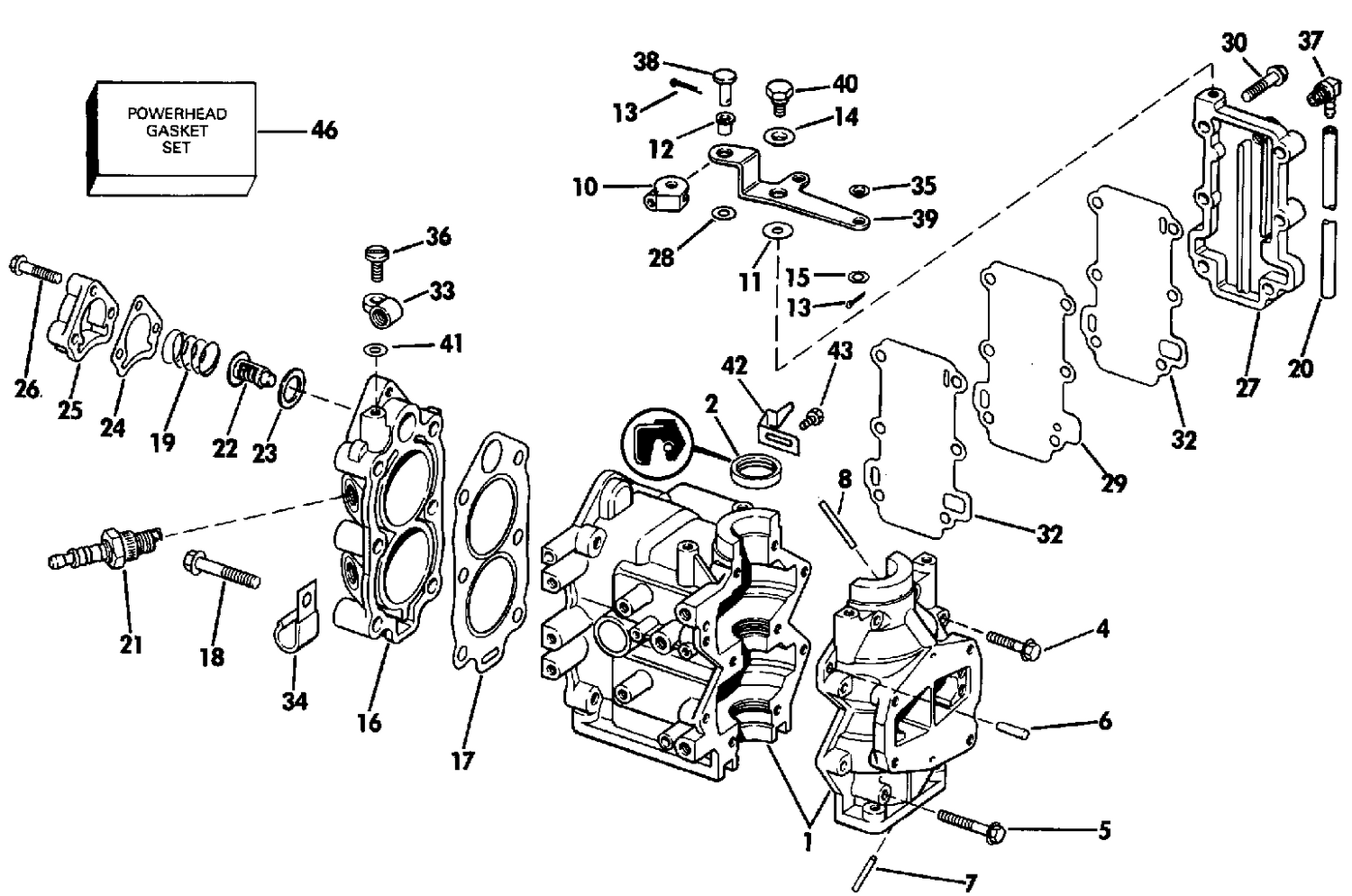

| Ref | Part Number | Description |
|---|
| 1 |
0395884 |
CYLINDER & C'CASE ASSY. |
| 1 |
0396776 |
CYLINDER & C'CASE ASSY. 6 |
| 4 |
0314951 |
SCREEN, Mfld. to c'case |
| 10 |
0330533 |
YOKE, Throttle lever |
| 12 |
0330532 |
BUSHING, Yoke to lever |
| 14 |
0325542 |
BUSHING |
| 16 |
0327444 |
CYLINDEER HEAD |
| 16 |
0328994 |
CYLINDER HEAD |
| 17 |
0325273 |
GASKET, Cylinder head |
| 18 |
0319226 |
SCREW, Cylinder head |
| 19 |
0328051 |
SPRING, Pressure release |
| 20 |
0328388 |
HOSE, Indicator |
| 21 |
0386941 |
SPARK PLUB,Champion L77J4 |
| 21 |
0432424 |
SPARK PLUG , QL16V |
| 21 |
0502180 |
SPARK PLUG, Champion QL77JC4 This part replaces 0387633. |
| 22 |
5005440 |
THERMOSTAT This part replaces 0393659. |
| 23 |
0329319 |
GASKET, Thermostat |
| 24 |
0329076 |
GASKET, Thermostat cover |
| 25 |
0330072 |
CAP, Thermostat |
| 27 |
0327259 |
EXHAUST COVER, Outer |
| 29 |
0327258 |
EXHAUST COVER, Inner |
| 29 |
0329048 |
EXHAUST COVER, Inner |
| 30 |
0307471 |
SCREW |
| 30 |
0314951 |
SCREEN, Mfld. to c'case |
| 32 |
0325271 |
GASKET Cover |
| 32 |
0329080 |
GASKET, Cover 8 models |
| 33 |
0324685 |
CONNECTOR, Cable to control shaft |
| 34 |
0310947 |
CLAMP |
| 35 |
0307841 |
BUSHING, Control lever |
| 36 |
0326618 |
SCREW, Clamp |
| 39 |
0325310 |
LEVER, Throttle advance |
| 40 |
0325291 |
SCREW, Lever to cover |
| 42 |
0331783 |
STOP, Idle spark |
| 43 |
0329594 |
SCREW, Cam follower |
| 46 |
0395743 |
POWERHEAD GASKET SET |
