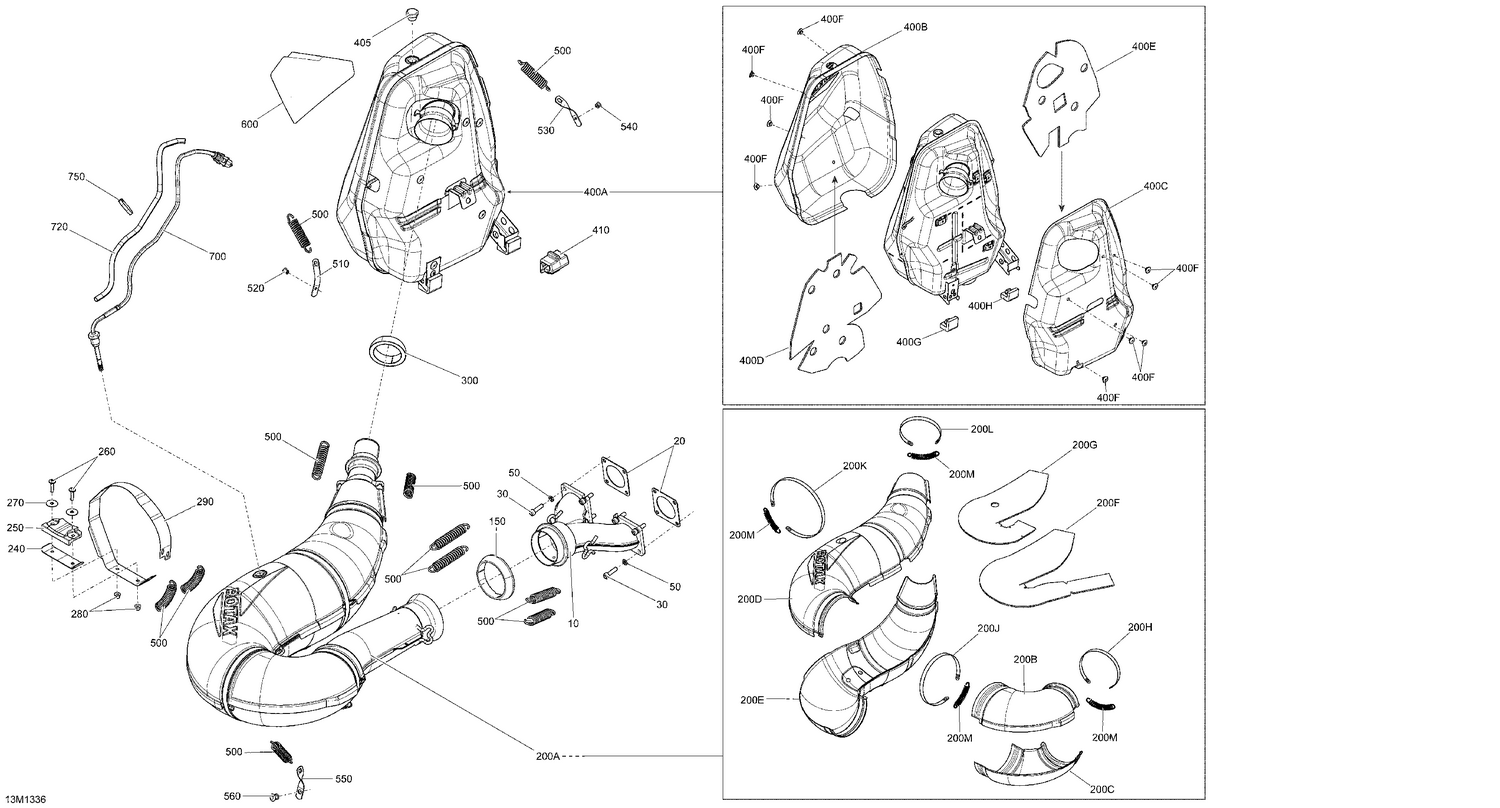

01- Exhaust System
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 420673422 | EXHAUST MANIFOLD - Call your local BRP dealership |
| 20 | 420850552 | Gasket |
| 30 | 250001077 | Socket Head Screw Scotch Grip M6 X 20 This part replaces 514054626. |
| 50 | 514053953 | Washer |
| 150 | 514053487 | Exhaust Gasket |
| 200B | 514054992 | Front Upper Half Enveloppe |
| 200C | 514054993 | Front Lower Half Enveloppe |
| 200D | 514055067 | REAR UPPER HALF ENVELOPPE - Call your local BRP dealership This part replaces 514054995. |
| 200E | 514054990 | Rear Lower Half Enveloppe |
| 200F | 514054487 | Insulating Wool |
| 200G | 514054553 | INSULATING WOOL - Call your local BRP dealership |
| 200H | 514054408 | Retaining Strap |
| 200J | 514054409 | Retaining Strap |
| 200K | 514054410 | Retaining Strap |
| 200L | 514053499 | Retaining Strap |
| 200M | 514053643 | Spring |
| 240 | 514054638 | Reinforcement Plate |
| 250 | 514054275 | Bumper |
| 260 | 250000724 | Torx Screw M5 X 20 This part replaces 250000130. |
| 270 | 224060201 | Flat Washer |
| 280 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 290 | 514054637 | RETAINING STRAP - Call your local BRP dealership |
| 300 | 514053812 | Exhaust Gasket |
| 400B | 514054986 | RH DEFLECTOR - Call your local BRP dealership |
| 400C | 514054967 | LH Deflector |
| 400D | 514054711 | RH Insulating Wool |
| 400E | 514054299 | LH Insulating Wool |
| 400F | 390910000 | Pop Rivet 3/16” |
| 400G | 514054274 | Lower Stopper |
| 400H | 514054496 | Lower Stopper |
| 405 | 250100074 | Hexagonal Head Pipe Plug M14 |
| 410 | 514054606 | Upper Stopper |
| 500 | 415107100 | Spring |
| 510 | 514054974 | Spring Bracket, 5mm hole |
| 520 | 390402200 | Pop Rivet 3/16" |
| 530 | 514054974 | Spring Bracket, 5mm hole |
| 540 | 390402200 | Pop Rivet 3/16" |
| 550 | 514054975 | Spring Bracket, 8.0mm hole |
| 560 | 293150266 | Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 600 | 514054488 | Reflective Sheet |
| 700 | 514054856 | Temperature Sensor |
| 720 | 219704425 | Tubing 6 Mm 3000Mm Long |
