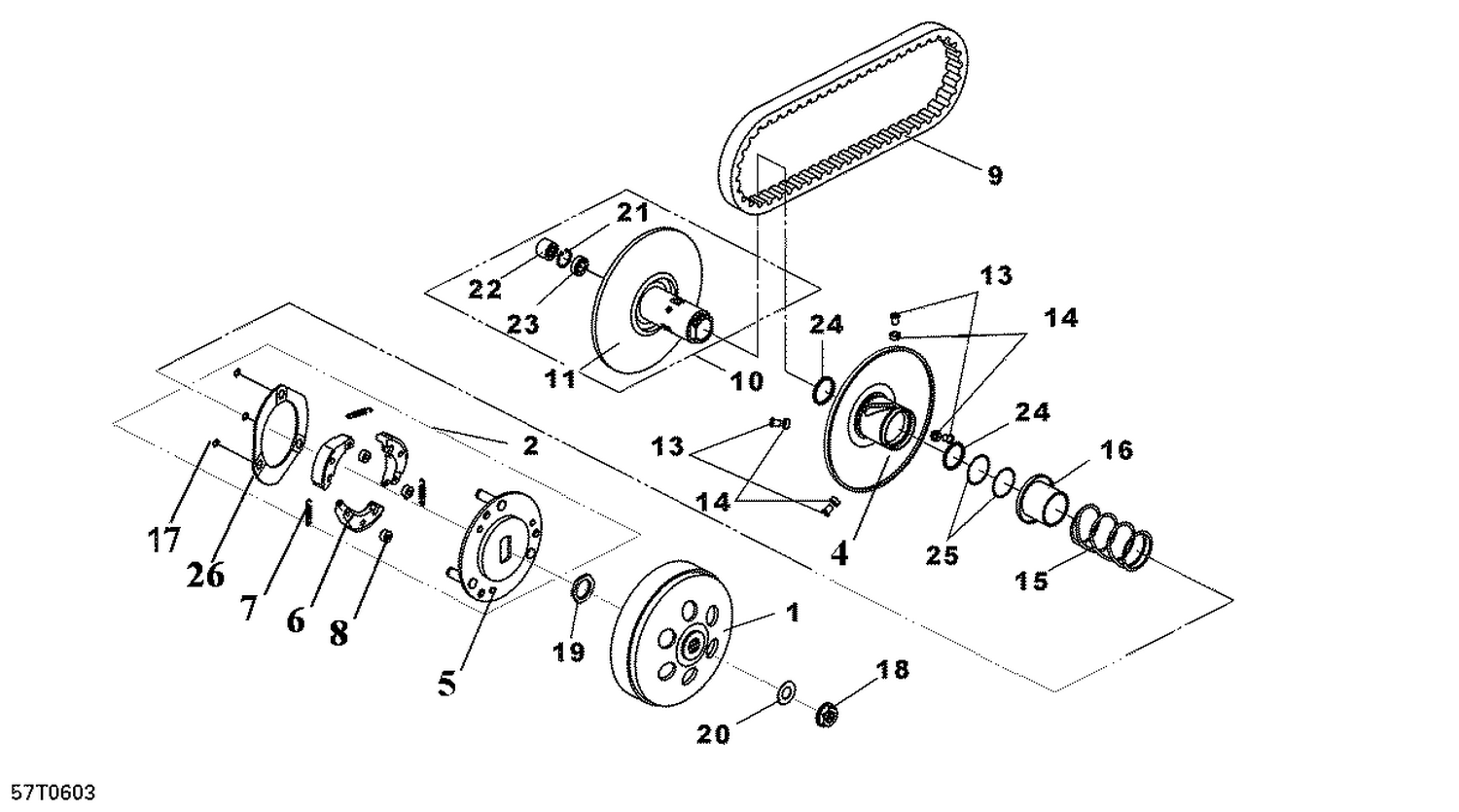

05- Driven Pulley
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | S22101HMA000 | Outer Clutch |
| 2 | S22300HMB000 | Drive Plate This part replaces S22300RB1000. |
| 4 | S23220HMA000 | Movable Flange |
| 5 | NASP/NDPR | Not Available As Spare Parts |
| 6 | NASP/NDPR | Not Available As Spare Parts |
| 7 | NASP/NDPR | Not Available As Spare Parts |
| 8 | NASP/NDPR | Not Available As Spare Parts |
| 9 | S23100RB1000 | Drive Belt |
| 10 | NASP/NDPR | Not Available As Spare Parts |
| 11 | S23210HMA000 | Fix Flange |
| 13 | S23225HMA000 | Pin |
| 14 | S23226HMA000 | Guide Roller |
| 15 | S23233HMA000 | Driven Pulley Spring |
| 16 | S23237HMA000 | Seal Collar |
| 17 | NASP/NDPR | Not Available As Spare Parts |
| 18 | S90201KR8751 | NUT FLANGE - Call your local BRP dealership |
| 19 | S90202HMA000 | Special Nut |
| 20 | S90401KJ9000 | Thrust Washer |
| 21 | S90602HMA000 | Circlip |
| 22 | S91006HMA300 | Needle Bearing |
| 23 | S91007HMA300 | Bearing |
| 24 | S91211HMA000 | Oil Seal |
| 25 | S91305HMA000 | O-ring |
