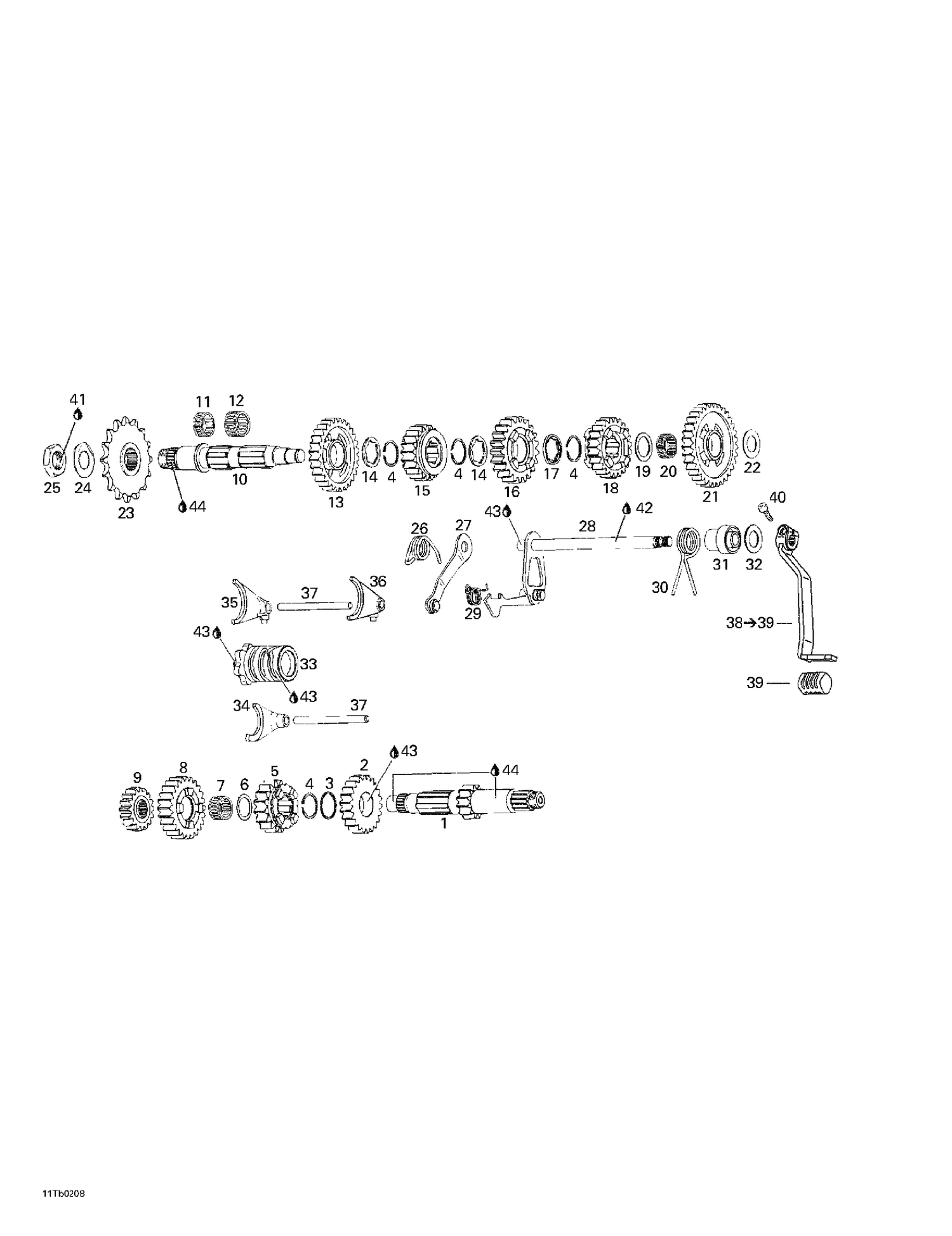

05- Transmission
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 711220230 | Clutch Shaft (12 Teeth) |
| 2 | 711234715 | Intermediate Gear (21 Teeth) |
| 3 | 711227825 | Thrust Washer |
| 4 | 420445302 | Circlip This part replaces 420445300. |
| 5 | 711634333 | Pinion Gear (18 Teeth) |
| 6 | 711227445 | Thrust Washer |
| 7 | 711232805 | Needle Bearing |
| 8 | 711234725 | Intermediate Gear (23 Teeth) |
| 9 | 711234675 | Pinion Gear (15 Teeth) |
| 10 | 711220730 | Main Shaft |
| 11 | 420232520 | NEEDLE BEARING - Call your local BRP dealership This part replaces 711232520. |
| 12 | 420232530 | Needle Bearing This part replaces 711232530. |
| 13 | 711634305 | Intermediate Gear (29 Teeth) |
| 14 | 711627051 | Thrust Ring |
| 15 | 711634345 | Pinion Gear (22 Teeth) |
| 16 | 711234705 | Intermediate Gear (26 Teeth) |
| 17 | 711627061 | Angular Ring |
| 18 | 711634355 | Pinion Gear (24 Teeth) |
| 19 | 711244100 | Thrust Washer |
| 20 | 420232742 | Needle Bearing This part replaces 711232742. |
| 21 | 711634290 | Gear (33 Teeth) |
| 22 | 420227430 | THRUST WASHER - Call your local BRP dealership This part replaces 711227430. |
| 23 | 711236470 | Chain Wheel |
| 24 | 420245391 | Tab Washer This part replaces 711245391. |
| 25 | 420242656 | Ecrou Hex.M20 *Nut-Hex.M20 This part replaces 711242651. |
| 26 | 711239095 | Index Spring |
| 27 | 711248346 | Index Lever |
| 28 | 711237929 | Shift-Shaft |
| 29 | 711239075 | Spring |
| 30 | 711239082 | Spring |
| 31 | 711247900 | Spacer |
| 32 | 420227430 | THRUST WASHER - Call your local BRP dealership This part replaces 711227430. |
| 33 | 711258275 | Drum-Shift |
| 34 | 711258037 | Fork-Shift |
| 35 | 711258027 | Fork-Shift |
| 36 | 711258017 | Fork-Shift |
| 37 | 711258782 | Fork Spindle |
| 39 | 711260205 | Rubber Sleeve |
| 40 | 205062044 | Socket Head Screw M6 X 20 |
| 41 | 293800060 | Loctite 243, 10 ml |
| 42 | 293550030 | Grease, Super Lube This part replaces 293550014. |
| 43 | Not | Available As Spare Part - Engine Oil, Mineral, API SJ SAE 10W40 |
